Nuvotem Talema Toroidal Transformer 230 V ac Primary, 2 x 35 V ac Secondary 10 A, 500 VA 136mm Diameter 64.7mm 0500P1-2-035K

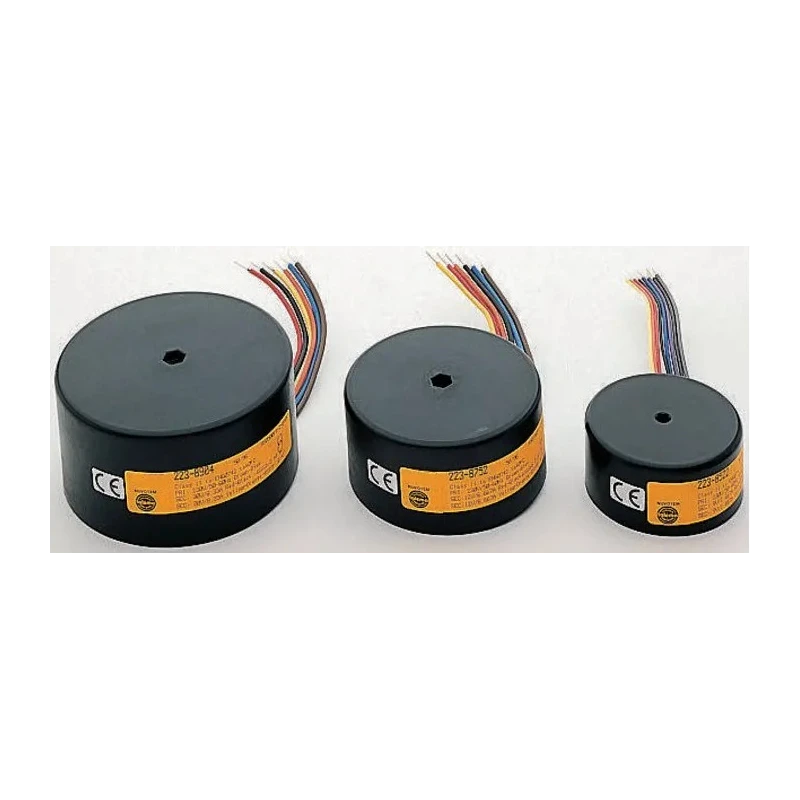

Nuvotem Talema 0500P1-2-035K Toroidal Transformer features a 230 V ac single primary winding and twin secondary windings rated at 2 x 35 V ac and 10 A current providing a power rating of 500 VA. Designed for efficient power transfer with encapsulated construction, this transformer is compact, measuring 136 mm in diameter and 64.7 mm in height, with a weight of approximately 3.8 kg.

The transformer’s case is made from UL94-V0 rated Nylon 6.6 material ensuring flame retardancy and durability. It operates effectively across a frequency range of 50 Hz to 60 Hz and withstands high operating temperatures up to 180°C, suitable for demanding industrial environments.

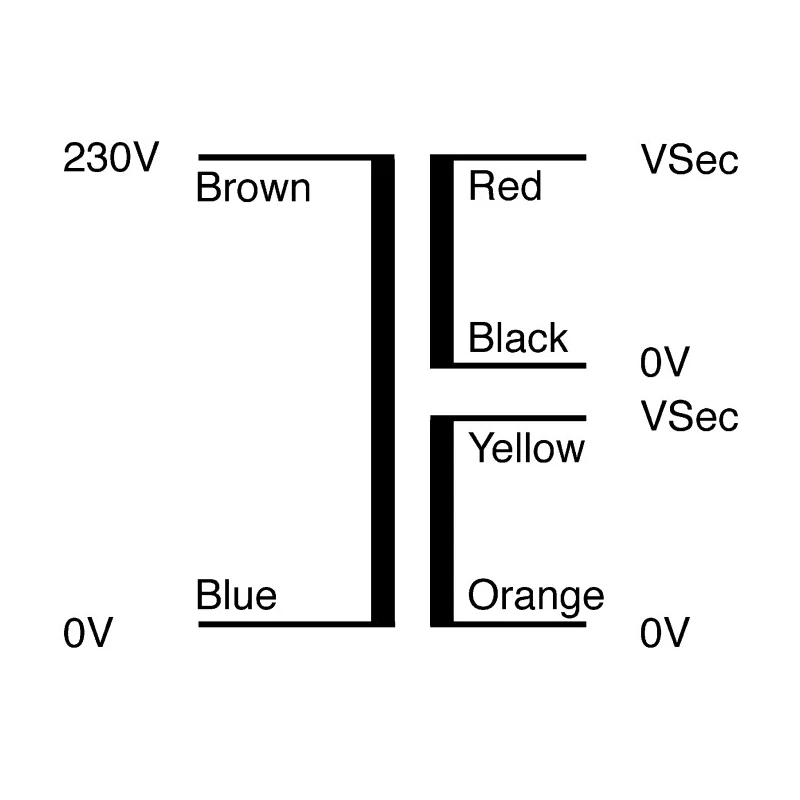

Its solid copper conductor terminals are insulated with PVC for secure and reliable electrical connections. The dual secondary windings can be used independently or connected in series or parallel, providing flexibility in application.

This model complies with multiple international standards such as EN60065, VDE0550, EN61558, UL5, UL506, and BS415, endorsing high safety and quality benchmarks.

Key industrial use cases include power supplies for electronic equipment, laboratory instrumentation, HVAC systems, manufacturing devices, and other commercial electrical applications requiring low noise and magnetic interference.

Two secondary outputs delivering 10 A current each for versatile power distribution. Encapsulated design enhances protection from environmental factors. Low radiated magnetic field and minimized acoustic noise improve operational performance.

Double insulated primary leads and guaranteed electrical safety testing ensure reliability. Compact form factor supports easy mounting via center hole fixing (fixing bolt not included).
