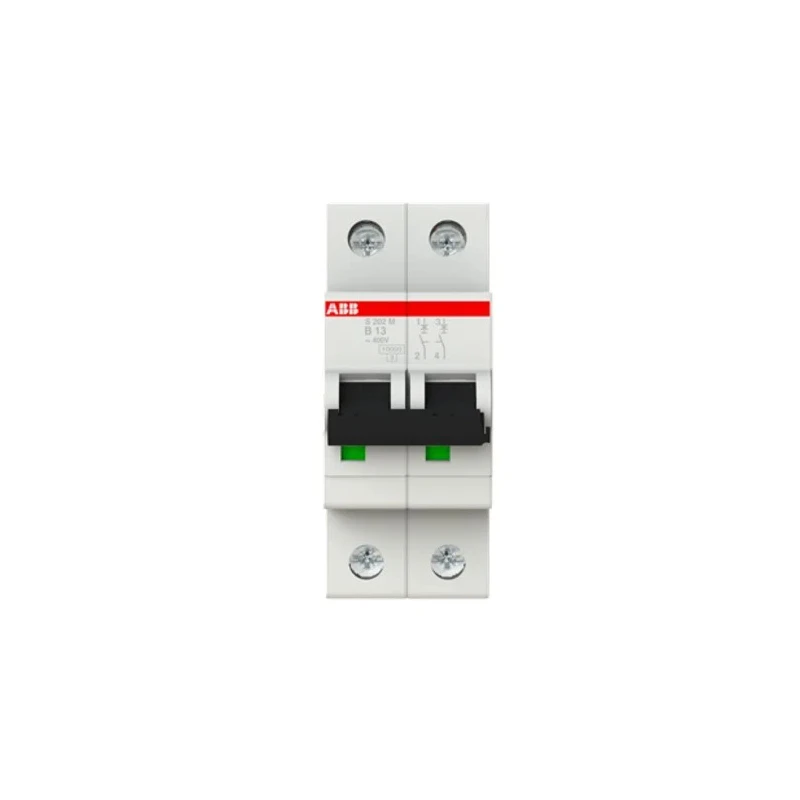

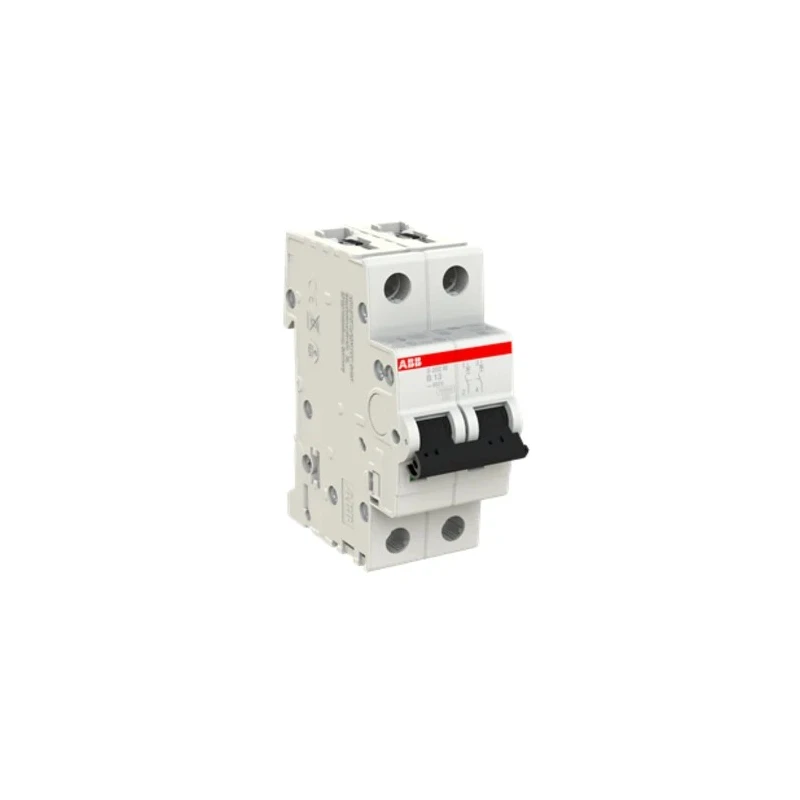

ABB System Pro M Compact Miniature Circuit Breaker 2-Pole 13A Type B 440V AC 125V DC 10kA Breaking 2CDS272001R0135 S202M-B13

Free Delivery in India | Lowest Global Shipping Charges

ABB System Pro M Compact Miniature Circuit Breaker 2-Pole 13A Type B 440V AC 125V DC 10kA Breaking 2CDS272001R0135 S202M-B13



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	88mm
Model	2CDS272001R0135 S202M-B13
Depth	76mm
IP Rating	IP20, IP40
Width	35mm
Mount Type	DIN Rail
Current Rating	13A
Series	S200M
Terminal type	Cage Terminal
Breaking Capacity	10kA
Number of Poles	2
Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Rated AC Voltage	440V ac
Rated DC Voltage	125V dc
Tripping Characteristics	Type B
Better World Claim	Designed for Disassembly
Tripping Mechanism	Thermomagnetic, Electromagnetic
A Curve B	Tripping: 3 to 5 times the rated current

Key Features

Designed for DIN rail mounting with a compact width of 35mm.
Thermomagnetic and electromagnetic tripping mechanisms provide overload and short circuit protection.
Supports AC voltage of 440V and DC voltage of 125V.
High breaking capacity of 10 kA for safe fault interruption.
Twin cage terminals ensure secure and error-free wiring connections.
Type B tripping characteristic trips at 3 to 5 times the rated 13A current.
IP20 and IP40 rated for protection against solid objects and limited dust ingress.
Complies with IEC/EN 60898-1 and IEC/EN 60947-2 circuit breaker standards.

Product Description

ABB 2CDS272001R0135 S202M-B13 Miniature Circuit Breaker is part of the System Pro M Compact series, engineered for dependable electrical circuit protection in commercial, residential, and industrial environments. With a 2-pole configuration and a current rating of 13A, it safely manages circuit overloads and short circuits using a combined thermomagnetic and electromagnetic trip mechanism.

Featuring a compact width of 35mm and DIN rail mounting capability, this MCB optimizes installation space within panels. It supports both AC and DC voltages of 440V and 125V respectively, permitting versatile application across different systems.

The device provides a high breaking capacity of 10kA, which ensures swift disconnection during fault conditions, preventing damage to equipment and enhancing operator safety. Twin cage terminals offer secure, bi-directional wire connections minimizing installation errors.

Tripping characteristic type B allows the breaker to trip when the current reaches 3 to 5 times its rated load, suitable for standard lighting and general power distribution circuits.

The IP20 and IP40 ratings assure protection against access to hazardous parts and some level of dust ingress, making it reliable in typical electrical setups.

Certified to conform with IEC/EN 60898-1 and IEC/EN 60947-2 safety standards, this product carries a Better World designation due to its design for disassembly, emphasizing eco-friendly manufacturing and end-of-life recycling.

Applications include commercial lighting circuits, domestic distribution boards, IT networks, and low-voltage machinery protection. Designed for DIN rail mounting ensuring flexible installation. Thermomagnetic and electromagnetic trip mechanism for reliable circuit protection.

Dual AC and DC voltage support with high breaking capacity. Compact and space-saving 35mm width design. Type B tripping for quick response to overloads. Robust twin cage terminals for secure wiring. Standards compliance guarantees safety and performance.

Better World product with designed for disassembly feature for sustainability. Explore more in the Miniature Circuit Breakers category at EnvMart for trusted electrical circuit protection solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The breaking capacity of this model is 10kA, ensuring swift disconnection during fault conditions to prevent equipment damage.

It supports an AC voltage of 440V and a DC voltage of 125V, making it versatile for various applications.

This unit is designed for DIN rail mounting, optimizing installation space within electrical panels.

The dimensions of this model are 88mm in height, 76mm in depth, and 35mm in width.

The current rating of this device is 13A, suitable for managing circuit overloads.

It features Type B tripping characteristics, which means it trips at 3 to 5 times the rated current of 13A.

The tripping mechanism combines thermomagnetic and electromagnetic features, providing reliable overload and short circuit protection.

This model has an IP20 and IP40 rating, offering protection against solid objects and limited dust ingress.

It complies with IEC/EN 60898-1 and IEC/EN 60947-2 circuit breaker standards, ensuring safety and performance.

It features twin cage terminals, which provide secure and error-free wiring connections.

This model is suitable for applications including commercial lighting circuits, domestic distribution boards, IT networks, and low-voltage machinery protection.

The country of origin for this model is Germany.
