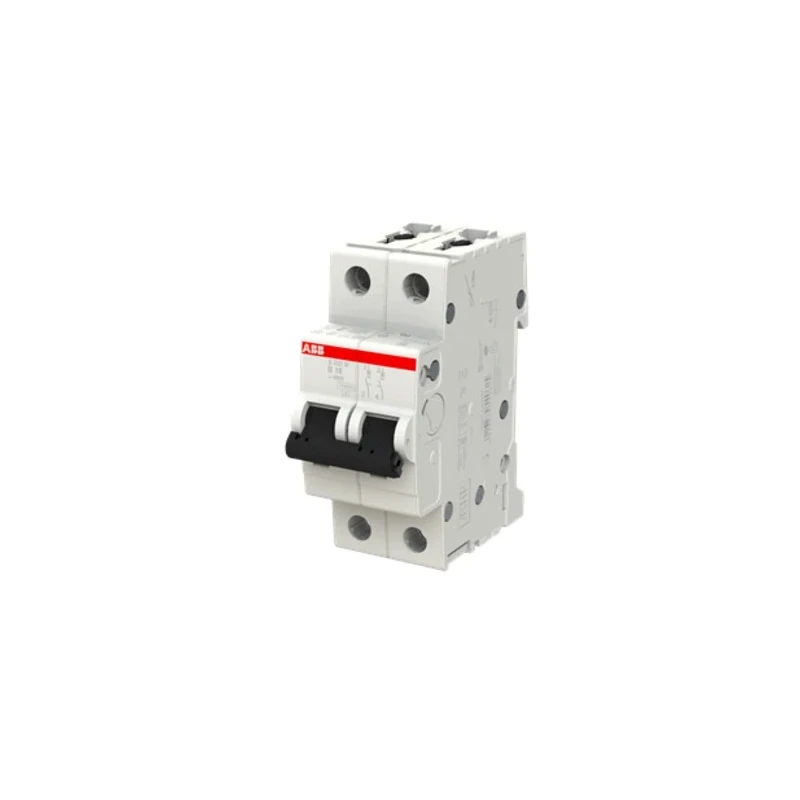

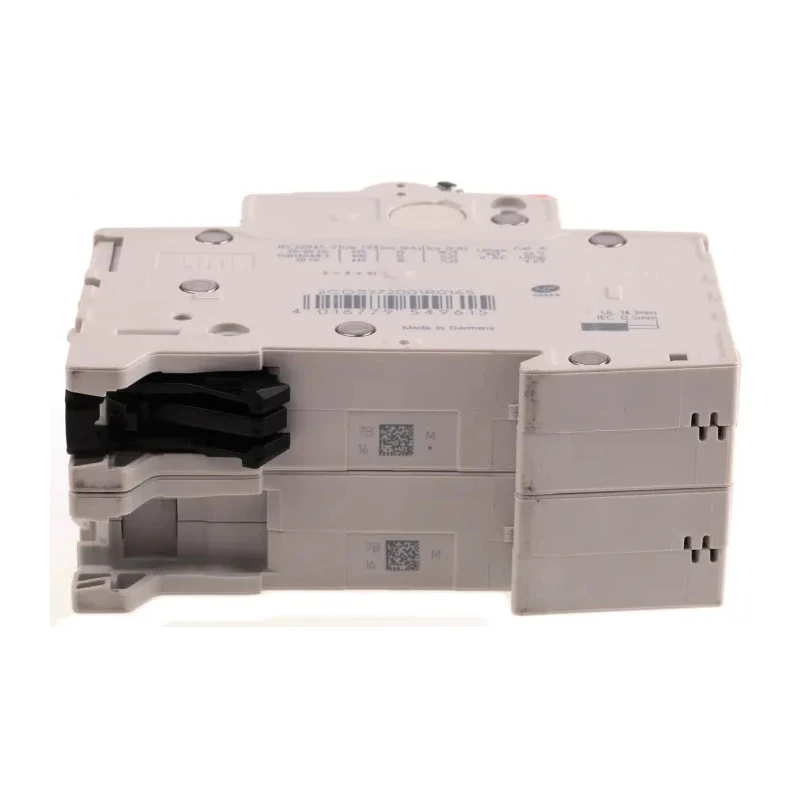

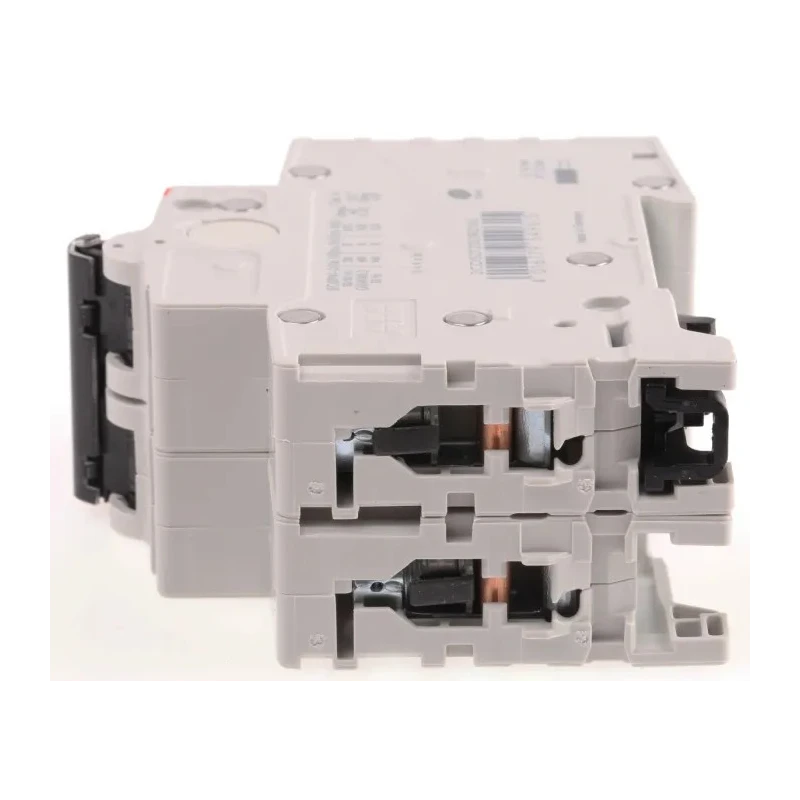

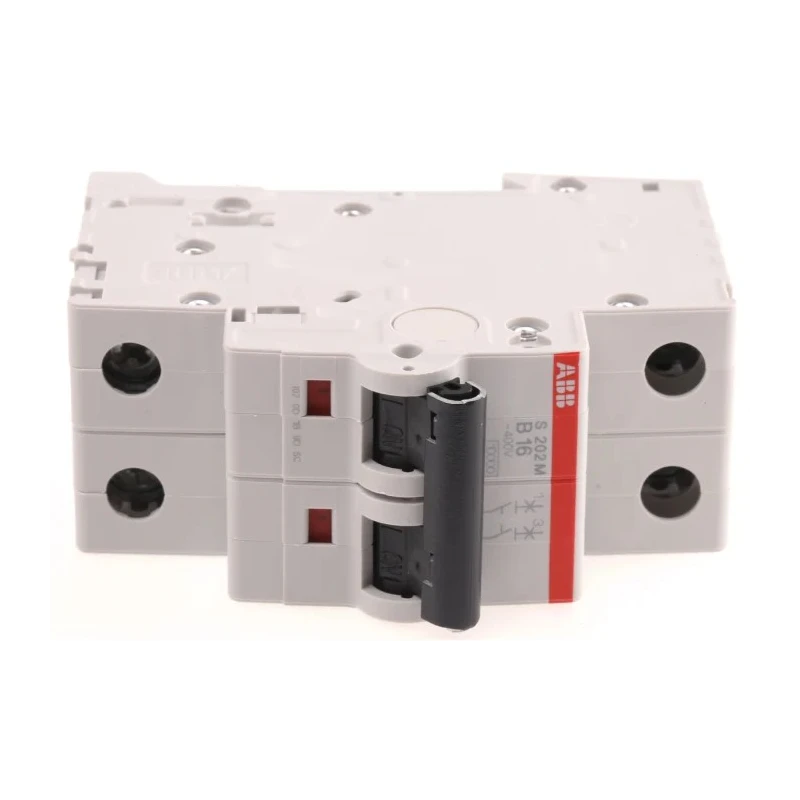

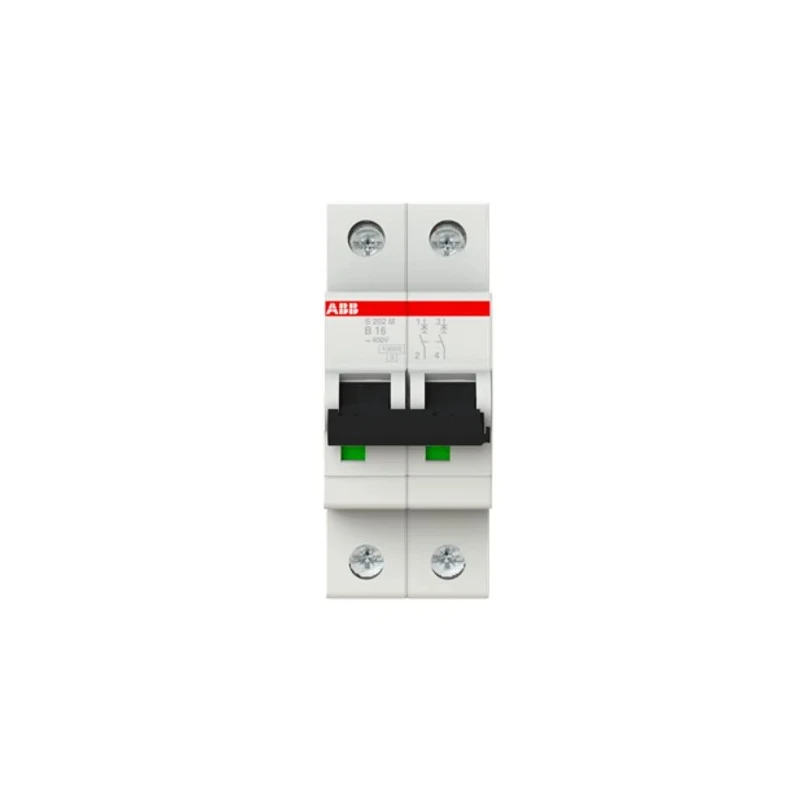

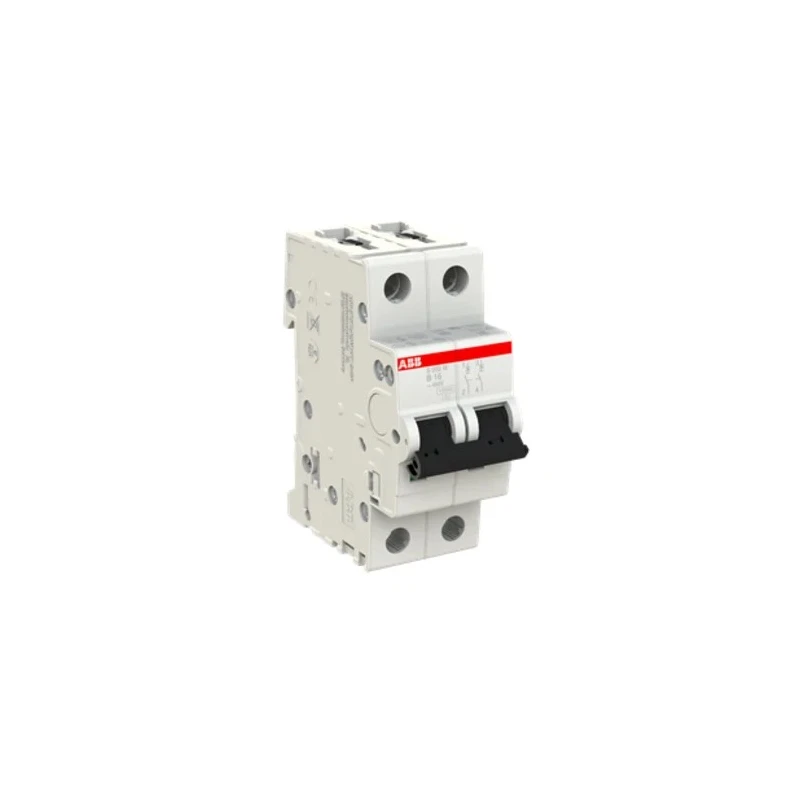

ABB Miniature Circuit Breaker 2-Pole, 16A Current Rating, Type B Tripping, 440V AC / 125V DC, 10kA 2CDS272001R0165 S202M-B16

ABB 2CDS272001R0165 S202M-B16 Miniature Circuit Breaker is a 2-pole device designed for effective short-circuit and overload protection in residential and commercial electrical installations. This breaker accommodates a current rating of 16A with type B tripping characteristics, making it suitable for protecting domestic appliances and low-voltage commercial circuits.

Featuring a breaking capacity of 10kA, this breaker ensures high safety levels by interrupting fault currents promptly. The thermomagnetic and electromagnetic tripping mechanism allows for instant tripping between 3 to 5 times the rated current, preventing damage to connected equipment.

With robust thermoplastic housing, it provides durability and electrical insulation, while its ability to withstand mechanical shocks up to 25g enhances its reliability in harsh environments. The product supports screw termination with cage terminals, simplifying wiring and maintenance efforts.

Compact dimensions of 88mm height, 35mm width, and 76mm depth enable installation in limited space setups on DIN rails. It comes with IP20 and IP40 ratings offering protection against solid objects and limited liquid ingress, enhancing device longevity.

This breaker complies with IEC/EN 60898-1 and IEC/EN 60947-2 industry standards, confirming its reliability and quality for various applications. The impulse withstand voltage rating of 4kV protects the system from voltage surges, ensuring continuous operation.

Common applications include office spaces, fluorescent lighting systems, and other low-voltage commercial environments requiring reliable circuit protection. Operates at a current rating of 16A to protect electrical circuits efficiently.

Compact design for easy mounting and space-saving installation. Thermomagnetic and electromagnetic tripping enhances protection and responsiveness. Durable thermoplastic housing offers electrical insulation and mechanical robustness.

Impulse voltage rating enables protection against transient voltage spikes. Suitable for domestic and commercial low-voltage applications. Screw termination with cage terminal type simplifies installation and maintenance.
