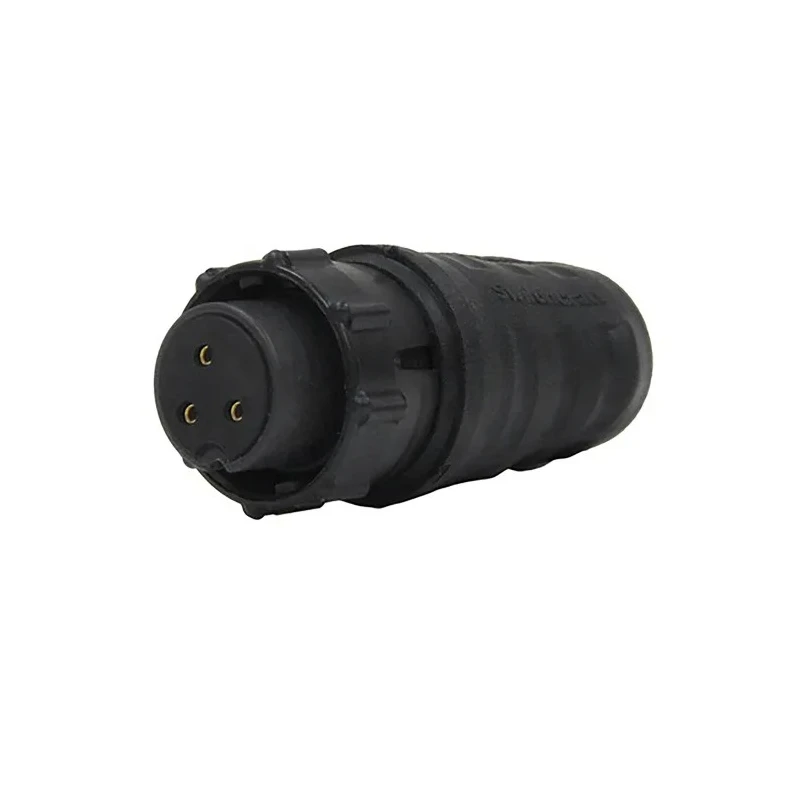

Switchcraft Circular Connector, 3 Contacts, Cable Mount, Socket, Female, IP68 IP69K, Thermoplastic Housing, 250V 7.5A EN3C3FX
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250.0, 600.0V |
| Brand | Switchcraft |
| Orientation | Straight |
| Current | 7.5A |
| Model | EN3C3FX |
| IP Rating | IP68, IP69K |
| Mount Type | Cable, Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | EN3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- Designed with a thermoplastic rubber housing for enhanced durability and environmental protection.
- Features 3 gold over nickel-plated copper alloy contacts to ensure reliable conductivity.
- Supports a voltage rating of up to 250VAC/DC and a current capacity of 7.5A per contact.
- Employs a bayonet locking mechanism with an integral O-ring and gasket to prevent leakage.
- Suitable for cables up to 6.7mm diameter with strain relief and solder cup termination.
- Operates reliably in harsh temperature conditions ranging from -40 to 65°C.
- Compact straight body orientation allows easy mating and unmating in industrial installations.
- Ideal for general industrial electronics, marine, transportation, medical instrumentation, military, and instrumentation use cases.
Product Description
Switchcraft EN3C3FX Circular Connector is a high reliability 3-contact female socket designed for cable mounting in demanding industrial and electronic applications. Featuring a durable thermoplastic rubber housing and gold over nickel-plated copper contacts, this connector provides excellent electrical performance and environmental protection with IP68 and IP69K ratings.
This standard-sized connector supports operating voltages up to 250VAC/DC and current ratings of 7.5A per contact, accommodating cables up to 6.7mm diameter with a push-fit rubber boot for strain relief. The bayonet locking mechanism with an integral O-ring and gasket ensures secure, waterproof connections suitable for harsh environments.
Designed with a straight body orientation and solder cup termination, the connector facilitates easy assembly and maintenance. It operates within a temperature range from -40°C to 65°C and is unshielded, making it adaptable for multiple industrial, marine, medical, military, and transportation electronic equipment.
The connector is part of the reliable Switchcraft EN3 series, known for weather-tight performance with a polarizing keyway and 1/4 turn locking to prevent misalignment and accidental disconnection. Cable mount assemblies further benefit from a snap-in-place strain relief mechanism enhancing cable durability.
Thermoplastic housing with gold over nickel-plated copper contacts ensures durability and conductivity. Bayonet locking mechanism with O-ring and gasket maintains IP68/IP69K rated sealing. Supports 3 contacts with 7.5A current rating at 250V AC/DC for versatile power connections.
Operates in temperatures from -40°C to 65°C for wide environmental applicability. Solder cup termination and cable mount design provide secure wiring solutions. Ideal for use in industrial electronics, marine, medical instrumentation, transportation, and military applications.
Strain relief boot supports cables with diameters up to 6.7mm to prevent damage. Part of Switchcraft’s EN3 series with high-performance and weather-tight connector solutions.
This product is manufactured in the United States and exemplifies superior quality for demanding industrial connectivity needs. Explore more connectors and industrial components in the Electronics & Electricals category on EnvMart.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of up to 250VAC/DC and a current capacity of 7.5A per contact.
It employs a bayonet locking mechanism with an integral O-ring and gasket to ensure secure and waterproof connections.
It operates reliably in harsh temperature conditions ranging from -40°C to 65°C.
This unit supports cables with a maximum diameter of 6.7mm.
The housing is made of thermoplastic, and the contacts are gold over nickel-plated copper alloy.
It features a solder cup termination type for secure wiring solutions.
This model has an IP68 and IP69K rating, providing excellent environmental protection.
The connector has a straight body orientation, allowing for easy mating and unmating.
It features 3 contacts, designed for female socket applications.
It is suitable for general industrial electronics, marine, transportation, medical instrumentation, military, and instrumentation applications.
This product is manufactured in the United States, ensuring high-quality standards.
It is part of the Switchcraft EN3 series, known for its weather-tight performance and reliability.
