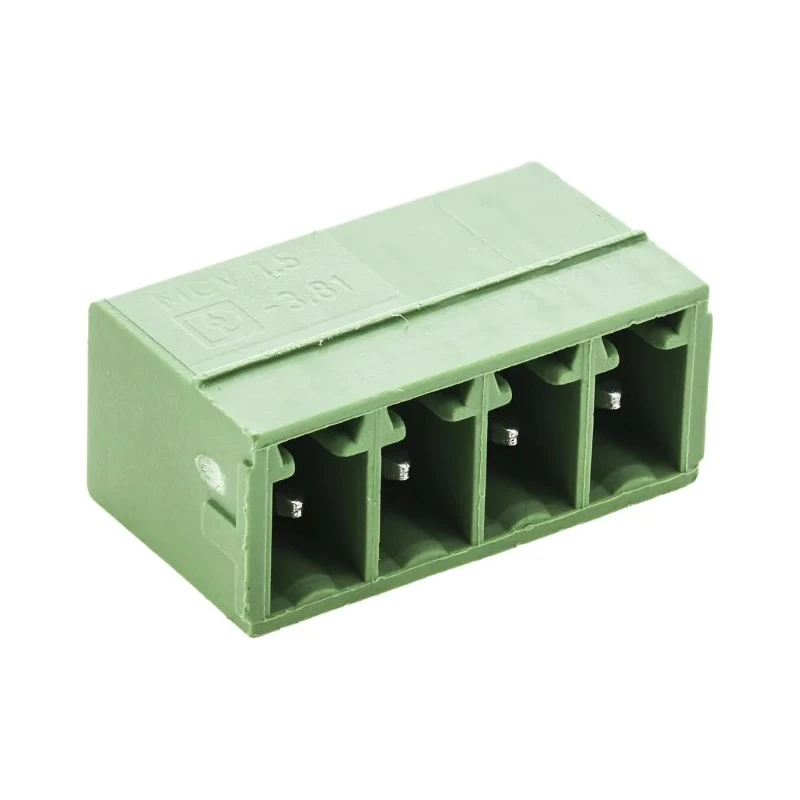

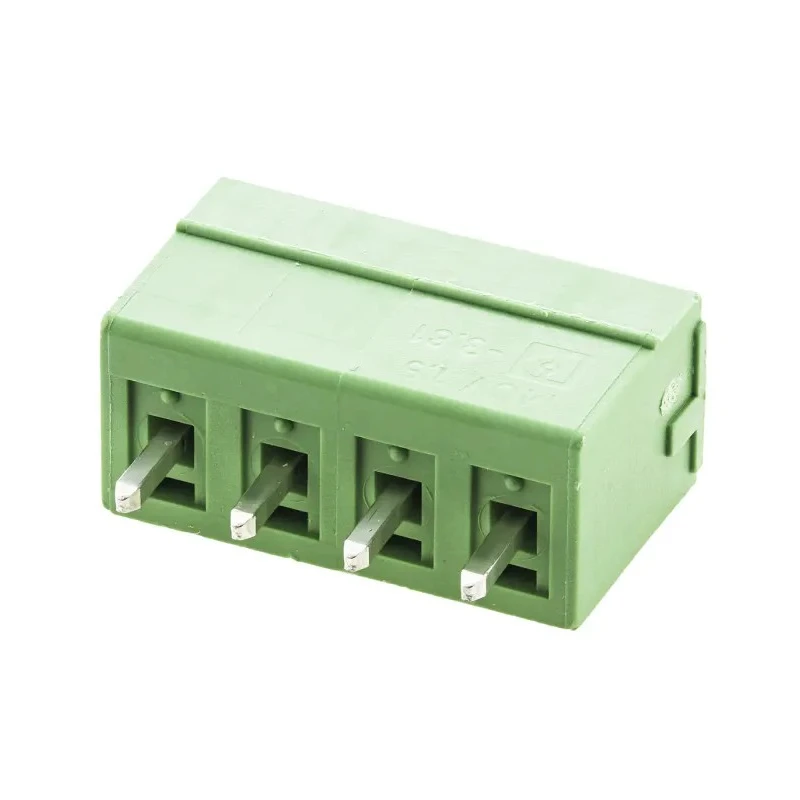

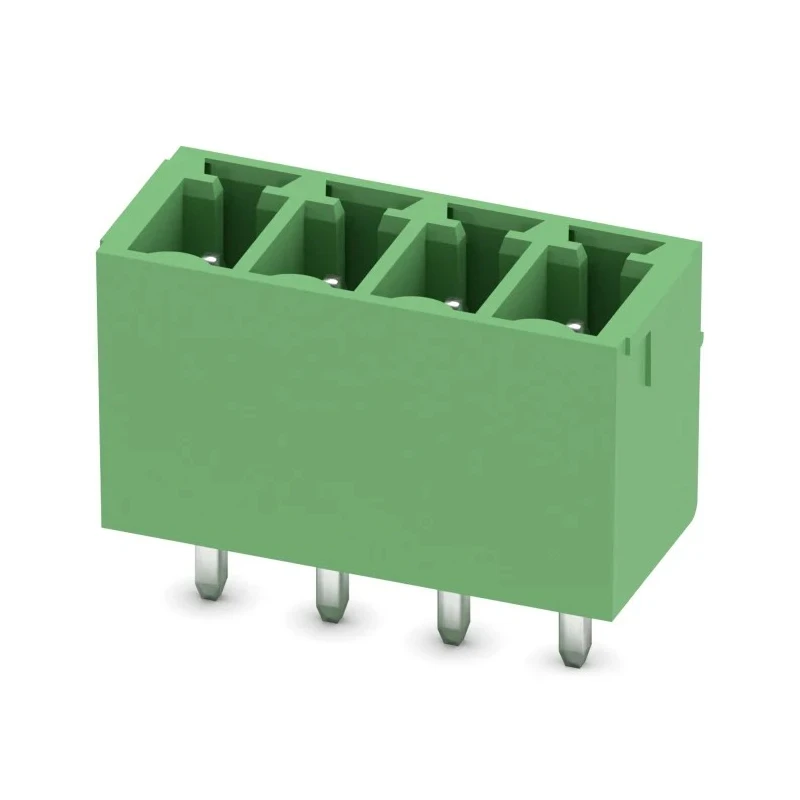

Phoenix Contact MCV 1.5/4-G-3.81 Series Pluggable Terminal Block 4-Contact 3.81 mm Pitch 300V 8A 1803442
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 8A |
| Length | 7.25mm |
| Model | 1803442 |
| Depth | 12.6mm |
| Width | 16.63mm |
| Housing Material | Polybutylene Terephthalate |
| Series | MCV 1.5/4-G-3.81 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 4 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Wire Connection Method | Solder |
Key Features
- Supports a standard pitch of 3.81 mm, saving space on PCBs.
- Designed for 4-contact configurations in a single row for compact application.
- Rated for 8A current and 300V voltage, suitable for standard electronic applications.
- Constructed with a green polybutylene terephthalate housing for durability and impact resistance.
- Copper-alloy contacts ensure excellent conductivity and signal integrity.
- Polarized ports prevent mismating, enhancing safety during installation.
- Solder wire connection method secures the terminal block firmly to PCBs.
- Safe for operating temperatures ranging from -40°C to +100°C, suitable for harsh environments.
Product Description
Phoenix Contact 1803442 is a high-quality pluggable terminal block designed for PCB mounting in various electronics and electrical applications. This 4-contact terminal block features a 3.81 mm pitch and is arranged in a single row, allowing compact and efficient circuit design.
The terminal block is constructed with a green polybutylene terephthalate (PBT) housing, providing excellent impact resistance and durability under mechanical stress. The copper-alloy contacts inside are engineered to deliver reliable conductivity and long service life, surviving over 25 connection cycles.
Rated for 8A current and 300V voltage, this terminal block is suitable for a broad range of industrial, laboratory, HVAC, manufacturing, and commercial electronics contexts. Its polarized ports ensure correct orientation during mating, preventing connection errors. The solder wire connection method securely fixes the block on printed circuit boards, suitable even for vibrating environments.
Operating temperature range from -40 to +100 degrees Celsius makes this component reliable in harsh and variable ambient conditions. This series MCV 1.5/4-G-3.81 provides a space-saving footprint benefiting compact electronic assemblies requiring robust terminal connections.
Standard 3.81 mm pitch helps save PCB real estate. Durable green polybutylene terephthalate housing for mechanical protection. Copper-alloy contacts for reliable electrical performance. Polarized design prevents mismating during installation.
Solder wire connection method for secure PCB mounting. Rated current of 8 amperes and voltage of 300 volts. Supports operating temperatures from -40°C to +100°C. Manufactured in Germany ensuring high quality standards. Designed for industrial, laboratory, and commercial applications.
Choose the Phoenix Contact MCV series for dependable connectivity in your electronic device development and maintenance projects. Browse more Pluggable Terminal Blocks and related connectors in the Electronics Components category on EnvMart to suit your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for 8A current and 300V voltage, making it suitable for various electronic applications.
The pitch size of this model is 3.81 mm, which helps save space on printed circuit boards (PCBs).
It features a green polybutylene terephthalate (PBT) housing for durability, and copper-alloy contacts for reliable conductivity.
The operating temperature range for this terminal block is from -40°C to +100°C, suitable for harsh environments.
This terminal block has 4 contacts arranged in a single row, designed for compact applications.
The wire connection method is solder, which secures the terminal block firmly to PCBs.
The dimensions of this terminal block are 7.25 mm in length, 12.6 mm in depth, and 16.63 mm in width.
It is suitable for industrial, laboratory, HVAC, manufacturing, and commercial electronics contexts.
Yes, the polarized ports of this terminal block prevent mismating during installation, enhancing safety.
This model meets RoHS standards, ensuring compliance with environmental regulations.
This terminal block is manufactured in Germany, ensuring adherence to high quality standards.
