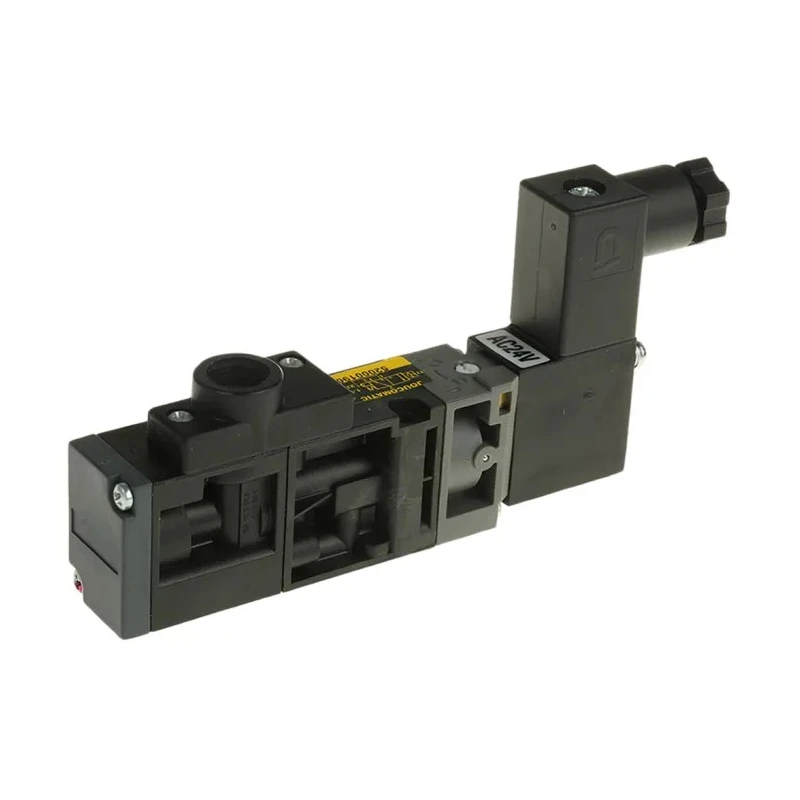

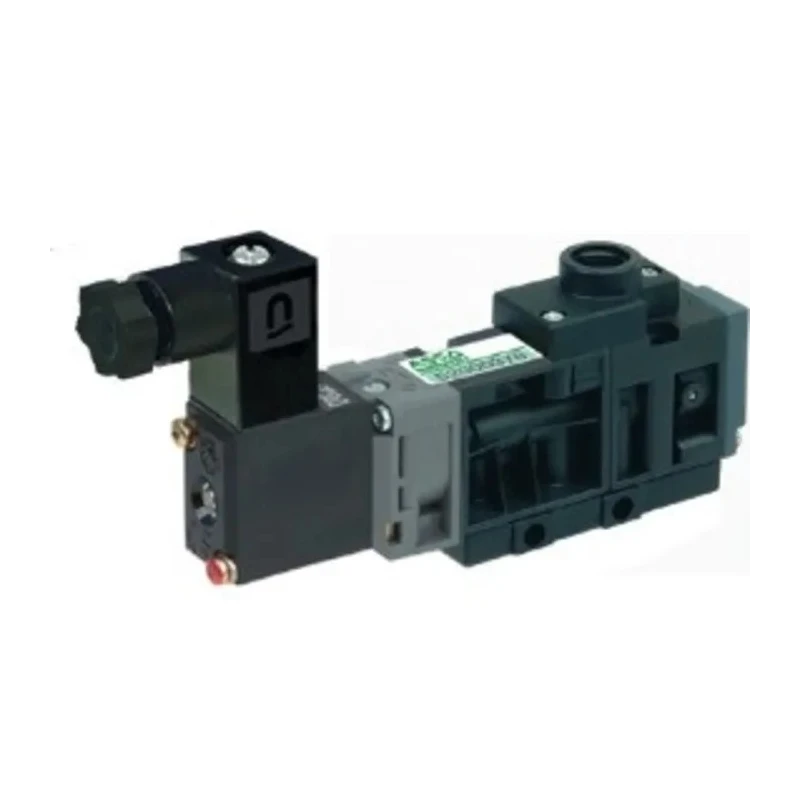

EMERSON ? ASCO EMERSON ASCO Pneumatic Solenoid Valve 3/2 Pilot G 520 Series 24V AC Polyacetal Body 8 bar 400L/min 52000190

EMERSON ASCO 52000190 Pneumatic Solenoid Valve 3/2 Pilot G 520 Series 24V AC is a precision-engineered valve designed for fluid power and control in industrial pneumatic systems. Featuring a robust polyacetal body, this valve ensures long-lasting performance and chemical resistance suitable for demanding environments.

Operated at 24 volts AC with a solenoid power consumption of 2VA, it delivers a maximum flow rate of 400 L/min with a maximum operating pressure of 8 bar. The valve employs a 3/2 function, making it ideal for pilot applications requiring precise fluid control through its three ports and manifold mount design.

The valve's sealing is accomplished with Nitrile Rubber (NBR), providing excellent sealing reliability under varying conditions. Its mechanical dimensions include a length of 161.5 mm, height of 54.5 mm, and width of 18 mm, with a mounting pattern compliant with DIN standards ensuring compatibility with standardized industrial setups.

Temperature tolerance ranges from 5°C to 50°C, broadened usability across various industrial applications. The electrical connection uses a plug connector, facilitating secure and straightforward installation and maintenance.

This 520 series valve is suitable for assembly alone or mounted on manifolds, available in multiple sizes including M5, G1/8", or G1/4" ports to match diverse system requirements.

Manufactured in France, the product meets rigorous quality standards although it does not carry hazardous area certification or additional standards and approvals, making it well-suited for general industrial pneumatic applications including manufacturing, automation, process control, and fluid power management.

Valve includes 3 ports suitable for manifold mounting. Seal material is Nitrile Rubber (NBR) ensuring reliable sealing. Operates at 24V AC with 2VA solenoid power consumption. Maximum flow rate of 400 L/min supports efficient fluid control.

Dimensions: Length 161.5 mm, Height 54.5 mm, Width 18 mm. Mount pattern conforms to DIN standards for easy installation. Minimum operating temperature 5°C and maximum operating temperature 50°C. Electrical connection is via plug connector for secure fitting.

Designed for pilot actuation with minimum pilot pressure of 1.5 bar and maximum pilot pressure of 8 bar. Suitable for industrial pneumatic applications requiring 3/2 valve function. Manufactured in France with a polyacetal body for durability and chemical resistance.
