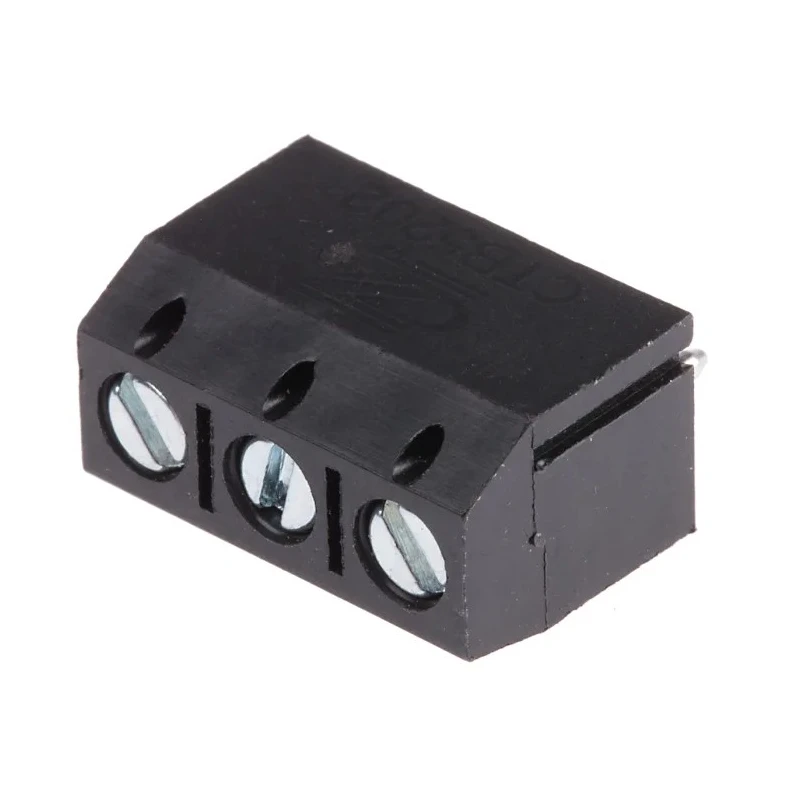

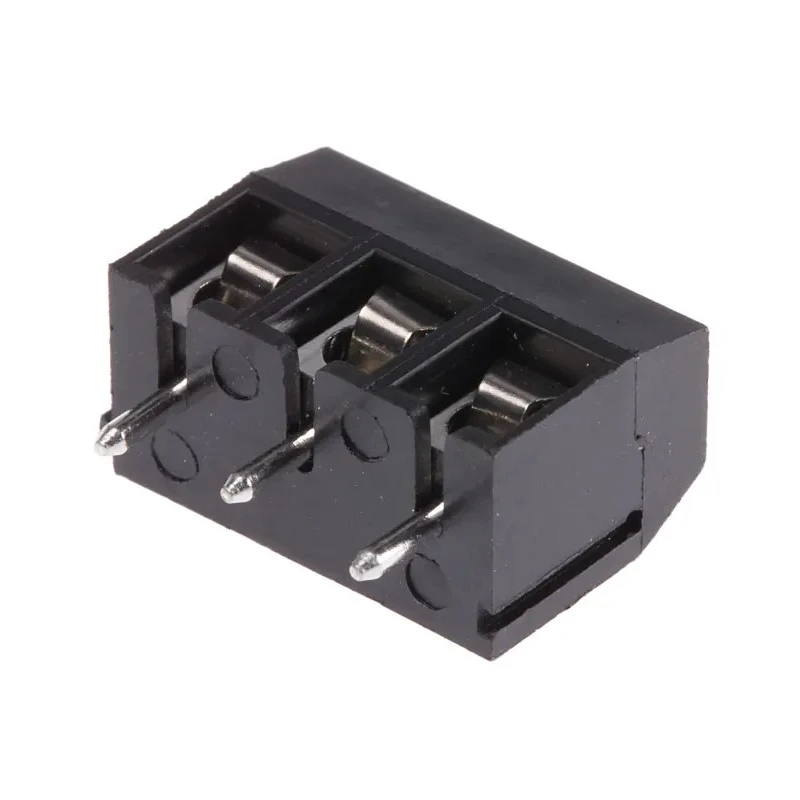

RS PRO CTB5202 Series PCB Terminal Block, 3-Contact, 5 mm Pitch, 1 Row, Polyamide Housing, 16A Current, 250V CTB5202
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | RS PRO |
| Colour | Black |
| Orientation | Straight |
| Current | 16A |
| Length | 15mm |
| Model | CTB5202 |
| Depth | 10.2mm |
| Width | 7.6mm |
| Housing Material | Polyamide |
| Series | CTB5202 |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 3 |
| Minimum Wire Size mm² | 0.32mm² |
| Maximum Wire Size mm² | 3.3mm² |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 22AWG |
| Wire Connection Method | Screw |
Key Features
- Constructed with black polyamide housing providing UL94-V0 flame retardant properties.
- Features screw-type wire connection method suitable for wire sizes from 0.3 to 3.3 mm² (22-14 AWG).
- Rated for a current capacity of 16A and voltage up to 250V.
- Compact 5 mm pitch and 10.2 mm depth allow for low profile PCB mounting.
- Equipped with nickel plated M2.5 stainless steel screws and stainless steel wire protectors for durability.
- Designed with guided pin alignment for ease of installation.
- Orientation is straight to facilitate direct PCB mounting.
Product Description
RS PRO CTB5202 Series PCB Terminal Block offers a reliable 3-contact connection solution with a 5 mm pitch and 1-row configuration. Manufactured with a black polyamide housing that meets UL94-V0 flame retardant standards, it ensures safety and performance in various electronic applications.
This terminal block supports wire sizes ranging from 0.3 mm² to 3.3 mm² (22-14 AWG), and its screw connection method allows secure wire clamping. Rated for 16 amps current and voltages up to 250 volts, it is well suited for industrial, laboratory, manufacturing, and electronic assembly tasks.
The low profile design with a depth of 10.2 mm and length of 15 mm facilitates compact PCB mounting solutions. It features nickel-plated stainless steel screws (M2.5) and stainless steel wire protectors to enhance mechanical stability and corrosion resistance.
Its straight orientation and guided pin alignment simplify installation processes, making it efficient for repeated assembly and maintenance in electronics production lines. Black polyamide housing with flame retardant rating UL94-V0.
Screw connection method ideal for wire sizes 0.3 to 3.3 mm². Current rating of 16A and operational voltage of 250V. Compact 5 mm pitch and low profile design. Equipped with nickel plated M2.5 screws and stainless steel wire protectors.
Perfect for industrial, manufacturing, and laboratory PCB applications. Manufactured in China ensuring quality standards compliance.
This RS PRO PCB Terminal Block series is a dependable component for electronics manufacturing and PCB design, offering robust connectivity with standardized pitch and reliable materials. Buyers can explore this category further for compatible connectors and terminal solutions offered by RS PRO at EnvMart.
Explore more products in our Pluggable Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current capacity of 16A and can handle voltages up to 250V.
It supports wire sizes ranging from 0.3 mm² to 3.3 mm² (22-14 AWG).
The CTB5202 has a length of 15 mm, a width of 7.6 mm, and a depth of 10.2 mm.
The housing is constructed from black polyamide, which provides UL94-V0 flame retardant properties.
This model features 3 contacts in a single row configuration.
It has a compact pitch of 5 mm, allowing for low profile PCB mounting.
The orientation is straight, facilitating direct PCB mounting.
This terminal block is suitable for industrial, laboratory, manufacturing, and electronic assembly tasks.
It is manufactured in China, ensuring compliance with quality standards.
The terminal block utilizes a screw connection method for secure wire clamping, which simplifies installation processes.
The UL94-V0 rating indicates that the polyamide housing meets specific flame retardant standards, enhancing safety in electronic applications.
