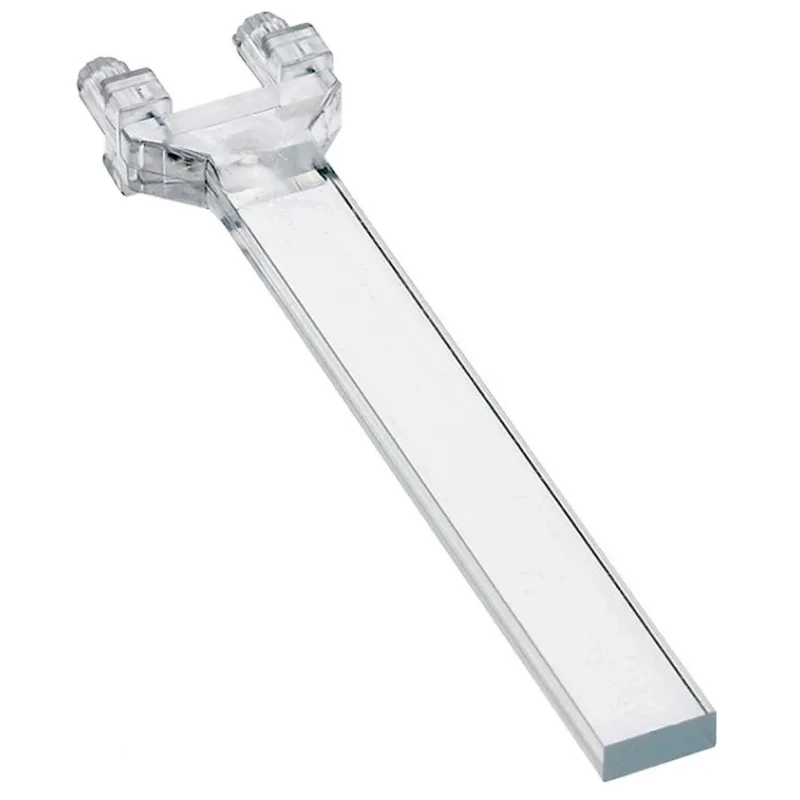

Mentor GmbH Press-In 1-Way Straight Rigid LED Light Pipe Clear 5 mm 1274.1031
Specifications
| Country of Origin | Germany |
|---|---|
| Display | screen |
| Brand | Mentor GmbH |
| Orientation | Straight |
| Length | 45mm |
| Number Of Ways | 1 |
| Mount Type | Press-In |
| Outside diameter | 5.2mm |
| Inside Diameter | 2mm |
| Ambient Temperature | -40°C to +85°C |
| Standards/Approvals | UL94 |
| Flexible/Rigid | Rigid |
| Lens Size | 5 mm |
| Light Pipe Shape | Rectangle |
| Number of Light Pipes | 1 |
| Configuration Rows x Columns | 1 x 1 |
Key Features
- The rigid LED light pipe features a straight orientation ideal for bargraph displays.
- Designed with a press-in mount type for secure PCB installation without additional fixtures.
- Constructed from PC clear material certified to UL94 standards for flame retardance.
- Suitable for use within ambient temperature ranges from -40°C to +85°C.
- Rectangular light pipe shape optimized for single-row, single-pipe configurations.
- Provides efficient light transmission from surface mount (SMD) LEDs with minimal luminance loss and no light bleed.
- Manufactured in Germany ensuring consistent quality and performance.
- Includes one way and one light pipe with an inside diameter of 2 mm and an outside diameter of 5.2 mm.
Product Description
Mentor GmbH 1274.1031 Press-In 1-Way Straight Rigid LED Light Pipe features a 45 mm length and 5 mm lens size, designed to provide precise light guidance in electronic display applications. This rigid light pipe is engineered for use with surface mount LEDs, transferring light with minimal loss and eliminating interference between adjacent LEDs.
The light pipe's straight orientation and rectangular shape make it ideal for bargraph displays, especially those requiring a single row and column configuration. It is manufactured from polycarbonate (PC) material with UL94 flame retardant certification, ensuring both durability and safety in various electronic environments.
Installation is simplified thanks to the press-in mount type, which firmly secures the light pipe to the printed circuit board without the need for adhesives or additional mounting components. The device operates reliably across a wide ambient temperature range from -40°C to +85°C, suitable for industrial, laboratory, and commercial electronic equipment.
The model 1274.1031 supports one light pipe per unit, with precise dimensions including an inside diameter of 2 mm and an outside diameter of 5.2 mm. Manufactured in Germany, this product guarantees high-quality standards consistent with Mentor GmbH's reputation.
The rigid LED light pipe has a clear lens for optimal light passing. Meets UL94 standard for flame retardance and reliability. Designed to minimize light bleed between adjacent LEDs. Compatible with single SMD LED setups in bargraph configurations.
Constructed for long-lasting performance in harsh temperature environments. Installation is efficient with press-in mount design for printed circuit boards. Ideal for industrial, laboratory, and electronic display applications requiring precise light guidance.
Explore the broad range of Mentor GmbH LED Lighting Components and enhance your electronic design projects with reliable, high-performance parts available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Mentor GmbH Press-In 1-Way Straight Rigid LED Light Pipe has a length of 45 mm.
The inside diameter of this light pipe is 2 mm, while the outside diameter is 5.2 mm.
It operates reliably within an ambient temperature range from -40°C to +85°C.
This model features a press-in mount type, allowing for secure installation on printed circuit boards without additional fixtures.
It is constructed from materials that are certified to UL94 standards for flame retardance.
The light pipe has a rectangular shape, optimized for single-row, single-pipe configurations.
It is designed to minimize light bleed between adjacent LEDs, ensuring efficient light transmission from surface mount LEDs.
It is specifically designed for use with surface mount (SMD) LEDs.
This light pipe is manufactured in Germany, ensuring consistent quality and performance.
The configuration for this model is 1 row by 1 column, supporting one light pipe per unit.
It is constructed from clear polycarbonate (PC) material, which provides efficient light transmission.
This model is suitable for industrial, laboratory, and commercial electronic equipment, particularly in bargraph display applications.
