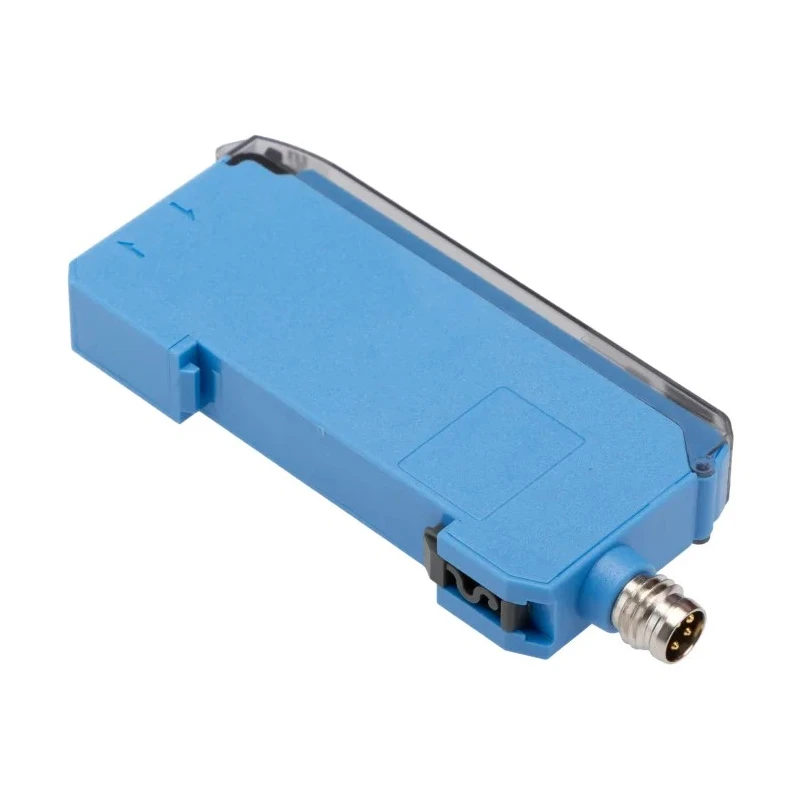

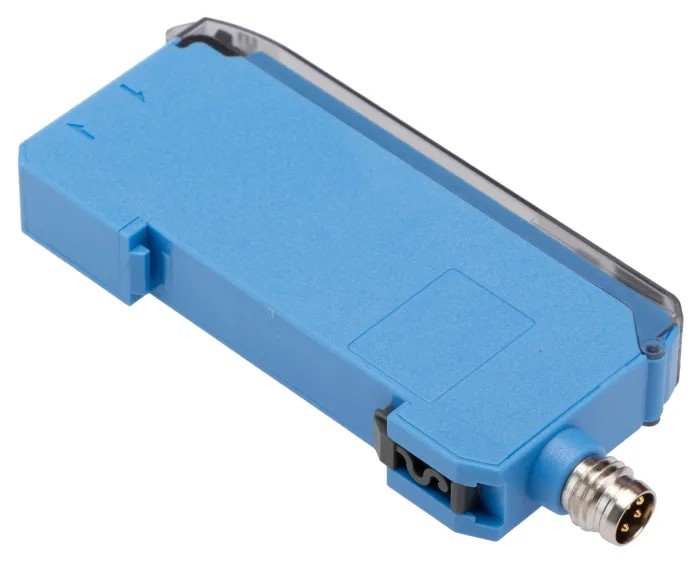

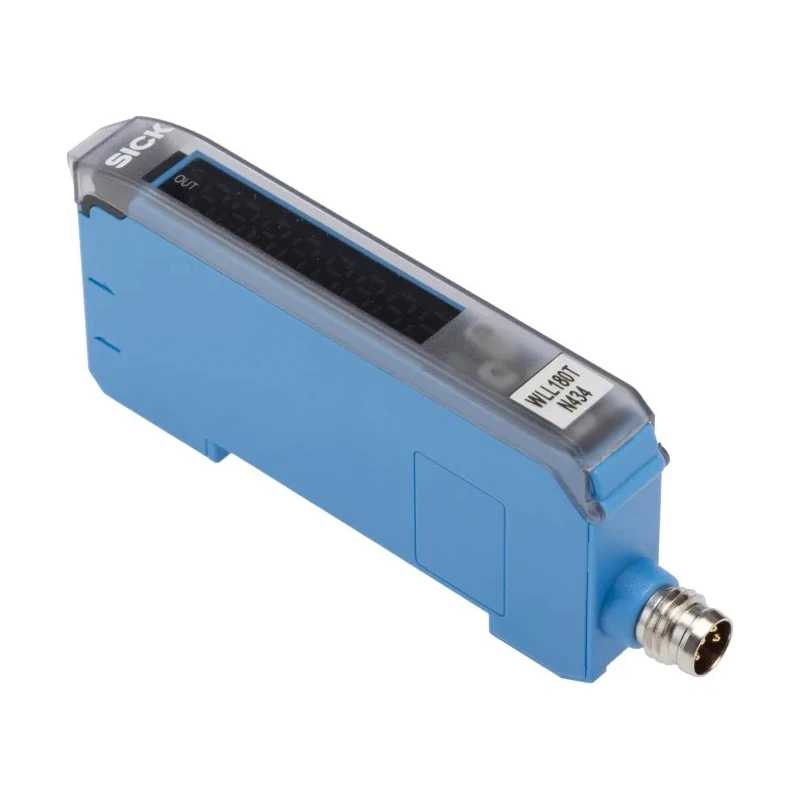

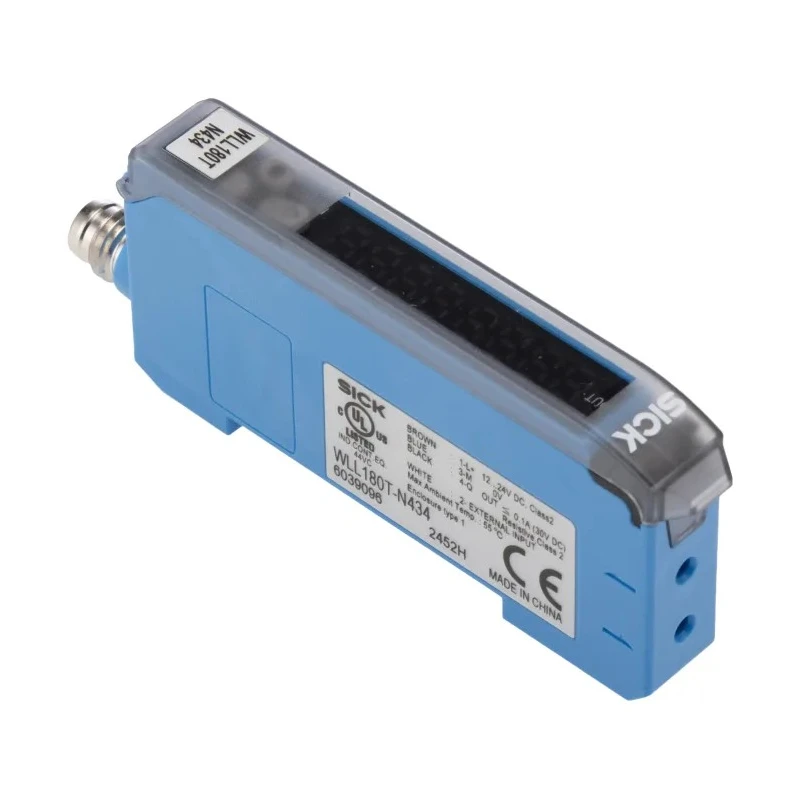

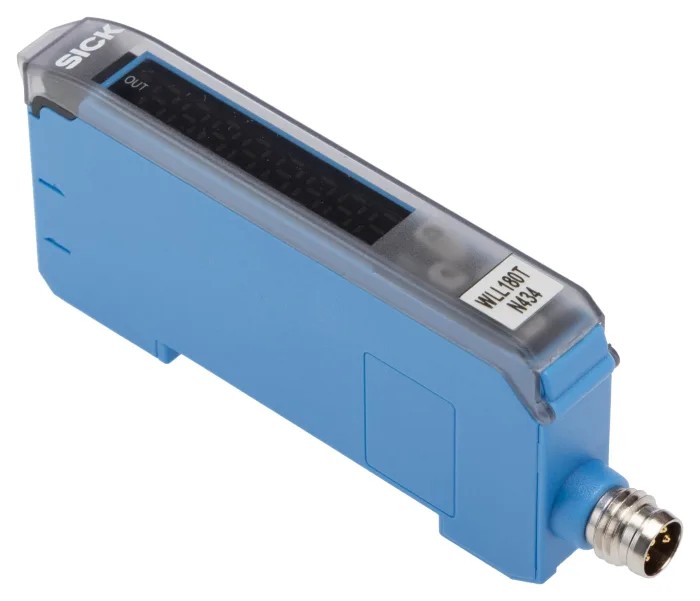

SICK Plastic and Glass Fibre Optic Sensor NPN Output IP50 24V dc WLL180T-N434
Specifications
| Country of Origin | China |
|---|---|
| Brand | SICK |
| Response time | 16μs |
| Light Source | LED |
| Length | 34.6mm |
| Model | WLL180T-N434 |
| Depth | 71.9mm |
| IP Rating | IP50 |
| Width | 10.5mm |
| Housing Material | ABS, Plastic |
| Output type | NPN |
| Series | WLL180T |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Switching Frequency | 31.2kHz |
| Terminal type | M8 Male Connector |
| Standards/Approvals | CE, UL |
| Maximum Supply Voltage | 24V dc |
| Fibre Optic Type | Plastic, Glass |
Key Features
- Offers a fast response time of 16 microseconds for high-speed detection.
- Utilizes LED light source with a selectable sensing range up to 20 meters in through-beam system.
- Equipped with an M8 male connector for reliable terminal connection.
- Features a robust ABS plastic housing suitable for operating temperatures from -25°C to 55°C.
- Capable of switching frequency up to 31.2 kHz for rapid sensing tasks.
- Includes a rotatable display screen and two 4-digit digital displays for easy configuration and monitoring.
- Bus-compatible with anti-interference logic to prevent cross-talk among sensors.
- Designed for reliable detection in challenging ambient conditions such as dust, spray, mist, and water jets.
Product Description
SICK WLL180T-N434 Plastic and Glass Fibre Optic Sensor offers exceptional speed and reliability for industrial automation and control applications. Featuring a fast response time of 16 μs and utilizing a high-intensity LED light source, this sensor achieves sensing distances of up to 20 meters in a through-beam setup and up to 1,400 mm in proximity mode.
The sensor housing is crafted from durable ABS plastic, supporting operation in temperatures ranging from -25°C to 55°C and providing IP50 level protection against dust ingress. The unit includes an M8 male connector for secure and easy wiring.
Intuitive operation is facilitated by two 4-digit digital displays and a rotatable display screen, allowing quick setup and adjustment of parameters such as hysteresis and time delays. Its bus-compatible design with integrated anti-interference logic eliminates cross-talk, enabling networking multiple sensors for synchronized operation.
Engineered for demanding environments, the WLL180T-N434 sensor reliably detects objects even in the presence of dust, spray, mist, and water jets. Applications include detection of printed circuit boards, level measurement in bottles, log detection and classification, presence monitoring in grippers and injection molding tools, and monitoring positions in pick-and-place operations.
This sensor is CE and UL approved, highlighting its compliance with international safety and quality standards. Manufactured in China, it is ideal for industrial, laboratory, and manufacturing use cases requiring high-speed, precise optical detection.
Fast 16 μs response time for rapid detection. LED light source with extended sensing range. Robust ABS housing with IP50 rating. Adjustable parameters via digital display interface. Bus-compatible with cross-talk prevention logic.
Suitable for harsh ambient conditions. CE and UL certified ensuring safety compliance. Designed for various industrial automation applications. Explore our comprehensive range of sensors on EnvMart for your automation needs.
Explore more products in our Fibre Optic Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The response time of this sensor is 16 microseconds, allowing for high-speed detection.
In a through-beam setup, the sensor can sense distances of up to 20 meters.
This model features an NPN output type for signal transmission.
The sensor has a length of 34.6 mm, a width of 10.5 mm, and a depth of 71.9 mm.
It operates within a temperature range of -25°C to 55°C.
This unit is equipped with an M8 male connector for secure terminal connections.
The sensor is capable of switching at a frequency of up to 31.2 kHz.
The housing is made from durable ABS plastic, providing robustness for various applications.
Yes, it is designed to reliably detect objects even in challenging conditions such as dust, spray, mist, and water jets.
The sensor is CE and UL certified, indicating compliance with international safety and quality standards.
It utilizes a high-intensity LED light source for effective sensing.
This sensor is suitable for applications like detection of printed circuit boards, level measurement in bottles, and presence monitoring in automation tasks.
