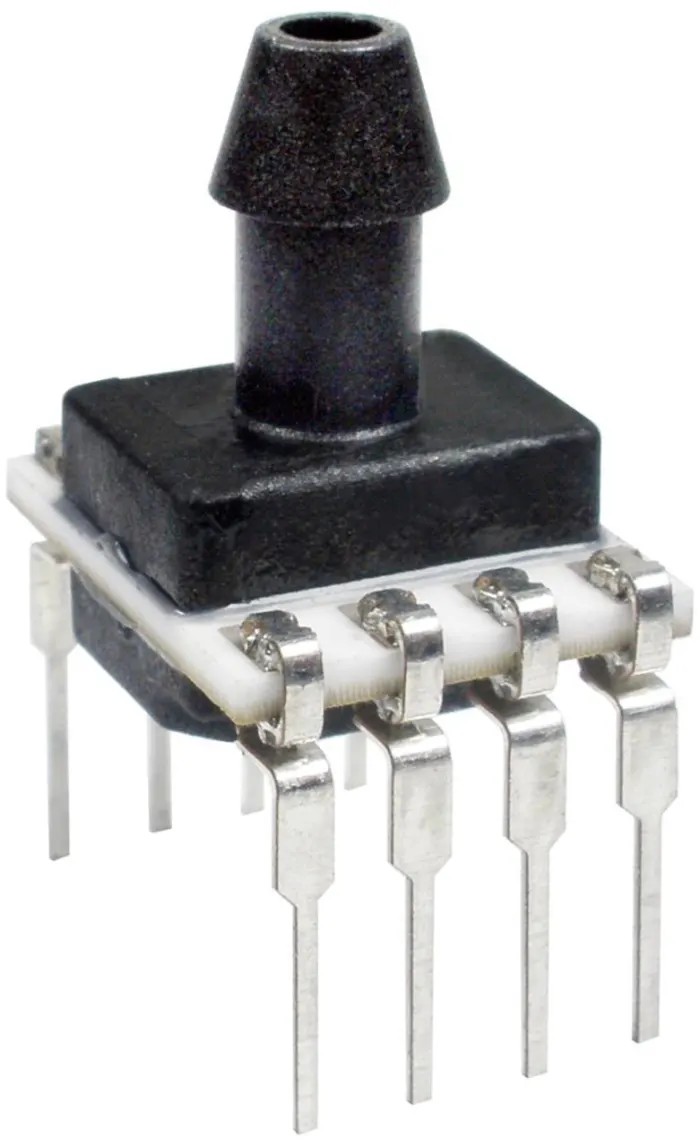

Honeywell Technologies Absolute Pressure Sensor 8-Pin DIP Package Surface Mount HSCDANN001BA2A3
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 100 kPa |
| Height | 13.75mm |
| Length | 10mm |
| Model | HSCDANN001BA2A3 |
| Sensor Type | Absolute Pressure Sensor |
| Mount Type | Surface |
| Series | HSC |
| Maximum Operating Temperature | 85°C |
| Port Type | Single Axial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -20°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Minimum Operating Pressure | 0bar |
| Maximum Overload Pressure | 200kPa |
Key Features
- This sensor offers high precision with an accuracy of ±0.25%.
- Operates reliably over a wide temperature range from -20°C to 85°C.
- Supports a supply voltage range from 3.3V to 5V, reducing power consumption.
- Designed for non-corrosive, non-ionic gases and withstands a maximum overload pressure of 200 kPa.
- Provides a calibrated, temperature-compensated ratiometric output with rapid update rates at 1 kHz.
- Compact dimensions with length 10 mm and height 13.75 mm enable easy PCB integration.
- Equipped with a single axial barbed port for absolute pressure sensing applications.
- Robust design suitable for automotive and industrial environments with stable thermal performance.
Product Description
Honeywell HSCDANN001BA2A3 Absolute Pressure Sensor is a surface-mounted semiconductor sensor packaged in an 8-pin DIP form factor. It is designed for precise and reliable measurement of absolute pressure in electronic systems and industrial applications. Operating across supply voltages from 3.3V to 5V, it minimizes power requirements while delivering high accuracy of ±0.25%.
This sensor is engineered to measure absolute pressure for non-corrosive and non-ionic gases and includes integrated temperature compensation for operational stability between -20°C and 85°C. It features a maximum operating pressure of 100 kPa with an overload tolerance up to 200 kPa, ensuring robustness under pressure fluctuations and transient surges.
The device delivers a calibrated, ratiometric output updating at 1 kHz, which is beneficial for rapid feedback in control and monitoring systems. Its compact size (10 mm length and 13.75 mm height) and surface mount DIP package make it suitable for seamless PCB mounting in automotive and industrial contexts.
Applications include automotive pressure sensing, industrial process control, HVAC systems, and instrumentation that require accurate and stable absolute pressure measurements. The sensor's precision and power efficiency reduce the need for calibration software and energy consumption in embedded systems.
This absolute pressure sensor from Honeywell combines accuracy with high overload tolerance. It provides stable performance across a broad temperature and voltage range. The surface mount DIP package facilitates integration into compact electronic assemblies.
Rapid output updates enhance system response times in dynamic conditions. Designed for harsh industrial and automotive environments requiring durable sensing solutions. Its single axial barbed port is optimized for absolute pressure measurements.
Typical applications include industrial controls, automotive electronics, HVAC monitoring, and laboratory instrumentation. Discover more pressure sensing solutions and industrial-grade sensors in the Electronics & Electricals category at EnvMart for your technical needs.
Explore more products in our Pressure Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The accuracy of this absolute pressure sensor is ±0.25%.
It operates reliably over a temperature range from -20°C to 85°C.
The maximum operating pressure is 100 kPa, with a maximum overload pressure of 200 kPa.
This model supports a supply voltage range from 3.3V to 5V.
It provides a calibrated, temperature-compensated ratiometric output with rapid update rates at 1 kHz.
The sensor has compact dimensions of 10 mm in length and 13.75 mm in height.
It features a single axial barbed port optimized for absolute pressure sensing applications.
Typical applications include automotive pressure sensing, industrial process control, HVAC systems, and laboratory instrumentation.
The sensor is designed for surface mounting in a DIP package.
This model has an 8-pin configuration.
The minimum operating pressure is 0 bar.
The country of origin for this sensor is India.
