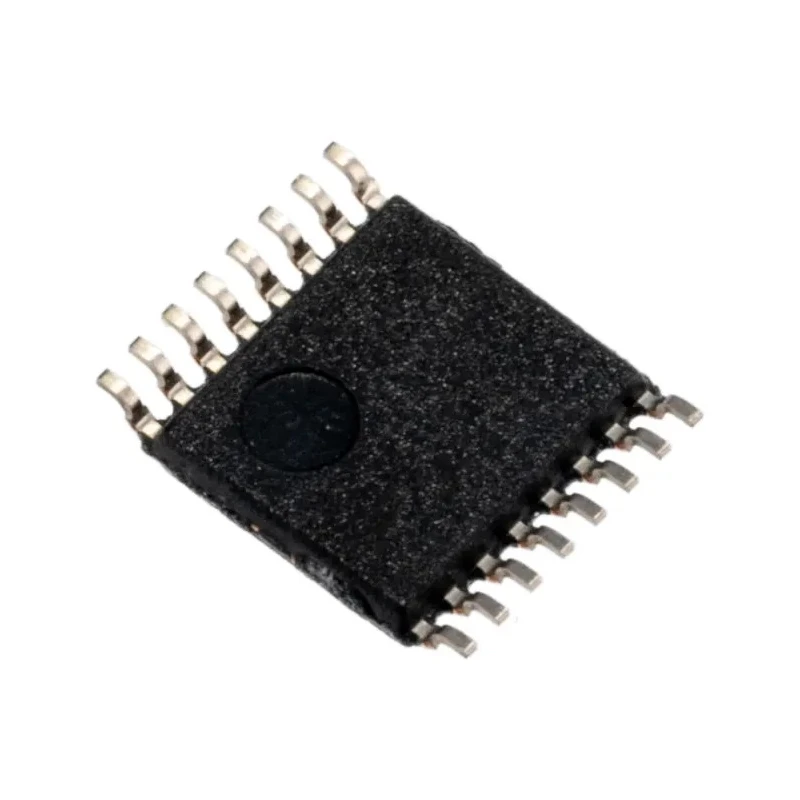

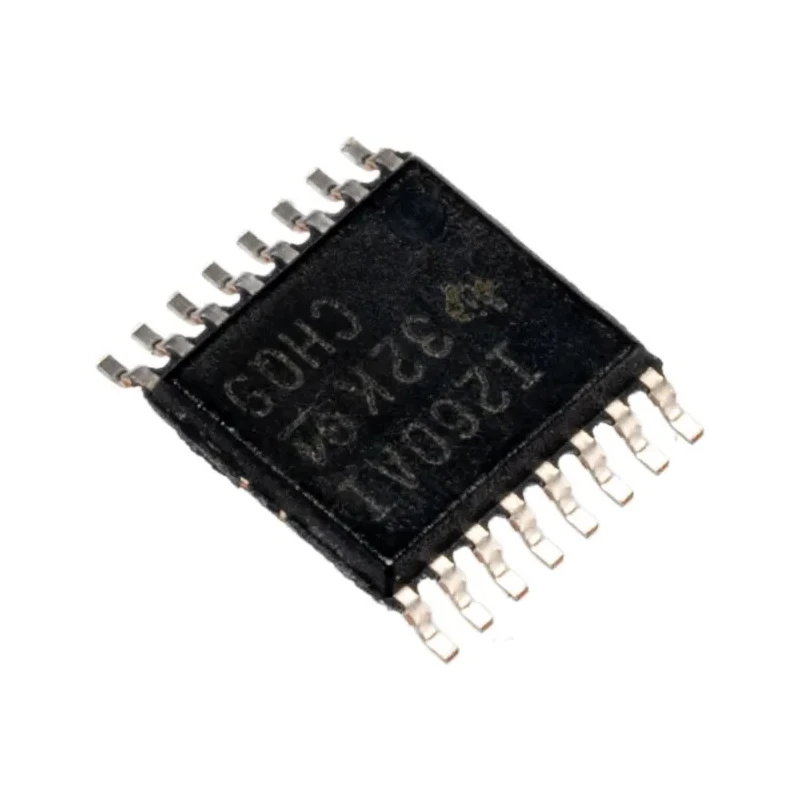

Texas Instruments Current Monitor Single Power Supply 2.7-5.5V 16-Pin TSSOP INA260AIPW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | INA260AIPW |
| Mount Type | Surface |
| Series | INA260 |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 310μA |
Key Features
- Operates with a supply voltage range of 2.7V to 5.5V.
- Features a single channel for current monitoring.
- Supply current is low at 310μA for energy-efficient designs.
- Compact TSSOP package with 16 pins measuring 5.1mm length and 1.2mm height.
- Wide operating temperature range from -40°C to 125°C suitable for industrial environments.
- Surface mount device ensuring easy PCB integration.
- Part of the INA260 series for precise current sensing amplifier solutions.
Product Description
Texas Instruments INA260AIPW is a high-precision current monitor designed for single-channel current sensing applications powered by a single supply voltage from 2.7V up to 5.5V. Packaged in a compact 16-pin TSSOP form factor measuring 5.1 mm in length and 1.2 mm in height, it is ideal for surface mount applications where board space is critical.
The IC operates with a low supply current of 310μA, making it suitable for energy-efficient industrial and commercial electronic systems. It withstands a broad temperature range from -40°C to 125°C, allowing reliable performance in harsh environments. This device does not carry automotive certification but meets standard industrial requirements.
The INA260 series integrates a current sensing amplifier that facilitates accurate measurement of electrical current, enhancing power monitoring and management systems across various applications including power supplies, embedded systems, and instrumentation. The device simplifies designs by combining the amplifier and an analog-to-digital converter - supporting precise current and voltage measurements on a single chip.
Operates with supply voltage between 2.7V and 5.5V to accommodate a range of system designs. Single channel Current Monitor supporting accurate sensing on one line. Low supply current draw of 310μA reduces power consumption.
Compact, surface mount TSSOP package with 16 pins fits into tight design spaces. Wide temperature operability from -40°C up to 125°C suited for industrial use. Precise current sensing part of the INA260 series from Texas Instruments.
This product is new and shipped from India. For additional technical resources, users can access related design files, schematics, and footprints from Texas Instruments and DesignSpark platforms.
Explore more Texas Instruments amplifiers and current sensing devices within EnvMart’s comprehensive catalog for electronic components and industrial instrumentation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a supply voltage range from 2.7V to 5.5V.
This model supports a single channel for current monitoring.
The supply current is low at 310μA, making it suitable for energy-efficient designs.
The TSSOP package measures 5.1mm in length and 1.2mm in height.
It has a wide operating temperature range from -40°C to 125°C, suitable for industrial environments.
Yes, it is designed as a surface mount device for easy PCB integration.
This current monitor is part of the INA260 series, which includes precise current sensing amplifier solutions.
No, it does not carry automotive certification but meets standard industrial requirements.
It is suitable for power monitoring and management systems across various applications, including power supplies and embedded systems.
The INA260AIPW has a pin count of 16.
The country of origin for this product is India.
It withstands a broad temperature range from -40°C to 125°C, making it reliable for harsh industrial conditions.
