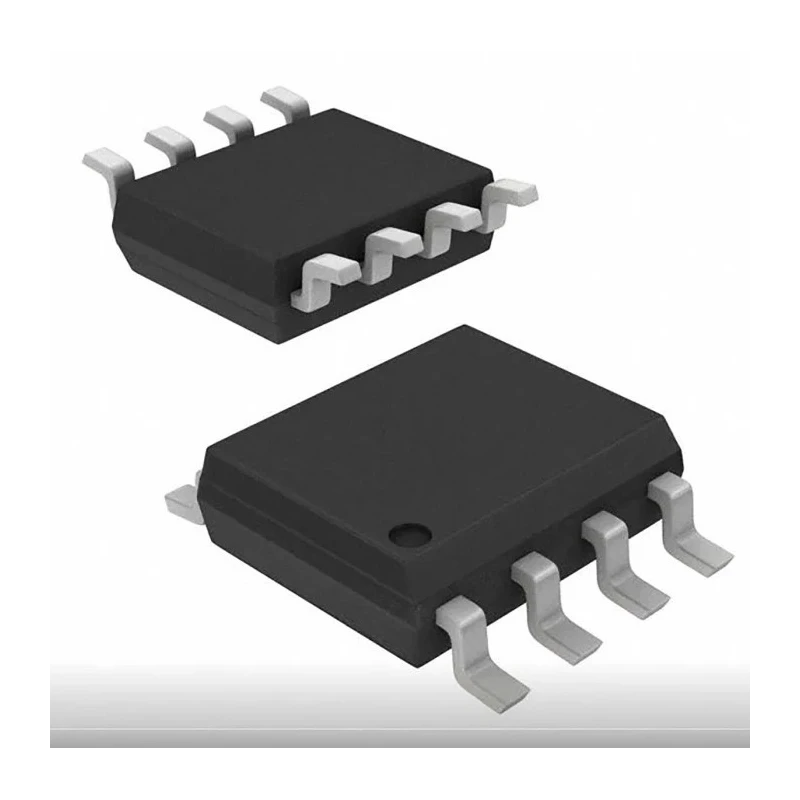

STMicroelectronics Bidirectional Current Sensing Amplifier Single 8-Pin SO, 2.7-5.5V, 5mA Supply, 85dB CMRR TSC2011IDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | TSC2011IDT |
| Mount Type | Surface |
| Output type | Bidirectional |
| Series | TSC2011 |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 5mA |
| GBP - Gain Bandwidth Product | 750kHz |
| CMRR - Common Mode Rejection Ratio | 85dB |
Key Features
- Operates with a minimum supply voltage of 2.7V and maximum voltage of 5.5V.
- Provides a high common mode rejection ratio (CMRR) of 85dB for accurate sensing.
- Low supply current consumption of 5mA ensures efficient performance.
- Available in a compact 8-pin SO surface mount package.
- Supports high and low-side current sensing applications.
- Features a gain bandwidth product of 750kHz for fast response.
- Operating temperature range from -40°C to 125°C suitable for industrial environments.
- Bidirectional output type to measure current flow in both directions.
Product Description
STMicroelectronics TSC2011IDT is a high precision bidirectional current sensing amplifier engineered to accurately measure current with low voltage drop. Designed for use with a single power supply ranging from 2.7V to 5.5V, it supports both high-side and low-side current sensing configurations common in power management and industrial control systems.
This device offers an excellent common mode rejection ratio (CMRR) of 85dB, ensuring minimal interference from common mode signals and improving measurement accuracy. The amplifier operates with a low supply current of only 5mA, making it suitable for energy-efficient applications.
Featuring a gain bandwidth product of 750kHz, the amplifier provides a fast and stable response, essential for dynamic current monitoring in systems such as battery management, motor control, and power supply monitoring.
Encased in a compact 8-pin SO surface mount package (5mm length and 1.75mm height), the TSC2011IDT supports easy PCB integration, saving board space in densely packed designs. Designed to operate over a wide temperature range from -40°C to 125°C, it is well suited for demanding industrial, automotive, and commercial electronic environments.
The bidirectional output allows measurement of current flow in both directions, enabling versatile application in energy metering and load monitoring systems. Operates with a supply voltage range from 2.7V to 5.5V. High CMRR of 85dB for noise resilience.
Low supply current of 5mA enhances efficiency. Compact 8-pin SO surface mount package. Wide operating temperature from -40°C to 125°C. Gain bandwidth product of 750kHz for rapid response. Bidirectional output for comprehensive current measurement.
This current sensing amplifier is ideal for industrial automation, automotive electronics, power management in consumer devices, and instrumentation requiring precise current measurement. It provides engineers with a reliable and compact solution for accurate Current Monitoring applications.
Explore further current sensing amplifiers and STMicroelectronics components on EnvMart for comprehensive electronic design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 2.7V to 5.5V.
The amplifier provides a high common mode rejection ratio (CMRR) of 85dB, which helps ensure accurate current sensing by minimizing interference from common mode signals.
It operates with a low supply current of 5mA, making it efficient for various applications.
The gain bandwidth product for this model is 750kHz, allowing for a fast and stable response in current monitoring applications.
This unit can operate over a wide temperature range from -40°C to 125°C, suitable for industrial environments.
It features a bidirectional output type, enabling the measurement of current flow in both directions.
The TSC2011IDT is encased in a compact 8-pin SO surface mount package, measuring 5mm in length and 1.75mm in height.
This model supports a single channel for current sensing applications.
It uses a surface mount type for easy PCB integration, which is beneficial for space-constrained designs.
This current sensing amplifier is suitable for applications such as battery management, motor control, and power supply monitoring.
The maximum operating temperature for the TSC2011IDT is 125°C, making it suitable for demanding environments.
The minimum operating voltage for this amplifier is 2.7V.
