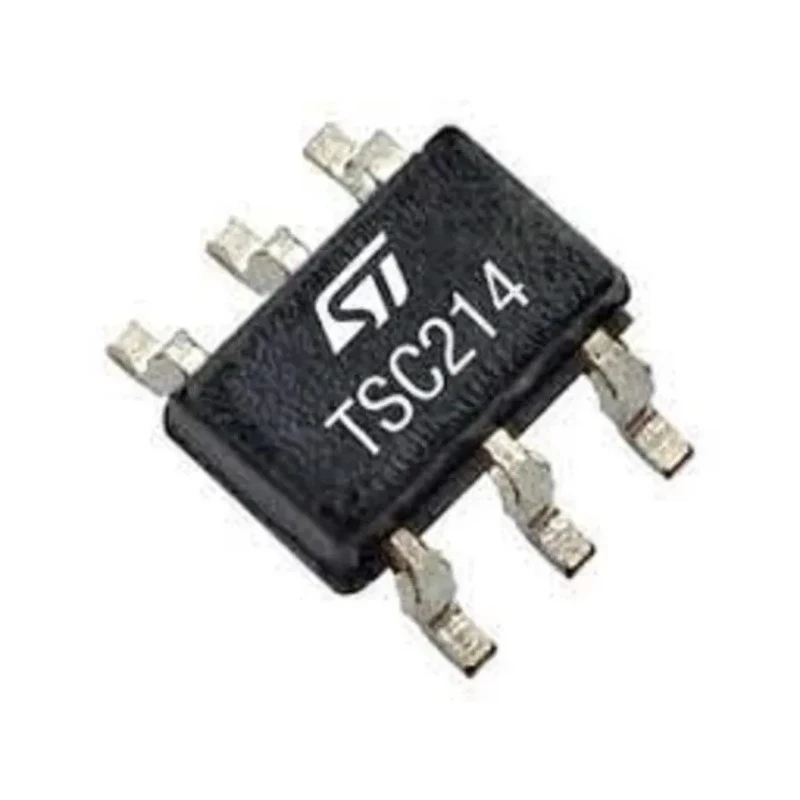

STMicroelectronics Current Sensing Amplifier Single 6-Pin SC-70-6 TSC214IYCT

STMicroelectronics TSC214IYCT is a high-precision current sensing amplifier featuring a single power supply operation and packaged in a compact 6-pin SC-70-6 surface mount form factor.

It operates efficiently with a supply voltage range from 2.7 V to 26 V and can measure current through a shunt resistor over a wide range of common mode voltages from -0.3 V to +26 V. This makes it ideal for integration in telecommunications equipment, automotive systems, and industrial instrumentation where accurate Current Monitoring is critical.

The TSC214 series employs a zero-drift architecture, which offers very low offset drift of 0.1 μV/°C and gain error within ±1% to ensure stable and precise measurements even under temperature variations.

Key features include a high common mode rejection ratio (CMRR) of 105 dB and low quiescent current consumption of only 5 mA, contributing to power-efficient designs. The gain bandwidth product of 40 kHz balances response speed and noise performance.

Designed to meet the stringent requirements of automotive applications, it is qualified to the AEC-Q100 standard. The amplifier is suitable for PCB surface mounting using the SC-70-6 package with dimensions of 2.2 mm length and 1.1 mm height, supporting compact, space-saving electronic designs.

Industrial and laboratory applications involving power monitoring, battery management systems, and sensor interfacing will benefit from its high accuracy and stability. Integration with signal conditioning circuitry allows its use in sophisticated control and measurement systems.

Wide supply voltage range from 2.7 V to 26 V enables flexible application use. High common mode rejection ratio of 105 dB enhances measurement accuracy. Low quiescent current of 5 mA improves energy efficiency in designs.

Compact SC-70-6 package facilitates surface mounting on PCB designs. Automotive qualified with AEC-Q100 standard ensures reliability in harsh environments. Zero-drift architecture minimizes offset drift and gain error for precise sensing.

Gain bandwidth product of 40 kHz suitable for various sensing applications. Operating temperature range from -40°C to 125°C covers industrial specifications. Single channel design optimized for current sensing amplifier applications.
