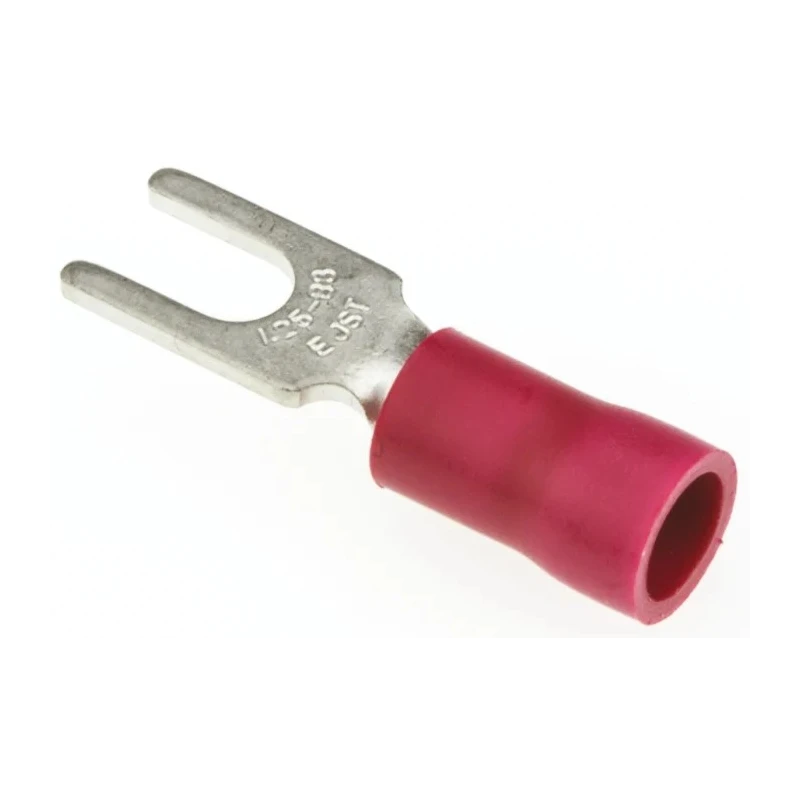

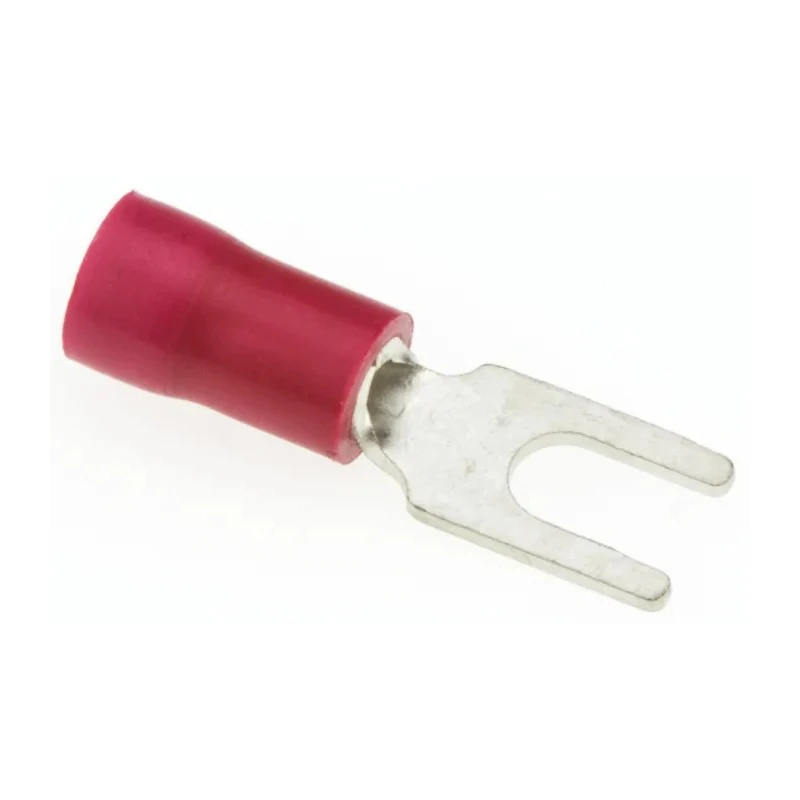

JST Insulated Vinyl Crimp Spade Connector 22 AWG to 16 AWG 3 mm Stud Size Red FVWS1.25-B3A(LF)
Specifications
| Country of Origin | India |
|---|---|
| Brand | JST |
| Colour | Red |
| THICKNESS | 0.8mm |
| Model | FVWS1.25-B3A(LF) |
| Width | 5.8mm |
| Insulation | Insulated |
| Overall Length | 20mm |
| Insulation Material | Vinyl |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | 3 mm |
Key Features
- Constructed with tin-plated oxygen-free copper for optimal conductivity.
- Insulation made from durable vinyl material for protection and safety.
- Suitable for wire gauge sizes from 22 AWG up to 16 AWG.
- Features a 3 mm stud size and overall length of 20 mm for efficient electrical connections.
- Flared-entry design preventing seam damage during crimping.
- Thickness of 0.8 mm ensuring mechanical strength while maintaining flexibility.
- Red color coding for easy identification and organization.
- Complies with RoHS environmental standards ensuring safe use.
Product Description
The JST FVWS1.25-B3A(LF) is a high-quality insulated crimp spade connector designed specifically for wire gauges ranging from 22 AWG to 16 AWG. It features a 3 mm stud size and is constructed using tin-plated oxygen-free copper which ensures excellent electrical conductivity and corrosion resistance. The insulation is made of vinyl, providing both durability and electrical safety.
This connector has a flared-entry design that ensures the integrity of the terminal during crimping and penetration by the crimp tool, preventing potential seam damage. The overall length of the connector is 20 mm, with a thickness of 0.8 mm, balancing robustness with ease of use. The red color coding helps in quick identification and proper connection in wiring applications.
JST crimp Spade Connectors are compliant with RoHS directives, making them environmentally friendly and suitable for modern industrial uses. Typical applications include electronic devices, power connectors, and electrical wiring where reliable and secure spade connections are required.
This product is essential for electronics, electrical, manufacturing, and industrial assembly tasks, providing reliable performance and easy installation. Its vinyl insulation material and overall construction make it ideal for protecting electrical connections from short circuits and environmental damage.
Constructed with tin-plated oxygen-free copper for optimal conductivity. Insulation made from durable vinyl material for protection and safety. Compatible with wire sizes ranging from 22 AWG to 16 AWG. Features a 3 mm stud size and overall length of 20 mm for efficient electrical connections.
Flared-entry design prevents seam damage during crimping. Thickness of 0.8 mm ensuring mechanical strength and flexibility. Red insulation for quick visual identification. RoHS compliant for environmental safety. Suitable for electronics, power connectors, and industrial wiring.
Explore our extensive collection of crimp connectors and terminals at EnvMart for reliable electrical and electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This spade connector is compatible with wire sizes ranging from 22 AWG to 16 AWG.
The stud size of this model is 3 mm.
The insulation is made from durable vinyl material, providing protection and safety.
The overall length of the connector is 20 mm.
The thickness of this model is 0.8 mm, ensuring mechanical strength while maintaining flexibility.
Yes, this product complies with RoHS environmental standards, ensuring safe use.
It is suitable for applications in electronics, power connectors, and industrial wiring.
The connector is constructed with tin-plated oxygen-free copper, which provides optimal conductivity.
The flared-entry design helps prevent seam damage during crimping, ensuring the integrity of the terminal.
This model features red color coding for easy identification and organization.
The JST FVWS1.25-B3A(LF) is manufactured in India.
The width of this spade connector is 5.8 mm.
