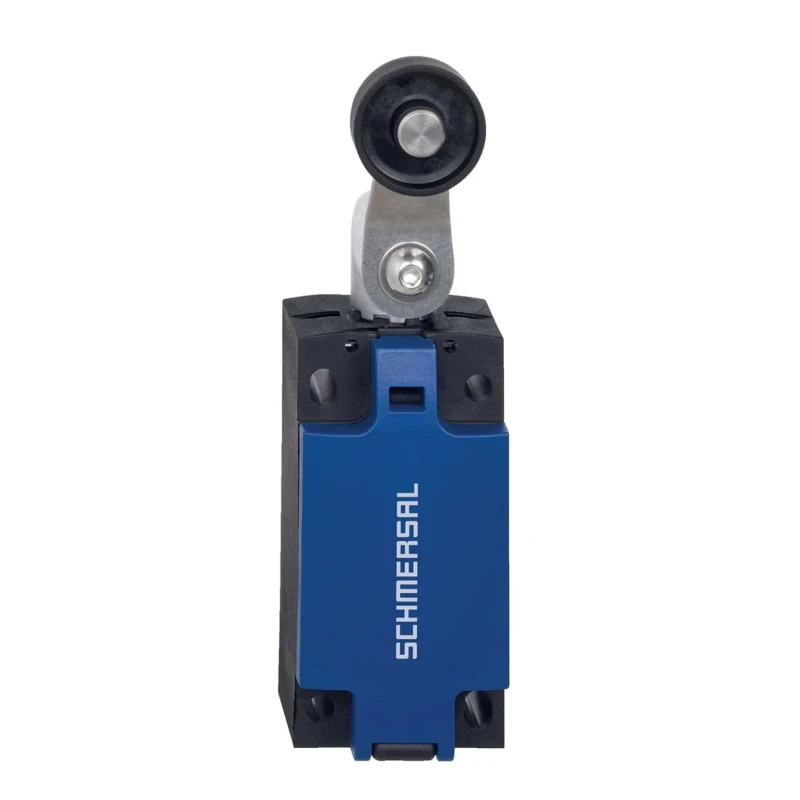

Schmersal PS316-T12-H300 Series Limit Switch Operating Head Roller Lever IP66, IP67 Protection Germany

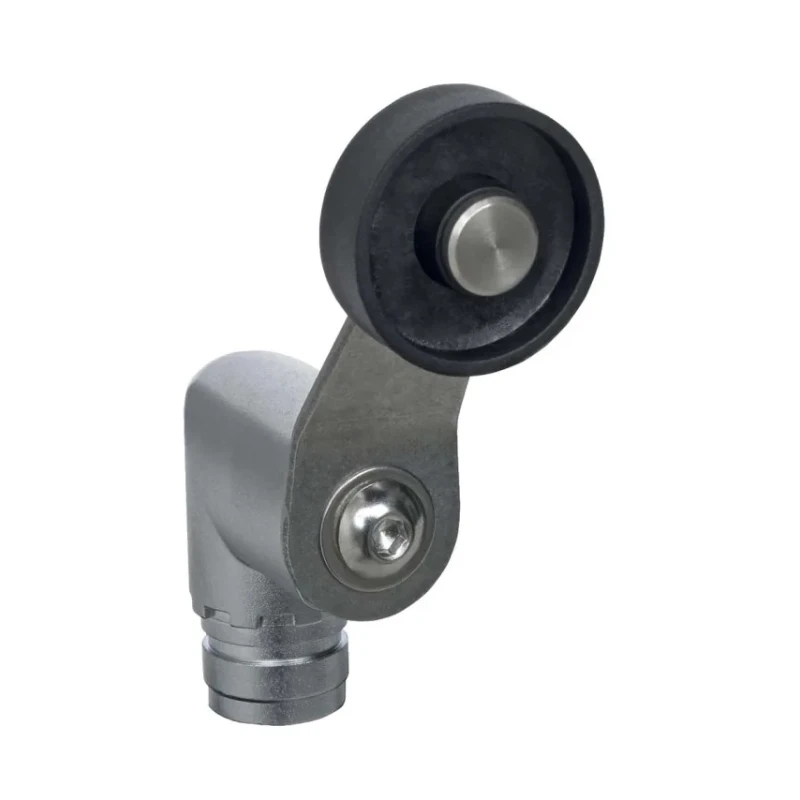

Schmersal PS316-T12-H300 Series Limit Switch Operating Head features a roller lever actuator designed for precise and reliable switching. Manufactured in Germany, it uses a plastic, glass-fibre-reinforced enclosure to ensure ruggedness and resistance to harsh environments. The switch operates using a creep circuit element switching principle incorporating 1 normally open (NO) and 2 normally closed (NC) silver contacts with a screw terminal connection for secure wiring.

With a high switching frequency of 5,000 operations per hour and a thermal test current rating of 5 amps, this limit switch head suits demanding industrial automation tasks and safety applications. It complies with IEC 60947-5-1 and ISO 13849-1 standards, assuring top electrical and safety performance.

The device's IP66 and IP67 protection ratings guarantee resistance against dust ingress and water immersion, enabling its use in tough manufacturing, processing, and machinery environments. Mechanical lifespan is rated at a minimum of 10 million operations, offering long-term durability, while the B10d value for normally-closed contacts is 20 million operations, reflecting high reliability under repeated cycling.

This limit switch head is specifically designed to be used with Schmersal H300 series actuators, providing a compatible, efficient solution for position detection and control in industrial setups. Its robust construction, certifications, and high mechanical endurance make it ideal for automation, factory machinery, material handling, and safety systems.

Constructed with plastic, glass-fibre-reinforced enclosure ensuring durability. Equipped with silver electrical contacts for reliable conductivity. Features type A actuator with screw connection terminal for secure installation.

Operates on creep circuit element switching principle for precise activation. Includes 1 NO and 2 NC contacts for versatile switching configurations. Has a switching frequency of 5,000 operations per hour suitable for high-cycle usage.

Rated thermal test current of 5 A for stable performance under load. Designed with IP66 and IP67 protection classes for dust and water resistance. Mechanical lifespan minimum of 10 million operations for extended service life.

B10d value of 20 million operations for normally-closed contact indicating quality reliability. Explore the wide selection of limit switch actuators and operating heads at EnvMart to find complementary industrial automation components designed for precision and reliability.
