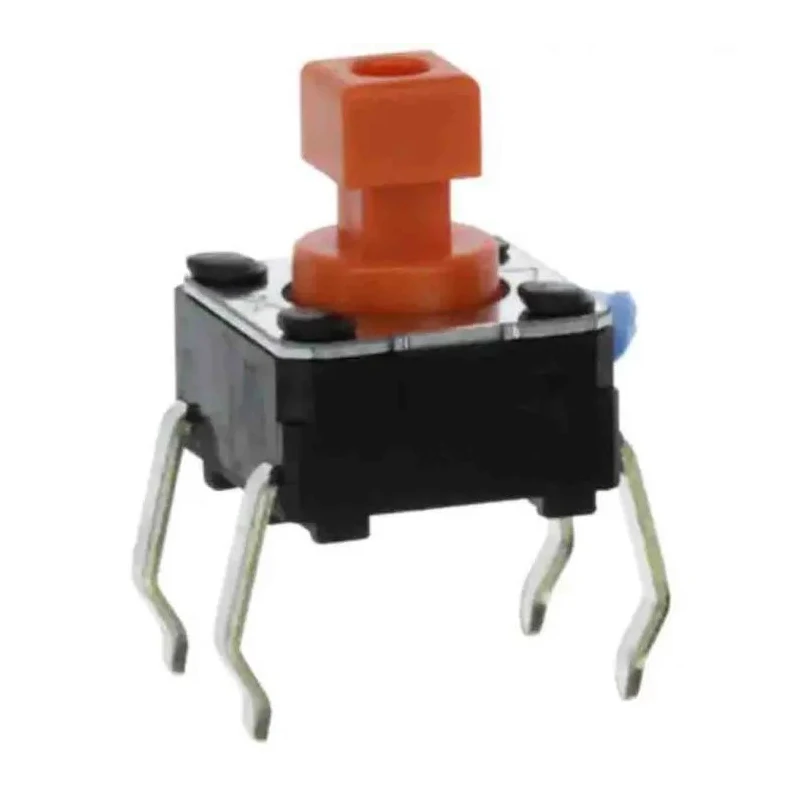

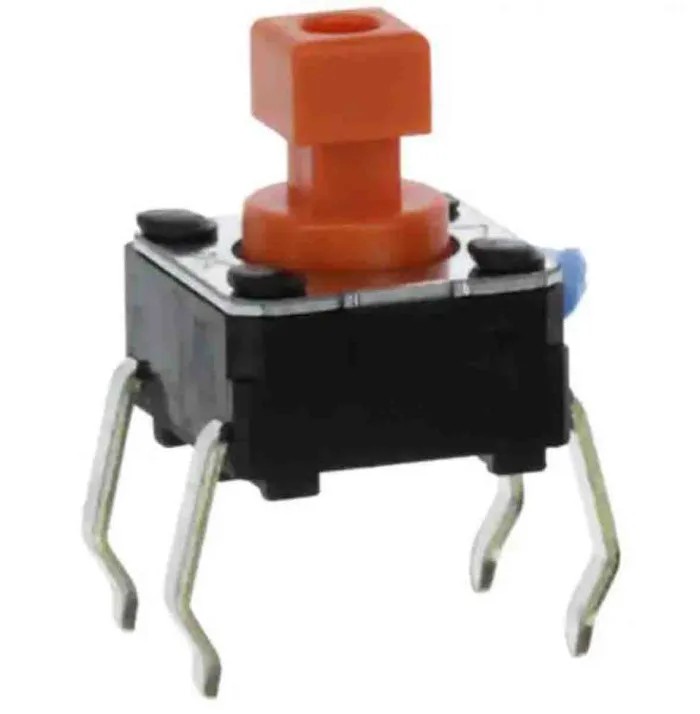

Omron Tactile Switch SPST 0.05A 24V dc Through Hole 6 mm Actuator IP00
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 7.3mm |
| Model | IP00 |
| IP Rating | IP00 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | B3F-1000 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Pin |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off |
| Actuator Colour | White |
| Actuator Length | 6mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Cap |
| Switch Contact Current | 0.05A |
| Operating Force | 2.55N |
| Mechanical Life | 100000Operations |
Key Features
- This tactile switch operates with a SPST contact configuration.
- The switch has a white cap actuator with a 6 mm length and width.
- It supports a maximum operating voltage of 24 V dc and a contact current of 0.05 A.
- The switch operates with an actuation force of 2.55 N ensuring precision control.
- It features through hole mount type for secure PCB installation.
- The device has a mechanical life of 100,000 operations ensuring reliability.
- Operates over a temperature range of -25°C to 70°C, rated IP00 for protection.
- This switch has gold plated contacts and complies with RoHS standards.
Product Description
Omron B3F-1055 tactile switch is a compact, reliable component designed for precise on-off switching applications in electronic devices. Featuring a white 6 mm cap actuator and an SPST contact configuration, it offers secure control with a contact rating of 0.05 A at 24 V dc. This tactile switch operates through hole mounting style, providing stability on printed circuit boards.
This switch is designed with gold plated contacts to ensure excellent conductivity and resistance to corrosion, contributing to an extended mechanical life of 100,000 operations. It operates effectively within the temperature range of -25°C to 70°C and conforms to RoHS environmental standards, making it suitable for contemporary electronics manufacturing.
The device's actuator has a force requirement of 2.55 N, balancing ease of use with operational precision. Its IP00 rating indicates that it is not protected against ingress of liquids or dust, which suits controlled indoor environments. This model forms part of the Omron B3F series, known for consistent performance and durability.
This tactile switch is ideal for industrial, laboratory, and commercial electronics applications where precise momentary switch activation is required. Typical usages include keyboard switches, control panels, and instrumentation systems where tactile feedback is essential for user input accuracy.
This tactile switch features an SPST contact configuration allowing single pole, single throw switching. The white cap actuator provides a smooth and noticeable tactile feedback on actuation. Gold plated contacts offer superior conductivity and corrosion resistance.
Through hole mounting ensures a reliable connection on printed circuit boards. Rated for 24 V dc voltage and 0.05 A current suitable for low power control circuits. The mechanical life rating of 100,000 operations guarantees long-term reliability.
Operating temperature range from -25°C to 70°C supports diverse environmental conditions. The device complies with RoHS standards ensuring eco-friendly manufacturing. IP00 rating indicates suitability for dry, dust-free environments.
Explore more Tactile Switches and related components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tactile switch supports a maximum operating voltage of 24 V dc and a contact current of 0.05 A.
It requires an actuation force of 2.55 N for operation, providing precise control.
The switch has a mechanical life rating of 100,000 operations, ensuring reliability over time.
This model features a through hole mounting type, which ensures secure installation on printed circuit boards.
It operates effectively within a temperature range of -25°C to 70°C.
The switch utilizes an SPST (Single Pole, Single Throw) contact configuration.
The switch has a width of 6 mm and a height of 7.3 mm, with a 6 mm length actuator.
It complies with RoHS standards, ensuring it meets environmental regulations.
This model features pin type terminals for connection.
The actuator of this switch is white in color.
This switch is part of the Omron B3F series, known for its reliable performance in electronic applications.
The switch has an IP00 rating, indicating it is not protected against ingress of liquids or dust.
