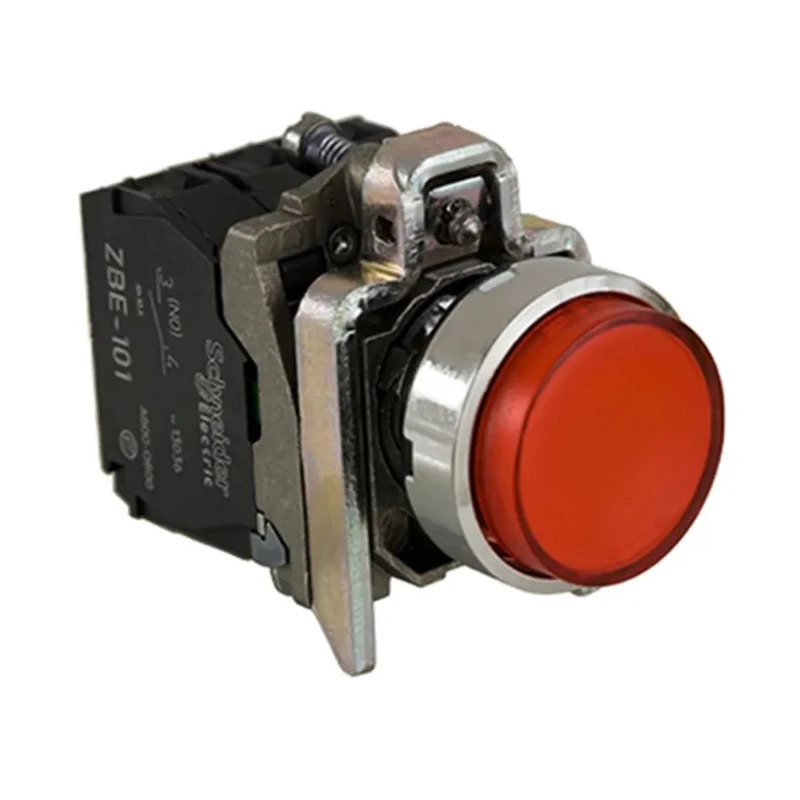

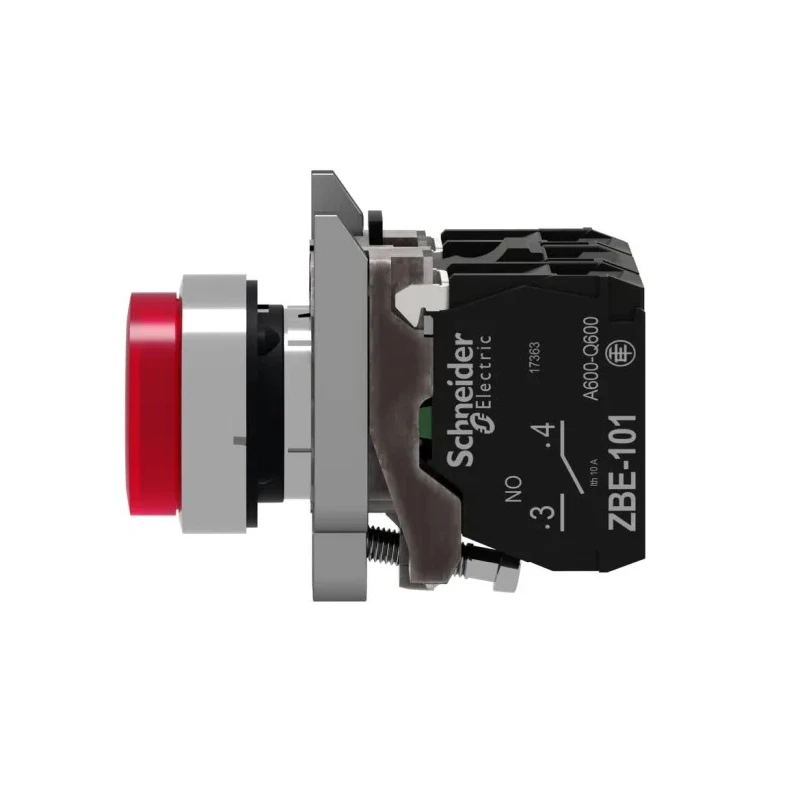

Schneider Electric Harmony XB4 Illuminated Push Button Switch Spring Return Panel Mount 22 mm Cutout SPDT Red LED XB4BW14B5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 47mm |
| Length | 101mm |
| Model | XB4BW14B5 |
| Width | 30mm |
| Mount Type | Panel |
| Series | Harmony XB4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| LED Colour | Red |
| Switch Operation | Spring Return |
| Actuator Colour | Red |
| Actuator Style | Round |
| Switch Contact Current | 10A |
| Contact AC Voltage | 120V ac |
| Better World Claim | Repairable by the End User |
| Legend | Blank |
Key Features
- This push button features a 22 mm panel cutout suitable for industrial panels.
- It has a red illuminated actuator with a round style to enhance visibility and ergonomics.
- The switch configuration is Single Pole Double Throw (SPDT) with 1 Normally Open and 1 Normally Closed contact.
- Designed for 110-120V AC/DC operation with a red LED for clear indication.
- The switch is durable, resistant to impact, dust, water, and vibration, with IP66/IP67/IP69/IP69K ratings.
- It supports a switching current of up to 10A and complies with relevant international standards.
- The product is repairable by the end user, contributing to sustainability.
Product Description
Schneider Electric XB4BW14B5 is an illuminated push button switch from the Harmony XB4 Series, designed for control panel applications. Operating at 110-120V AC/DC, it features a spring return mechanism ensuring reliable momentary operation.
This push button mounts easily into standard 22 mm diameter cutouts and includes a bright red LED for visual indication, enhancing operational clarity in industrial environments. The round actuator style and metal bezel provide both ergonomic comfort and durability.
The switch configuration is SPDT with 1 NO and 1 NC contact arrangement, supporting a switching current of 10A, suitable for various control circuit applications. It is designed to withstand harsh operating conditions, with IP66, IP67, IP69, and IP69K ingress protection ratings, making it resistant to dust, water, impact, and vibration.
This product meets multiple international standards including EN/IEC 60947 series, UL 508, JIS C8201, and CSA C22.2 No 14, ensuring compliance and safety in industrial use. Dimensions of 101 mm length, 47 mm height, and 30 mm width allow for space-saving installation.
This push button operates with spring return for momentary control. It features a red illuminated round actuator for clear visual feedback. Standard 22 mm panel cutout and screw terminal type provide easy mounting and connection.
Designed for a maximum contact current of 10A at 120V AC. Impact, dust, water, and vibration resistant with high IP ratings make it suitable for harsh environments. Repairable design supports sustainability and reduces replacement costs.
Compact metal bezel adds durability and aesthetic appeal. Compatible with industrial control systems requiring SPDT switching.
This Push Button Switch is ideal for industrial, manufacturing, and automation control panel applications where reliable and visible control switch operation is critical. It supports sustainability with its repairable design and meets stringent performance standards.
Explore the extensive range of Schneider Electric products and Harmony XB4 series solutions on EnvMart for enhanced industrial control and automation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration with 1 Normally Open (NO) and 1 Normally Closed (NC) contact.
The maximum switching current for this push button switch is 10A at 120V AC.
The dimensions of this model are 101 mm in length, 47 mm in height, and 30 mm in width.
This switch operates within a temperature range of -40°C to 70°C.
It uses a screw terminal type for easy mounting and connection.
The actuator is round and illuminated in red, enhancing visibility and providing clear operational feedback.
This model requires a panel cutout size of 22 mm for installation.
It has IP66, IP67, IP69, and IP69K ingress protection ratings, making it resistant to dust, water, impact, and vibration.
The spring return mechanism ensures reliable momentary operation of the switch.
It complies with multiple international standards including EN/IEC 60947 series, UL 508, JIS C8201, and CSA C22.2 No 14.
Yes, this push button switch is designed to be repairable by the end user, contributing to sustainability.
It is suitable for industrial, manufacturing, and automation control panel applications where reliable and visible control is critical.
