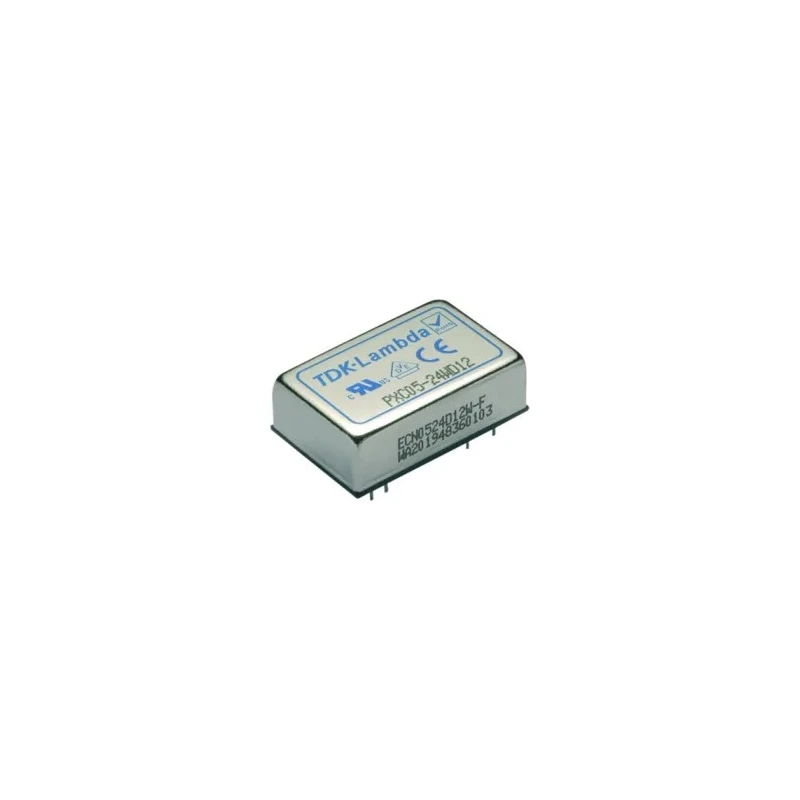

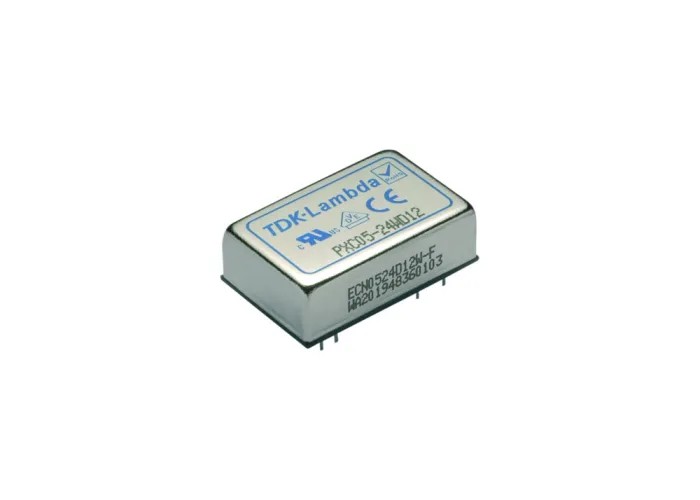

TDK-Lambda DC/DC Converter Dual Output 15V dc/190 mA, -15V dc, 75V dc Max Input, 18V dc Min Input, 5.7W Surface Mount PXC05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TDK-Lambda PXC05 DC/DC Converter, 15V dc/ 190 mA |
| Brand | TDK-Lambda |
| Efficiency | 0.79% |
| Length | 32mm |
| Model | PXC05 |
| Depth | 10.2mm |
| Gross Weight | 16g |
| Width | 11mm |
| Mount Type | Surface |
| Series | PXC05 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -25°C |
| MTBF | 3165000h |
| Number of outputs | 2 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 5.7W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V dc |
| Number of Pins | 10 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 190mA |
| Isolation Voltage | 1.6kV |
| Input Ratio | 4:1 |
| Output Voltage 2 | -15V dc |
| Input Ratio4 | 1 |
Key Features
- Dual outputs with 15V dc and -15V dc voltages for versatile electronic applications.
- Supports maximum input voltage up to 75V dc and minimum input voltage down to 18V dc.
- Delivers maximum output power of 5.7W with peak efficiency of 79%.
- Compact surface mount housing with DIP package type and 10 pins for easy PCB integration.
- Reliable operation across a temperature range of -25°C to +100°C.
- High isolation voltage of 1.6kV ensures safety and noise resistance.
- Low ripple and noise of 50mV peak-to-peak for stable power output.
- MTBF rated at 3,165,000 hours indicating high reliability and long service life.
Product Description
TDK-Lambda PXC05 dual output DC/DC converter model PXC05-48WD15 offers 5.7W power delivery with output voltages of 15V dc and -15V dc. Designed for surface mount applications, it supports input voltages from 18V dc up to 75V dc, making it suitable for a wide range of industrial electronics, laboratory equipment, and embedded systems.
The converter features a DIP package with 10 pins, ensuring compact size and ease of PCB integration. It maintains high efficiency at 79% with low ripple and noise of 50mV peak-to-peak, providing stable and clean power essential for sensitive electronic components.
Designed to operate reliably in harsh conditions, it operates over a broad temperature range from -25°C to 100°C and provides 1.6kV isolation voltage for electrical safety. The device boasts an exceptional MTBF of over 3 million hours, ensuring long-term reliability in industrial and manufacturing applications.
Its lightweight and compact form factor with dimensions 32 x 11 x 10.2 mm and weight of 16 grams suit high-density PCB layouts. Ideal for power supply and distribution systems in industrial control, instrumentation, telecom, and automotive electronics.
Dual 15V dc and -15V dc outputs. Wide 18V to 75V dc input voltage range. Surface mount DIP 10-pin package. Low ripple and noise for circuit stability. High isolation voltage (1.6kV) for safety. Excellent MTBF of 3,165,000 hours.
Compact size and lightweight design. Suitable for industrial and embedded electronics.
The TDK-Lambda PXC05 series is recognized for its quality and reliability in electronics power conversion. Browse our extensive selection of DC/DC Converters for all your industrial and commercial power applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 5.7W.
It provides dual output voltages of 15V dc and -15V dc.
The input voltage range for this unit is from 18V dc to 75V dc.
The efficiency rating of this DC/DC converter is 79%.
It has a high isolation voltage of 1.6kV, ensuring safety and noise resistance.
The dimensions of this model are 32 x 11 x 10.2 mm, and it weighs 16 grams.
It operates reliably over a temperature range from -25°C to 100°C.
This model features two outputs.
The ripple and noise level is 50mV peak-to-peak.
It supports surface mount installation with a DIP package type.
The mean time between failures (MTBF) is rated at 3,165,000 hours.
This unit has 10 pins for easy PCB integration.
