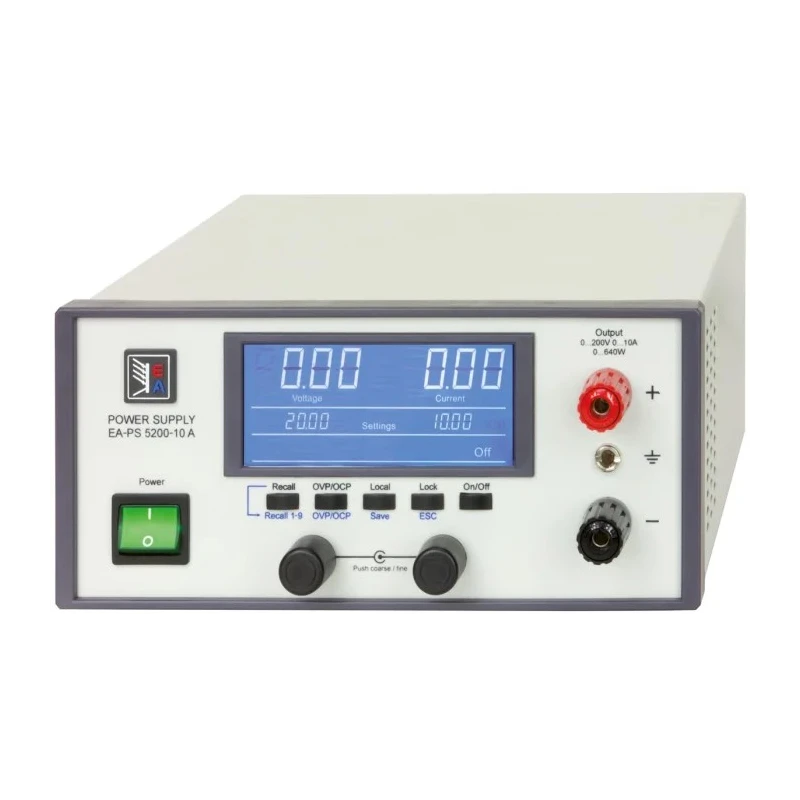

EA Elektro-Automatik Laboratory Bench Power Supply, 1-Output 0V to 200V, 640W, 10A Max EA-PS 5200-10 A

EA Elektro-Automatik EA-PS 5200-10 A Bench Power Supply is a high-performance laboratory instrument designed for precise voltage and current output applications. It supports a single output channel with an adjustable voltage range from 0 V to 200 V and a maximum output current of 10 A, delivering up to 640 W of power. This power supply is ideal for educational institutions, industrial testing, laboratories, production, and manufacturing units requiring reliable and safe DC power sources.

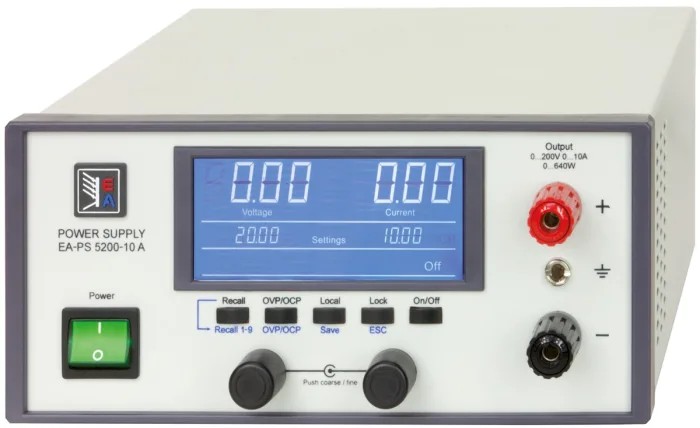

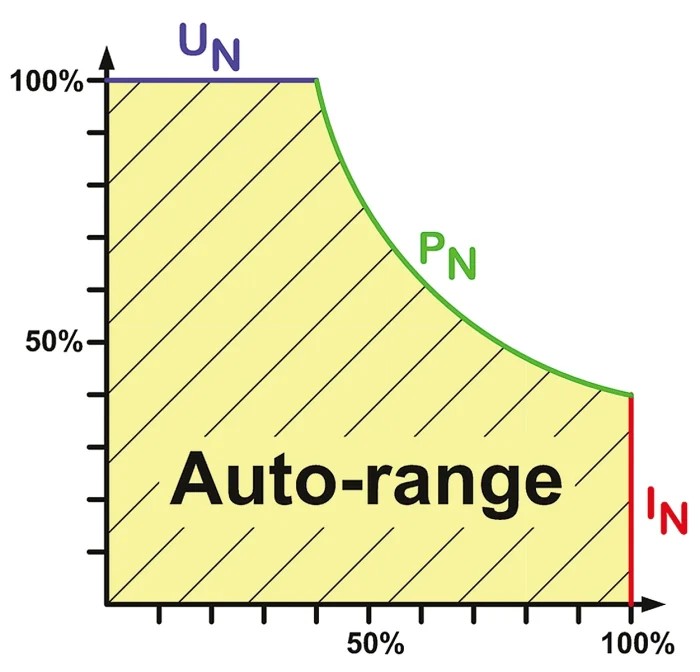

The unit features a clear blue LCD display presenting all essential values and operating status, facilitating easy monitoring. It incorporates a flexible power regulated output stage and offers high efficiency of up to 92%, minimizing energy losses during use. The power supply also includes a USB interface port, enabling integration with automated test systems and remote control via SCPI command language.

Safety is prioritized with integrated overvoltage protection (OVP), overcurrent protection (OCP), and overtemperature protection (OTP), which safeguard connected devices from damage. The device switches off output immediately if the current exceeds 110% of the nominal setting, preventing faults and component damage. Temperature-controlled fans provide effective cooling to maintain stable operation within the specified ambient temperature range of 0°C to 50°C.

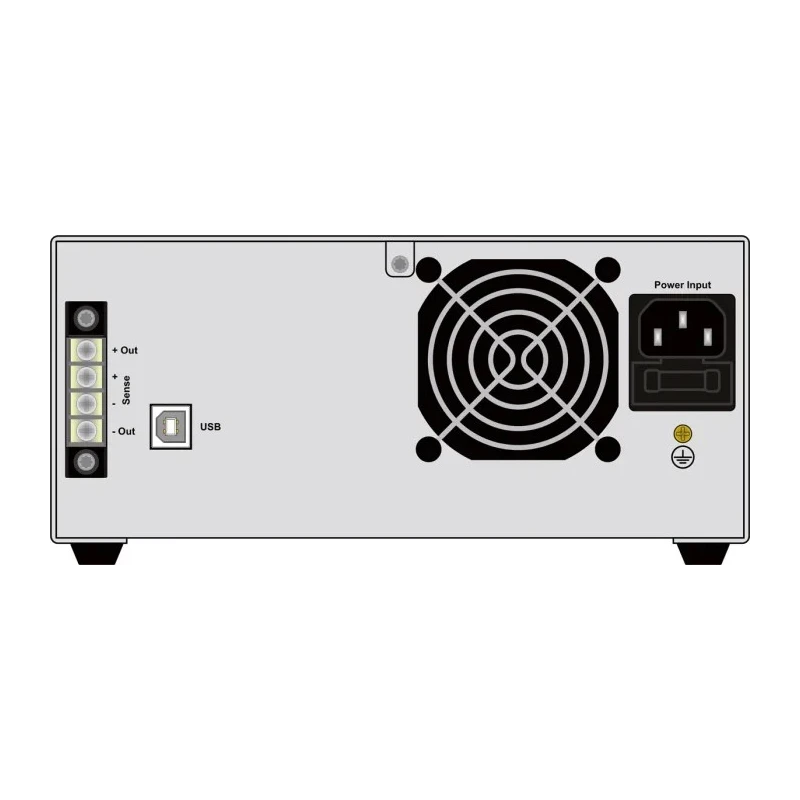

The ergonomically closed chassis top and bottom enhance durability and ease of maintenance. Its compact footprint with dimensions 94 mm height, 200 mm width, and 301 mm depth makes it suitable for benchtop use in laboratory and workshop environments. The power supply accepts input voltages from 90 V to 264 V AC and includes an IEC 320 plug for standard compatibility.

Certified to meet RoHS standards and manufactured in Germany, this EA Elektro-Automatik model assures both compliance and premium build quality. It suits numerous applications including education, research & development, industrial testing, and production lines where high-accuracy and reliable power delivery is essential.

Equipped with one output channel for precise voltage and current supply. Features blue LCD display showing all values and status clearly. Includes integrated USB port for device communication and control. Built-in safety functions: overcurrent, overvoltage, and overtemperature protection.

Operates efficiently with up to 92% efficiency and power regulation. Temperature controlled fans ensure reliable cooling during operation. Wide input supply voltage range from 90 V to 264 V AC. Compact size with dimensions 94 mm (H) x 200 mm (W) x 301 mm (D).

Operating temperature range from 0°C to 50°C for various environments. Manufactured in Germany ensuring high quality and compliance with RoHS. Explore the full range of EA Elektro-Automatik bench power supplies and other test and measurement instruments at EnvMart.
