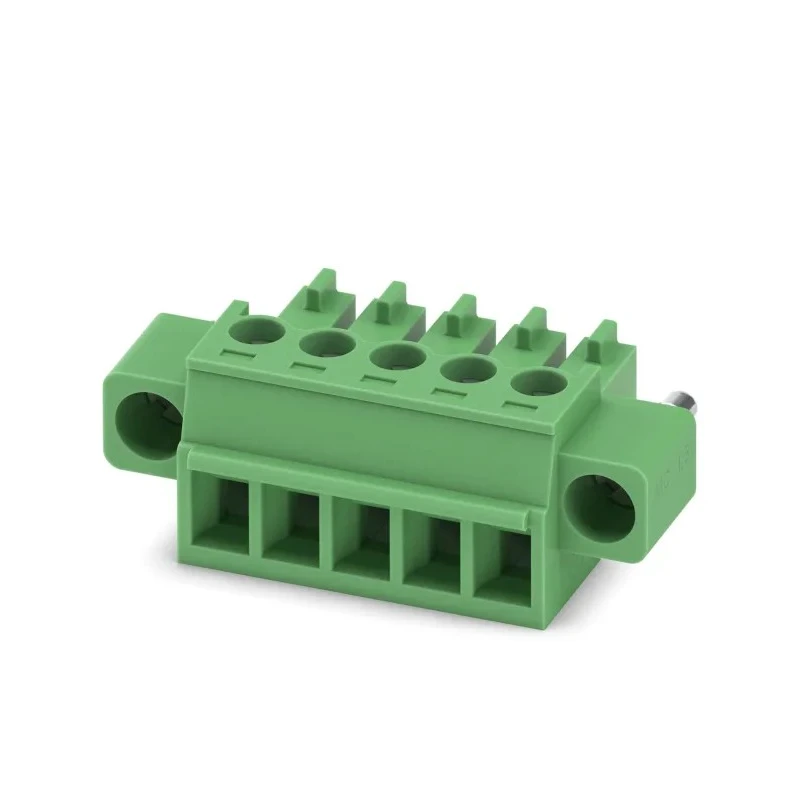

Phoenix Contact Pluggable Terminal Block 5-Contact 3.81 mm Pitch 320V Polyamide Housing MC 1.5/5-STF-3.81 1827732
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 8A |
| Length | 29.44mm |
| Model | 1827732 |
| Depth | 11.1mm |
| Width | 16.1mm |
| Housing Material | Polyamide |
| Series | MC 1.5/5-STF-3.81 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 5 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Screw |
Key Features
- Constructed with durable polyamide housing ensuring excellent thermal and electrical insulation.
- Screw connection method provides secure wire connections resistant to high vibration.
- Rated current of 8A supports reliable power transfer up to 320V voltage rating.
- Low profile design with only 8mm height above PCB saves space in compact installations.
- Contacts made from copper alloy with tin plating for corrosion resistance and optimal conductivity.
- Straight orientation and female connector gender for straightforward PCB integration.
- Compliance with RoHS standards ensures environmental safety and sustainability.
- Operating temperature range suitable for demanding industrial environments.
Product Description
Phoenix Contact 1827732 pluggable terminal block is a precision-engineered PCB header designed to provide safe and reliable connections for electronic circuits. Featuring a 5-contact configuration with a 3.81 mm pitch and a single row, this terminal block facilitates efficient transfer of signals and power to printed circuit boards.
The terminal block uses a screw connection method with tension sleeves, ensuring secure and vibration-resistant wire attachments. The female connectors firmly plug into male headers mounted on PCBs, enabling quick make-and-break connections ideal for both permanent and temporary circuitry applications.
Constructed with polyamide housing, the terminal block offers excellent thermal and electrical insulation to prevent overheating and short circuits. The contacts are made from copper alloy plated with tin, providing outstanding conductivity and corrosion resistance. It complies with RoHS standards for environmental safety and carries a UL94 V0 flammability rating to self-extinguish in case of fire.
Designed to operate at currents up to 8A and voltages up to 320V, the compact design stands only 8 mm above the PCB, making it suitable for space-constrained electronic assemblies. The device supports wire sizes from 28 AWG to 16 AWG, accommodating a wide range of wiring requirements.
This Phoenix Contact terminal block is ideal for industrial, laboratory, electronic manufacturing, and automation system applications where reliable and durable PCB wiring is critical. Accessories such as marker cards and cable housings are available to enhance installation efficiency.
Durable polyamide housing ensures thermal and electrical insulation. Screw connection secures wires firmly under vibration conditions. Copper alloy contacts plated with tin for corrosion resistance and conductivity. Compact height of 8 mm suitable for dense PCB layouts.
Supports 8A current and 320V voltage ratings for industrial use. Compliant with RoHS and UL94 V0 standards for safety performance. Facilitates fast, reliable make-and-break connections. Designed for use in manufacturing, industrial controls, and electronic testing.
Explore our extensive catalog of Phoenix Contact components and Pluggable Terminal Blocks at EnvMart to find reliable solutions tailored to your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a current of 8A and a voltage of up to 320V.
The pitch size of the contacts is 3.81 mm.
It features a polyamide housing and contacts made from copper alloy plated with tin for corrosion resistance and optimal conductivity.
The terminal block has a low profile design with a height of only 8 mm above the PCB.
This terminal block supports wire sizes from 28 AWG to 16 AWG, with a minimum wire size of 2 mm² and a maximum of 1.5 mm².
It uses a screw connection method, which provides secure wire connections that are resistant to high vibration.
Yes, it complies with RoHS standards for environmental safety and has a UL94 V0 flammability rating.
The terminal block measures 29.44 mm in length, 16.1 mm in width, and 11.1 mm in depth.
It is suitable for applications in industrial controls, electronic manufacturing, and automation systems where reliable PCB wiring is critical.
Accessories such as marker cards and cable housings are available to enhance installation efficiency.
The terminal block is manufactured in Germany.
