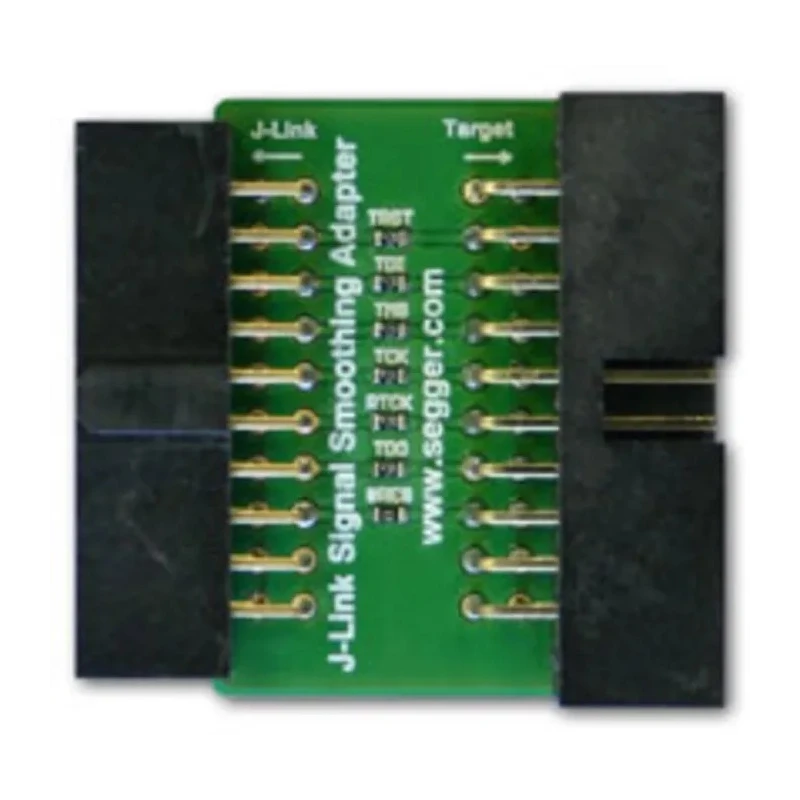

SEGGER Signal Smoothing Adapter for J-Link Debug Probe 8.06.12 J-Link Signal Smoothing Adapter

SEGGER 8.06.12 J-Link Signal Smoothing Adapter is an accessory designed to be inserted between the J-Link debug probe and the debug target, effectively overcoming signal integrity issues encountered during development and debugging processes. It operates at typical J-Link probe signal levels and voltages, providing a hardware solution to troubleshoot overshoot and ringing caused by target load capacitance.

Featuring user adjustable series resistors (default nominal value 47 ohms), the adapter allows damping of critical signal rise and fall times, leading to enhanced signal stability and improved debugging accuracy. The adapter's design improves signal integrity, facilitating a more reliable connection between the debug probe and the target system.

This adapter is particularly beneficial in industrial, laboratory, and development tool applications where signal quality is paramount for precise programming, testing, and debugging of embedded systems. It fits seamlessly into existing debugging setups involving J-Link Debug Probes.

Designed for use with J-Link Debug Probe to improve signal quality. User adjustable series resistors with default 47Ω for signal damping. Effectively reduces overshoot and ringing in signals caused by target load capacitance.

Improves signal rise and fall times for more reliable debugging. Compact adapter form factor suitable for inline deployment. Ideal for development, testing, and debugging environments requiring signal integrity improvements.

Does not have specific standards or approvals.

This adapter supports electronic component development, STEM education, and firmware debugging applications. Its robust design enables versatile use in automation, embedded systems development, and technical validation tasks.
