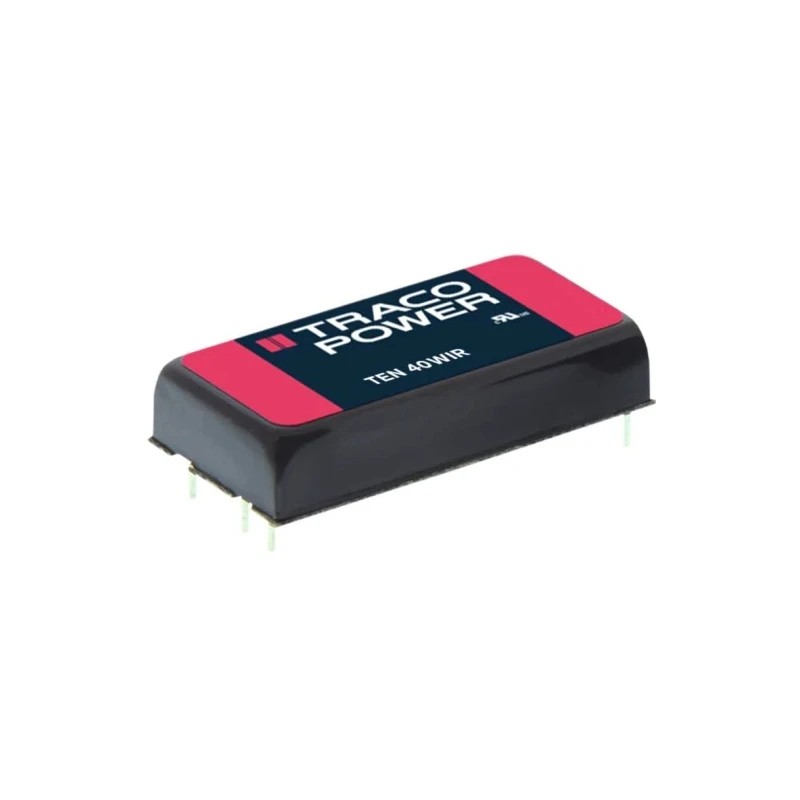

TRACOPOWER DC/DC Converter Dual Output 24V DC 833mA 36V DC Input 9V Input 40 W Through Hole Metal Package TEN 40-2425WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 40WIR DC/DC Converter, 24V dc/ 833 |
| Brand | TRACOPOWER |
| Efficiency | 0.91% |
| Length | 25.4mm |
| Model | TEN 40-2425WIR |
| Depth | 10.2mm |
| Gross Weight | 32g |
| Width | 50.8mm |
| Mount Type | Through Hole |
| Series | TEN 40WIR |
| Maximum Operating Temperature | 85°C |
| Package Type | Metal |
| Minimum Operating Temperature | -40°C |
| MTBF | 900000h |
| Number of outputs | 2 |
| Ripple and Noise | 125mV Pk-Pk |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 833mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | -24V dc |
| Input Ratio4 | 1 |
Key Features
- Supports wide input voltage from 9V to 36V DC for versatile applications.
- Provides dual outputs with 24V DC voltage and 833mA output current.
- Designed for through-hole mounting with a compact metal package.
- Offers high efficiency of approximately 91% across load ranges.
- Built to operate in temperatures from -40°C to +85°C with over-temperature protection.
- Features low ripple and noise of 125mV peak-to-peak for clean power output.
- Includes remote On/Off functionality to optimize control in complex systems.
- Electrical isolation of 1.6kV DC ensures safety and signal integrity.
Product Description
TRACOPOWER TEN 40-2425WIR is a high-performance DC/DC converter module designed to provide reliable dual output voltages of ±24V DC with an output current of 833mA. The unit supports a very wide input voltage range from 9V to 36V DC, making it suitable for diverse power supply requirements in industrial, railway, and transportation applications. Encased in a robust metal package designed for through-hole mounting, it ensures durability and easy PCB integration.
This converter demonstrates high efficiency of approximately 91%, minimizing energy loss and heat generation. It operates safely in extreme environments, ranging from -40°C up to 85°C, and is equipped with over-temperature protection to enhance operational longevity. Furthermore, the low ripple and noise output of 125mV peak-to-peak guarantees clean power delivery, crucial for sensitive electronic equipment.
The device incorporates a 1.6kV DC isolation voltage between input and output for enhanced safety and interference reduction. Remote On/Off control functionality allows flexible system integration and power management. With a mean time between failure (MTBF) of 900,000 hours, it offers exceptional reliability.
This model is ideally suited for telecommunications, wireless networks, industrial control systems, measurement instruments, as well as railway and transportation electronics meeting demanding EN 50155 certification standards.
Supports a wide input voltage range of 9V to 36V DC. Dual outputs of ±24V DC with 833mA current per output. Through-hole metal package for durable mounting. High efficiency close to 91% for energy savings. Operating temperature range from -40°C to +85°C with protection features.
Low ripple and noise of 125mV Pk-Pk ensures clean DC output. Remote On/Off control function for flexible system management. Electrical isolation at 1.6kV DC enhances safety. Reliable and robust design meeting railway standards EN 50155.
Discover more DC/DC Converters and power supply solutions in our extensive electronics catalogue at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 9V to 36V DC.
It provides dual outputs of ±24V DC with a maximum output current of 833mA per output.
This unit has an efficiency rating of approximately 91%.
The operating temperature range is from -40°C to +85°C.
It features an electrical isolation voltage of 1.6kV DC.
The ripple and noise output is specified at 125mV peak-to-peak.
This model is designed for through-hole mounting.
The dimensions of this converter are 25.4mm in length, 50.8mm in width, and 10.2mm in depth.
It is suitable for telecommunications, wireless networks, industrial control systems, measurement instruments, and railway and transportation electronics.
This converter provides two outputs.
The mean time between failure (MTBF) is 900,000 hours.
The gross weight of this model is 32g.
