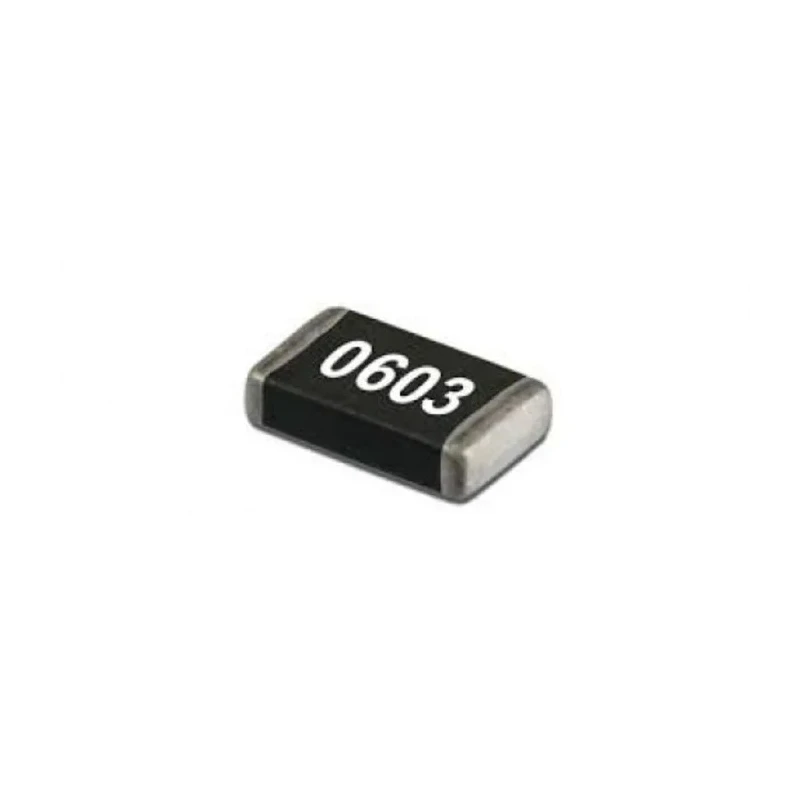

Yageo 10 pF Multilayer Ceramic Capacitor, 50V dc, ±5 % Tolerance, Surface Mount 0603 CC0603JRNPO9BN100

Yageo CC0603JRNPO9BN100 is a high-precision multilayer ceramic capacitor designed for surface mount technology applications. Featuring a 10 pF capacitance with a voltage rating of 50V dc and ±5 % tolerance, this capacitor offers excellent thermal stability and consistent performance over wide operating temperature ranges from -55°C to 125°C.

The construction employs a stacked ceramic dielectric with C0G material, classified as Class I suppression, providing minimal capacitance variation with temperature and frequency. Its compact 0603 package measures 1.6 mm by 0.8 mm by 0.8 mm, making it suitable for high-density electronic circuits and compact device designs.

Compliance with IEC 60384-1 and IEC 60384-21/22 ensures high quality and reliability for industrial and commercial applications. The capacitor is supplied in convenient paper/PE tape reels of 4000 pieces, optimized for automated surface mount assembly lines.

Commonly used in electronic assemblies such as television receivers, cameras, and tuners, this multilayer ceramic capacitor provides stable capacitance and excellent electrical characteristics necessary for precision filtering, timing, and tuning applications.

This capacitor uses a stacked construction with C0G dielectric for high stability. It supports a maximum operating temperature of 125°C and minimum of -55°C. The component conforms to IEC 60384-1 and IEC 60384-21/22 standards.

Dimensions are compact at 1.6 mm length, 0.8 mm width, and 0.8 mm height. Packaging is supplied on paper/PE tape reel containing 4000 units. This capacitor is ideal for reliable surface mount electronic component use in televisions, cameras, and tuners.

It features surface mount termination and is part of Yageo's standard series.

Suitable for industrial, commercial, and consumer electronic manufacturing, this capacitor is an essential component for demanding electronic filter and timing circuits, delivering dependable performance in harsh environments.
