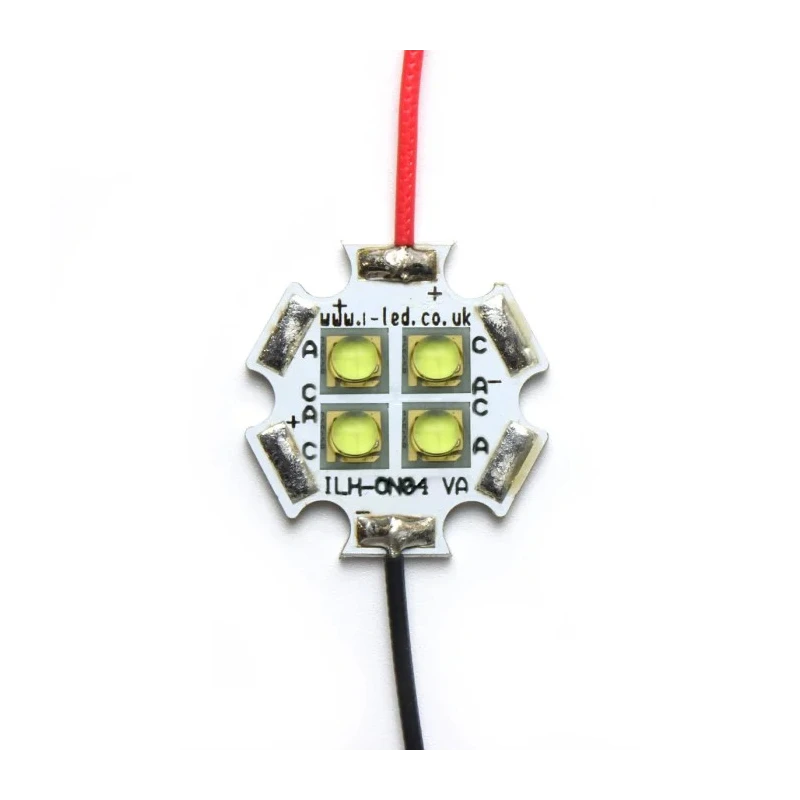

Intelligent LED Solutions OSLON 80 4+ PowerStar 4-LED Orange, Red LED Array ILH-ON04-RDOR-SC211-WIR200.
Specifications
| Country of Origin | India |
|---|---|
| Brand | Intelligent LED Solutions |
| Current | 1A |
| Model | ILH-ON04-RDOR-SC211-WIR200. |
| Connection Type | Solder |
| Output type | Constant Current |
| Series | OSLON 80 4+ PowerStar |
| Outside diameter | 20mm |
| Number Of Leds | 4 |
| Power Dissipation | 9.12W |
| Standards/Approvals | RoHS |
| LED Colour | Orange, Red |
| Fixing Hole Diameter | 2mm |
| LED Voltage | 10.4, 8V |
| Typical Luminous Flux | 320lm |
| PowerStar size (L x W x H) | 20mm x 20mm x 3.85mm |
Key Features
- The array contains four high-performance Oslon SSL 80 ThinGan LEDs.
- Operates with a constant current output and a drive current of up to 1 Ampere.
- Typical luminous flux is 320 lumens with low power dissipation of 9.12 Watts.
- Compact dimensions of 20 mm x 20 mm x 3.85 mm enable versatile installation.
- Pre-wired with 200 mm connecting wires for ease of use in various configurations.
- Includes onboard driver and secondary optics with a 80° silicone resin lens.
- Mounting holes accommodate M3 screws for secure attachment.
- RoHS compliant and designed without automotive standards.
Product Description
Intelligent LED Solutions ILH-ON04-RDOR-SC211-WIR200 is a 4-LED Orange and Red LED Array from the OSLON 80 4+ PowerStar series designed for high-performance lighting applications with a power dissipation of 9.12 Watts.
This LED array features four Oslon SSL 80 ThinGan LEDs built on aluminium substrates to ensure excellent thermal management. The design allows the array to remain cool at drive currents up to 1000 mA, supported by a low thermal resistance of 7 K/W.
Pre-wired with 200 mm length wires, the module is convenient for connected lighting setups and can be linked to form longer chains. The compact size of 20 mm x 20 mm x 3.85 mm, combined with mounting holes for M3 screws, facilitates easy and secure installation in various fixtures.
The LED array outputs a constant current, delivering typical luminous flux of 320 lumens, optimized by 80° silicone resin lenses for broad light dispersion. It is RoHS compliant and designed without automotive approvals, making it ideal for industrial, commercial, retail, entertainment, and decorative lighting uses.
PowerStar LED arrays should be mounted on suitable heat sinks to avoid overheating, which may cause damage or failure. They should be powered using constant current sources with current limiting to protect the device integrity.
The array contains four high-performance Oslon SSL 80 ThinGan LEDs. Operates with a constant current output and a drive current of up to 1 Ampere. Typical luminous flux is 320 lumens with low power dissipation of 9.12 Watts.
Compact dimensions of 20 mm x 20 mm x 3.85 mm enable versatile installation. Pre-wired with 200 mm connecting wires for ease of use in various configurations. Includes onboard driver and secondary optics with a 80° silicone resin lens.
Mounting holes accommodate M3 screws for secure attachment. RoHS compliant and designed without automotive standards. Suitable for general lighting, decorative lighting, retail, task lighting and entertainment lighting. Explore the Intelligent LED Solutions product range at EnvMart for advanced LED arrays and lighting components that meet industrial and commercial standards.
Explore more products in our LED Lighting Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The typical luminous flux of this LED array is 320 lumens.
This model has a power dissipation of 9.12 Watts.
The dimensions of the LED array are 20 mm x 20 mm x 3.85 mm.
The maximum drive current for this LED array is 1 Ampere.
It provides a constant current output.
The connection type for this LED array is solder.
The LEDs are built on aluminium substrates to ensure excellent thermal management.
The fixing hole diameter for mounting is 2 mm.
Yes, it is RoHS compliant.
This LED array is suitable for general lighting, decorative lighting, retail, task lighting, and entertainment lighting.
It includes secondary optics with an 80° silicone resin lens for broad light dispersion.
The array contains four high-performance Oslon SSL 80 ThinGan LEDs.
