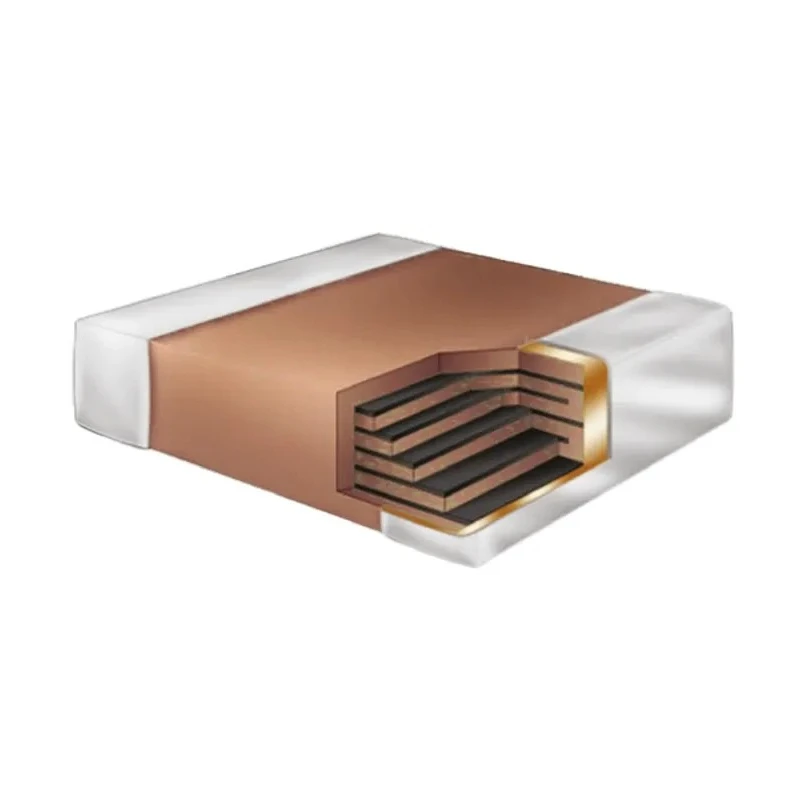

KEMET 13 pF Multilayer Ceramic Capacitor, 25V dc, ±5 %, Surface Mount, HiQ-CBR Series CBR02C130J3GAC

KEMET CBR02C130J3GAC is a 13 pF Multilayer Ceramic Capacitor designed for surface mount applications. Rated at 25V dc with a ±5% tolerance, this component supports high precision in electronic circuits. Its C0G dielectric construction provides exceptional temperature compensation and low loss characteristics, making it ideal for environmentally sensitive designs.

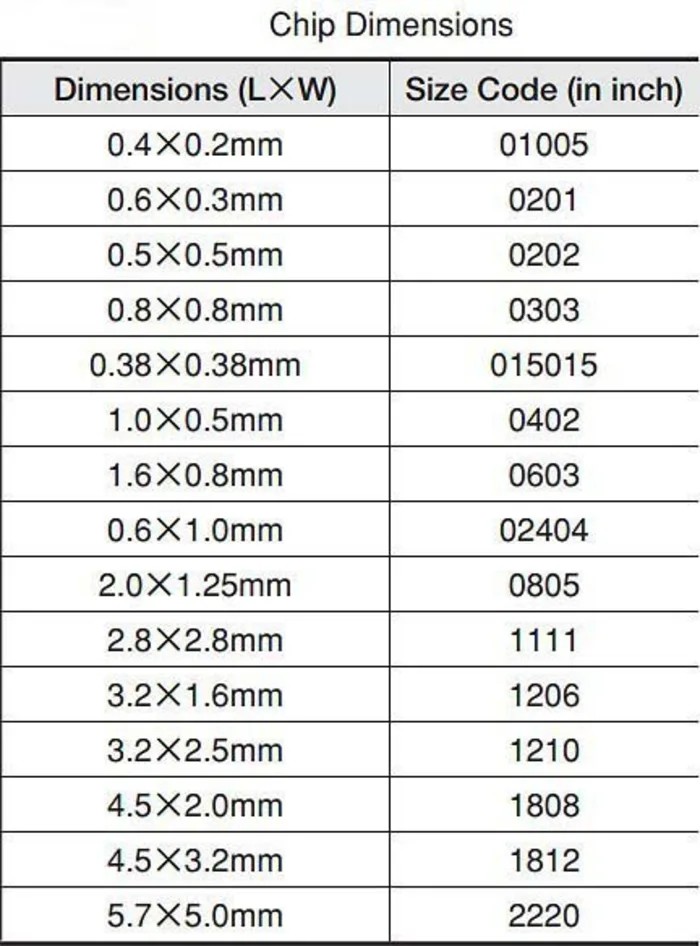

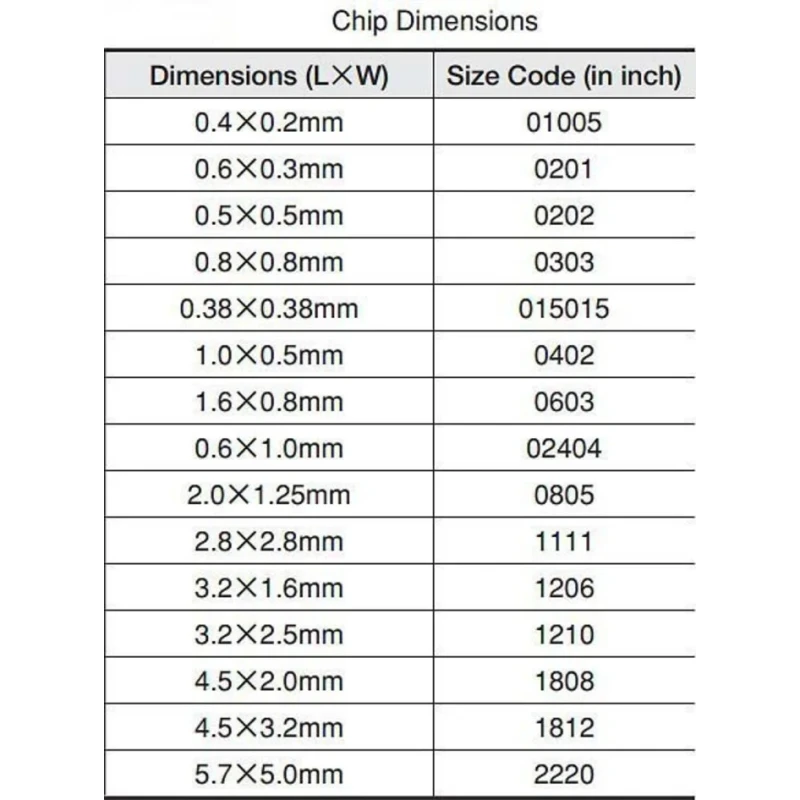

Measuring only 0.6mm by 0.3mm by 0.3mm in the 0603 package, it fits compact PCB layouts, commonly found in mobile phones, video devices, and tuner circuits. The capacitor adheres to stringent automotive grade AEC-Q200 standards and multiple industry approvals, including EIA 481, EIA 556, EIA 624, IPC-7351, and J-STD-020, demonstrating its quality and reliability for demanding environments.

Designed with nickel barrier terminations plated with Tin (NiSn), it ensures robust solder connections and longevity. The component is supplied in tape & reel packaging to support high volume surface mount assembly processes. It operates over a wide temperature range from -55°C to 125°C, suitable for many industrial and automotive applications requiring high stability.

Applications include use in mobile phones, video and tuner designs that demand temperature compensated, stable capacitor performance. The C0G/NP0 dielectric formulation is well suited for temperature stable circuits where minimal capacitance variation is critical.

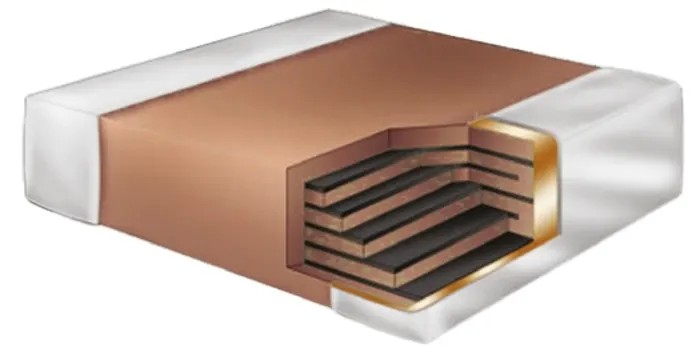

Constructed with stacked dielectric layers using C0G formulation ensuring temperature stability. Compact 0603 package size with dimensions 0.6mm length, 0.3mm width, and 0.3mm height. Meets automotive standard AEC-Q200 and various industry standards including EIA and IPC specifications.

Suitable for use in mobile phones, video and tuner designs requiring high reliability and stability. Operates reliably within a temperature range from -55°C to 125°C. Termination type is solder with nickel barrier terminations plated with Tin.

Packaged in tape and reel format for automated surface mount assembly. Explore more electronic components and capacitors in the EnvMart Electronics & Electricals category optimized for industrial and manufacturing applications.
