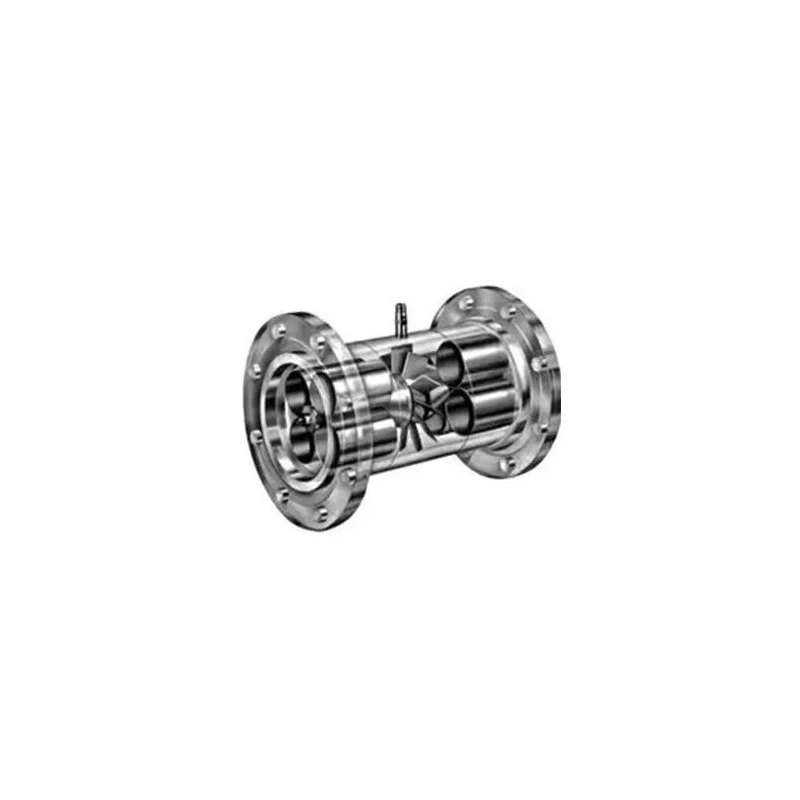

Flange End Turbine Flow Meter LF-TF
Specifications
| Accuracy | -0.005 |
|---|---|
| Display | Local| Remote |
| Output | 4-20mA |
| Brand | LFIA |
| Power Supply | 220V AC| 24V DC |
| Material | Stainless Steel |
| Packaging Type | Single Box |
| Operating Temperature | 0 to 55 degC (Optional 150degC max) |
| Pressure | 10kg/cm2 or 40kg/cm2 max |
| Model | LF-TF |
| Operating Pressure | 4 kg/cm2 |
| Viscosity | 20cp max |
| Process connection | 150 NB ANSI SS Flange |
| Flow range | As per Size Selection |
| Application Media | Water |
| Line Size | 15NB to 300NB |
| Electronics Enclosure | Aluminum |
| Rotor | Stainless Steel |
| Flow Rate Display | 4 digits LED |
| Totalizer Display | 8 digit LED |
Key Features
- Permanent standard conduit connection
- Pre calibrated rotor with accouracy
- Flanged or threaded type end connection
- Flow vanes for low rates
Product Description
We are offering a wide range of Turbine Flow Meters to our clients. The flowing media engages a vaned rotor causing it to rotate at an angular velocity proportional to the flow rate. Liquid flows through the turbine housing causing an internal rotor to spin. As the rotor spins, an electrical signal is generated in the pickup coil. The pick-of coil senses the spinning motion of the rotor inside the pipe & converts it into a pulsating electrical signal. The summation of the pulsating electrical signal is directly related to the total flow. The frequency is linearly proportional to the flow rate which is converted to an mA signal by electronic circuitry. Flow rate Indicator / Totalizer / Transmitter and Controllers are available in Local/Remote and Panel Mounted Options. .0"=1
- Flow vane hub for rotor assembly
- Tungsten carbide roror shaft bearing
- Retaining rings
- All-metal sturdy flow meter body.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The accuracy of this flow meter is -0.005.
The flow range is determined based on size selection.
It provides a 4-20mA output signal.
The maximum operating pressure is 40 kg/cm².
The flow meter is made of stainless steel, including the rotor and the body.
It can operate on either 220V AC or 24V DC power supply.
The operating temperature range is from 0 to 55 degrees Celsius, with an optional maximum of 150 degrees Celsius.
It features a local and remote display, with a 4-digit LED flow rate display and an 8-digit LED totalizer display.
The maximum viscosity for the application media is 20 centipoise (cp).
It has a 150 NB ANSI SS flange process connection.
The LF-TF is compatible with line sizes ranging from 15NB to 300NB.
It is suitable for measuring water as the application media.
