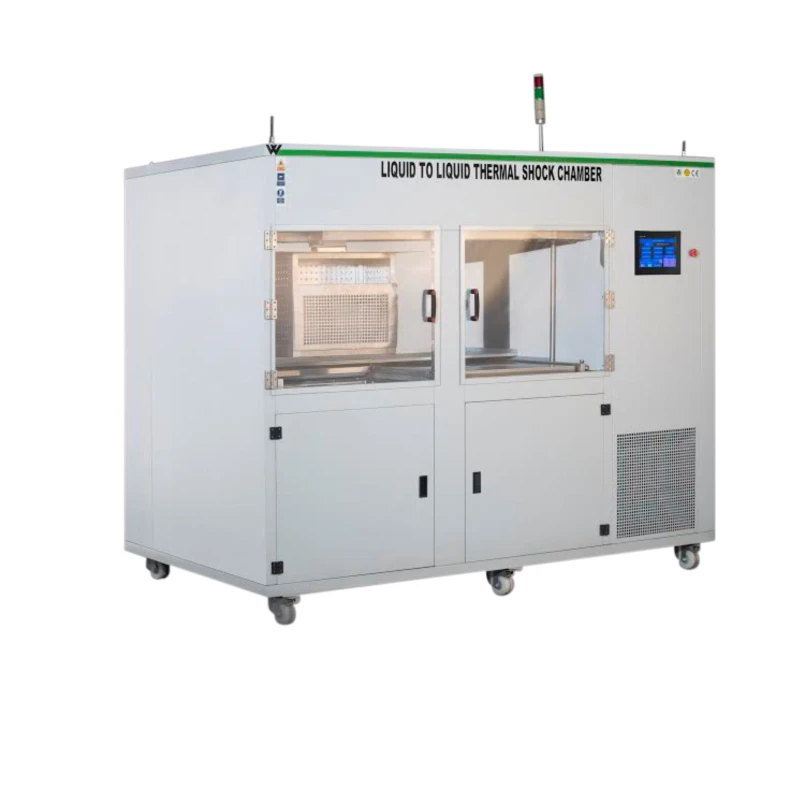

Liquid to Liquid Thermal Shock Chamber

To observe the product characteristicsand failure occurrences caused by different materials and their thermalexpansion coefficients, thermal shock testing is subjected to the product. Inthermal shock testing alternating high and low temperatures are fed in thechamber.WEIBER designs and manufactures customizedTHERMAL SHOCK CHAMBERS, depending on configuration of the chamber chosen."Liquid-to-Liquid"type thermal shock testing is now attracting attention for its ability toimpose higher thermal stress on specimens than "Air-to-Air" typetesting, and to deliver test results more rapidly.WEIBER Liquid thermalshock chambers consist of separately controlled hot and cold baths.Applications:        TestHouses and Research        AutomotiveIndustry        ElectronicsIndustry        Aviationand Space Industries        LaboratoryEquipment.TECHNICAL MATRIX: Specification Liquid to Liquid External Dimension (WXDXH) 1140mm x 1785mm x 1240mm (can be adjusted on request) Internal Dimension (WXDXH) 260mm x 350mm x 440mm (can be adjusted on request) Sample Basket (WXDXH) 120mm x 150mm x 120mm (can be adjusted on request) Temperature Range Hot bath: +70 C to +200 C, Cold bath: -65 C to 0 C Temperature Fluctuation 2C Max. Load Current 43A Noise 65dB or less Temperature Controller HMI+PLC Display LCD Safety Thermostats   Automatic Temperature Setting Yes Adjustable Limits Yes Power Requirements 415V, 50/60Hz, 3 Ph
