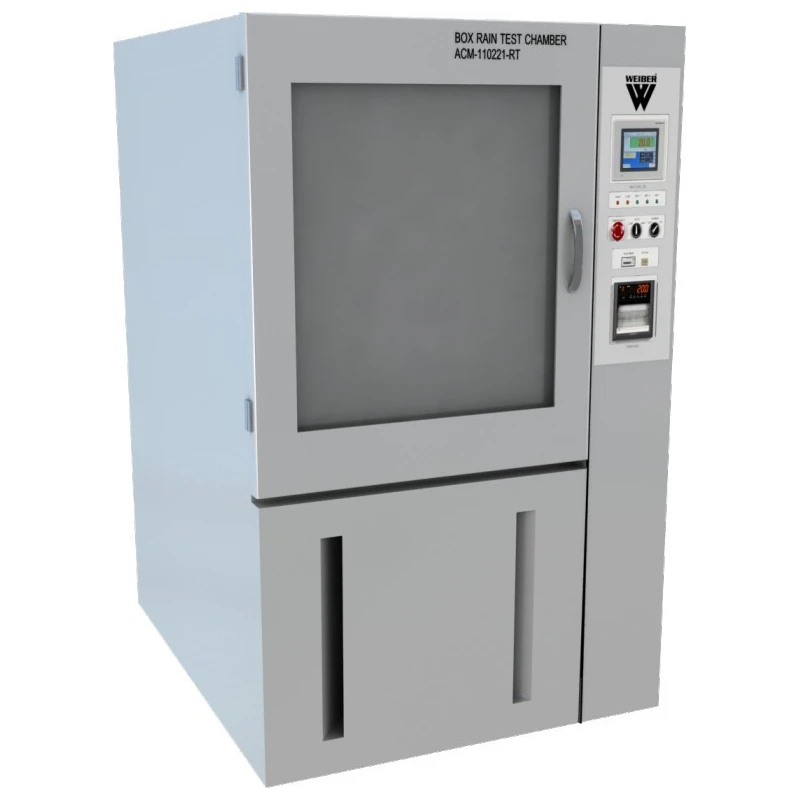

Weiber Rain Test Chamber

Name: Weiber Rain Test Chamber
Brand: WEIBER
SKU: AAQCM
Price: 11.59 USD
Availability: InStock



SKU AAQCM Category Laboratory Chamber Brand WEIBER Condition New

Specifications

Country of Origin	India
Warranty	As per Manufacturer

Key Features

Bulk Quantities Available

Product Description

WEIBERdesigns and manufactures standard as well as customized water spray testchamber for evaluating various automotive, electrical and electronics itemsunder water, rain or shower conditions. The chamber interrogates theperformance of parts when subjected to water droplets.The system is based on the JIS/SAEspecification requirements, and can also accomplish individual automakerstests, as well as electrical-enclosure tests. The water Spray Test Chambers can perform tests inaccordance with DIN EN 60529, DIN EN 60034, DIN 40050 and DIN IEC 68, T2-18,method Rb and IP X3 and IP X4 protection code testing.Our system uses multiple control solenoids tovary the water's spray volume/pressure. A holding tank prepares the water tothe desired temperature, if required. A pump ensures the water is delivered inthe proper pressure range.Applications:1. Aerospace.2. Defence3. Automotiveindustry.4. Electronicsindustry.TECHNICAL SPECIFICATIONS: Power Requirements 220/230V, 50/60Hz Electricity 1 phase or 3 phase as requested External Dimension (WXDXH)(mm) 1500*1250*1380 (customizable) Internal dimension (WXDXH)(mm) 1000*1000*1000 (customizable) Test space Volume 1000 Lt. Gross weight 400kg Test bench area 500mm dia No of holes 25 Swing pipe sprinkler aperture 0.4mm dia Water hole spacing 50mm (adjustable) Spray ring radius 400mm Sprinkler pipe diameter 16mm Pendulum swing angle tube width 0-270 Swing speed 60/sec (adjustable) Spray pressure 0-400Kpa (adjustable) Water supply quantity According IPX3/4, IPX5/6 adjustment Speed test bench 1-10r/min Spray volume 0.07 (15%)L/min Spray nozzle Spherical laser drilling, direction: 360adjustable, purpose: make injection of rain fan, to spray the specimen Specimen rotation speed 4-17rpm (adjustable) Rain nozzle Provided Shower nozzle Provided Port hole 1 No. (50mm) (adjustable) Temperature Room temperature Optional temperature range -20 to 100C Temperature Fluctuation 1C Humidity 20 to 98% RH Humidity Deviation 1% to 3% Temperature Sensor PT-100 Temperature Controller HMI+PLC Auto stop facility Through HMI Nozzle operation facility Through HMI Safety thermostats Automatic temperature setting Yes Adjustable limits Yes Safety features Individual fuses for RYB phase Provided Separate MCB for motor/pump Provided Line filter for PLC Provided Door lock safety switch Provided

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The external dimensions of this model are 1500 mm in width, 1250 mm in depth, and 1380 mm in height. These dimensions are customizable.

It requires a power supply of 220/230V at 50/60Hz and can operate on either single-phase or three-phase electricity as requested.

The spray pressure can be adjusted from 0 to 400 kPa.

The optional temperature range for this unit is from -20 to 100°C, with a temperature fluctuation of 1°C.

There are 25 holes for water spraying, with an adjustable spacing of 50 mm.

This model is suitable for applications in aerospace, defense, automotive, and electronics industries.

Safety features include individual fuses for RYB phase, a separate MCB for the motor/pump, a line filter for the PLC, and a door lock safety switch.

The chamber can maintain humidity levels from 20% to 98% RH, with a humidity deviation of 1% to 3%.

Temperature is controlled using a PT-100 temperature sensor and an HMI+PLC system, which includes an automatic temperature setting feature.

The specimen rotation speed can be adjusted from 4 to 17 rpm.

The chamber complies with various standards including DIN EN 60529, DIN EN 60034, DIN 40050, and DIN IEC 68, T2-18, method Rb, as well as IP X3 and IP X4 protection code testing.
