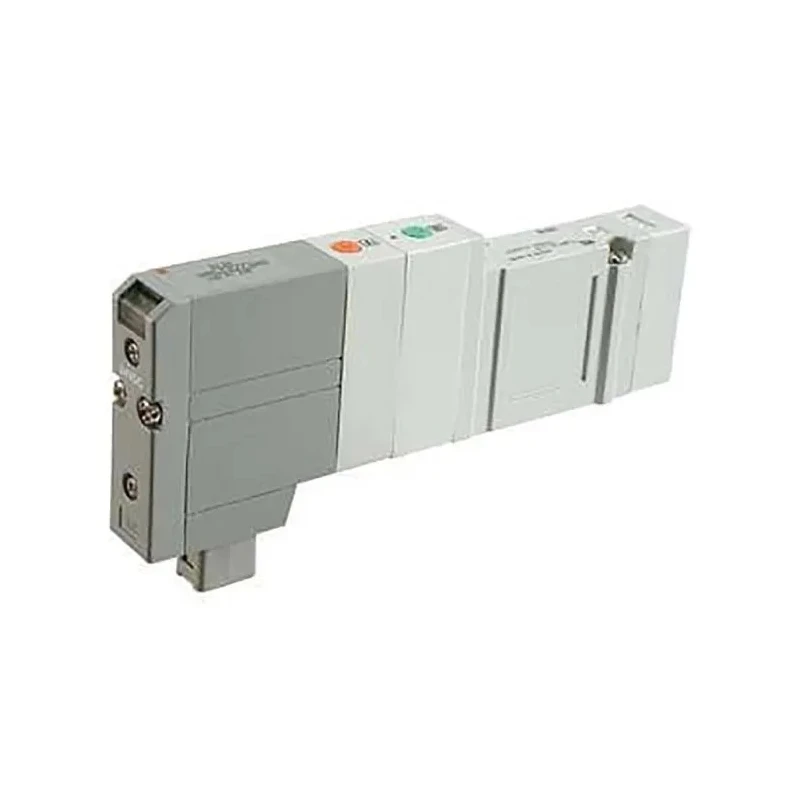

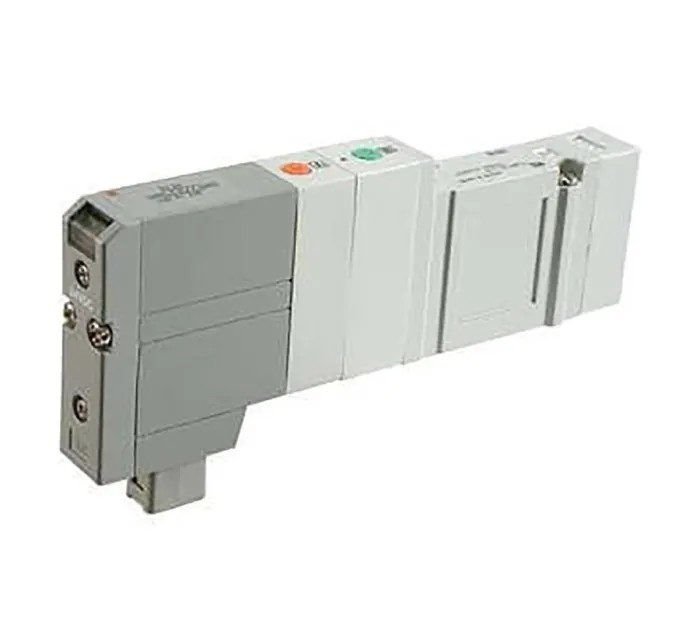

SMC Pneumatic Solenoid Pilot-Operated Control Valve Exhaust 5 Ports 3 Positions Manifold Mount Die Cast Aluminium 24V SV2000

SMC SV2000 Pneumatic Solenoid Pilot-Operated Control Valve is engineered for precise pneumatic system control, featuring an exhaust function with 5 ports and 3 positions. It is designed for manifold mounting and constructed from die cast aluminium to ensure durability in industrial conditions. Operating at 24V DC, this valve is ideal for various fluid power applications, controlling air flow within pressures ranging from -100 kPa vacuum to 0.7 MPa maximum operating pressure. The double solenoid type actuation provides reliable switching with minimal power consumption of 0.6W, suitable for continuous use.

The valve’s rubber seals ensure leak-tight performance and provide resistance to wear in demanding environments. It supports an operating temperature range from -10°C to 50°C ambient and fluid temperature, making it suitable for HVAC, manufacturing, and automation industries. The valve delivers a fast response time of 18 milliseconds or less measured at 0.5 MPa, ensuring quick actuation and precise pneumatic control. Its electrical connection is provided through a secure D-Sub connector.

Designed for safety and compliance, this valve meets CE, CSA, and UL standards, though it lacks hazardous area certification. Compact in size with dimensions 148 mm (L) x 48.8 mm (W) x 88 mm (H), it integrates female port fittings making installation convenient.

This product originates from Japan, affirming high-quality engineering and manufacturing. Common industrial use cases include automation systems, fluid power control, factory pneumatic installations, HVAC controls, and general industrial machinery requiring efficient pneumatic valve solutions.

This valve supports solenoid actuation with double solenoid type for control applications. It features a 5-port configuration and 3 operating positions for versatile pneumatic flow control. The body is constructed from durable die cast aluminium with rubber seals ensuring reliability under pressure.

The valve supports operating pressures up to 0.7 MPa and pilot pressures from 0.15 to 0.7 MPa. Designed to operate within temperature ranges from -10°C to 50°C for ambient and fluid conditions. The electrical connection uses a D-Sub connector supporting 24V coil rated voltage with power consumption of 0.6W.

The valve offers quick response time of 18 ms or less at 0.5 MPa pressure for efficient control. Complies with CE, CSA, and UL standards, with no hazardous area certification. Compact dimensions: Length 148 mm, Width 48.8 mm, Height 88 mm with female port gender fittings.
