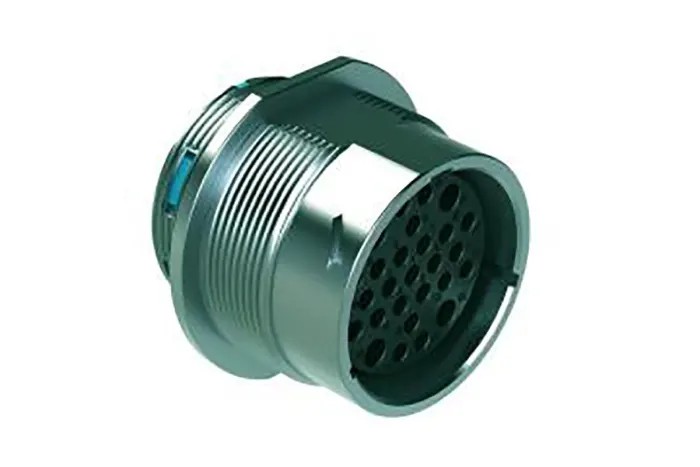

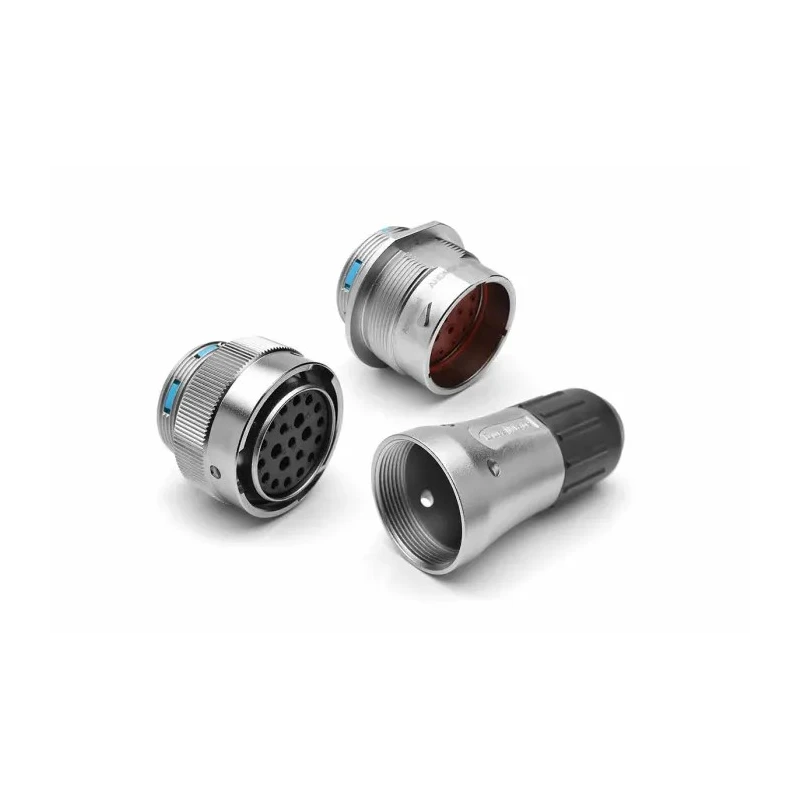

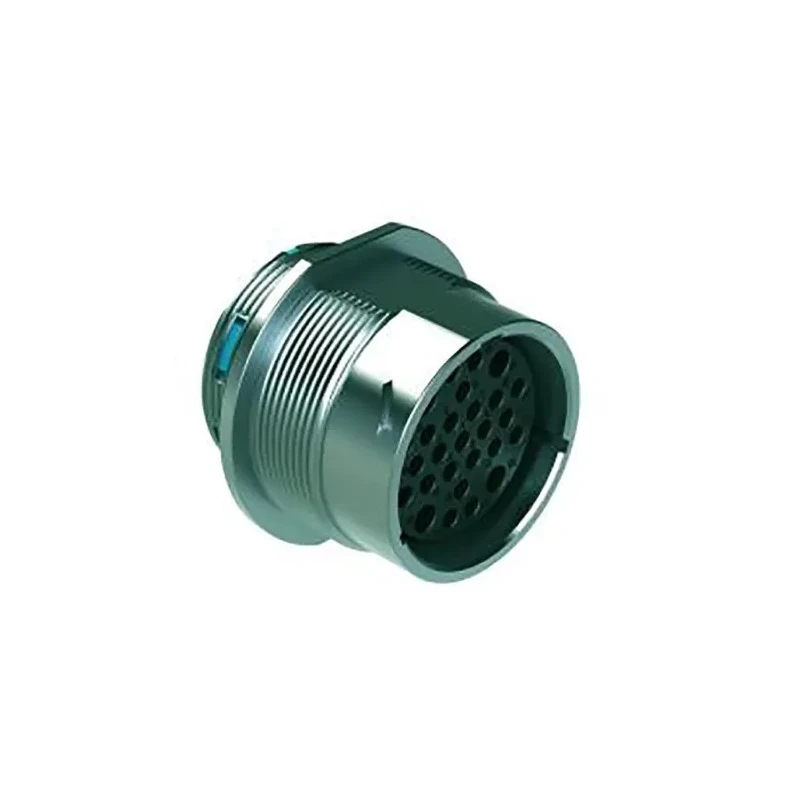

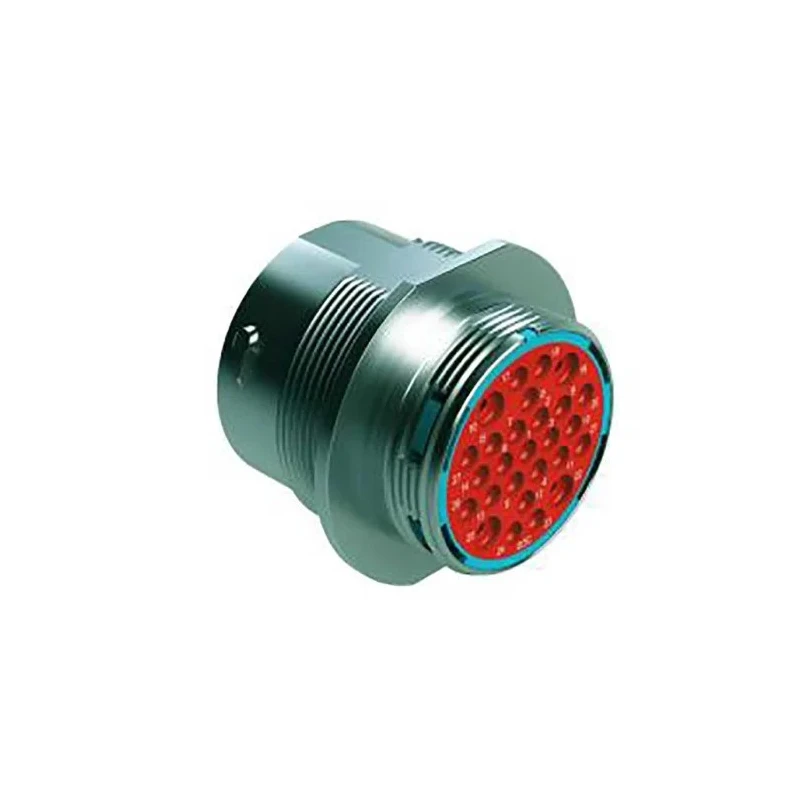

Amphenol Industrial Heavy Duty 27-Contact Circular Cable Connector Socket, Female, IP67, IP69K, Bayonet 200V AHDM04
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200.0V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 13, 25A |
| Model | AHDM04 |
| IP Rating | IP67, IP69K |
| Mount Type | Cable |
| Housing Material | Zinc Alloy |
| Contact Material | Zinc |
| Series | AHDM04 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 27 |
| Contact Plating | Nickel |
| Number of Contacts | 27 |
| Contact Gender | Female |
| Shell Size | 24 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
Key Features
- Heavy duty zinc alloy housing ensures robust mechanical protection.
- Nickel-plated zinc contact material supports reliable electrical connections.
- Socket contact gender with crimp termination type for cable mount applications.
- Bayonet mating type allows quick and secure locking during installation.
- Wide operating temperature range of -55°C to 125°C for varied industrial conditions.
- Standard shell size 24 connector supports currents of 13A and 25A.
- Straight orientation design simplifies cable routing and installation.
- Suitable for industrial, off-road, manufacturing, and heavy machinery environments.
Product Description
Amphenol Industrial AHDM04 circular connector socket is a 27-contact, cable mount, heavy duty industrial connector engineered for harsh environments. Featuring a robust zinc alloy housing and nickel-plated zinc contacts, this connector ensures reliable electrical performance under extreme conditions.
Designed with a bayonet mating system and IP67/IP69K ratings, the connector resists water, dust, and excessive washdown, making it ideal for off-road machines, industrial automation, manufacturing equipment, and water treatment applications.
The connector supports currents of 13A and 25A and operates safely across a wide temperature range from -55°C to 125°C. With a standard shell size 24 and straight orientation, it facilitates installation in cable harness assemblies where durability and secure connections are critical.
The crimp termination type combined with female socket contacts provides a secure connection to cable conductors while simplifying maintenance. This connector series is part of the DuraMate™ AHDM line, recognized for its economical and quick-connect solutions in challenging industrial environments.
Heavy duty zinc alloy housing ensures long-term mechanical durability. Nickel-plated zinc contacts provide excellent corrosion resistance. Rated to IP67 and IP69K standards for ingress protection. Bayonet locking system enables secure and rapid mating.
Wide temperature range suitability supports diverse industrial conditions. Crimp termination offers reliable cable attachments. Standard size 24 shell compatible with multiple industrial systems. 27-contact pole format supports complex multi-signal connections.
This Amphenol Industrial connector is engineered for demanding industrial, manufacturing, automotive, and off-road machinery sectors requiring high reliability connector solutions. It is a proven choice for enhancing system uptime and operational safety.
Explore the extensive range of high-quality industrial connectors and components at EnvMart for your electronic and industrial instrumentation projects.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 125°C.
This connector supports current ratings of 13A and 25A.
It features a crimp termination type for secure cable attachments.
The connector is rated IP67 and IP69K for ingress protection against water and dust.
The housing is made of zinc alloy, providing robust mechanical protection.
This model has 27 contacts.
It has a straight orientation design, which simplifies cable routing and installation.
It is suitable for industrial, off-road, manufacturing, and heavy machinery environments.
The connector features a bayonet mating type for quick and secure locking during installation.
The minimum operating temperature for this model is -55°C.
The contacts are made of nickel-plated zinc, which provides excellent corrosion resistance.
This connector has a standard shell size 24.
