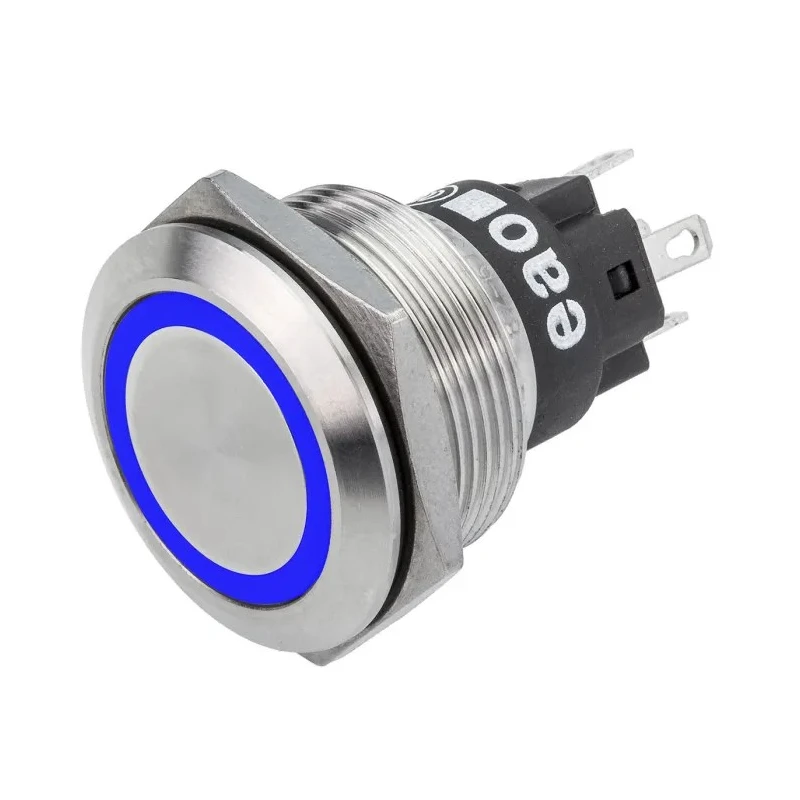

EAO Illuminated Push Button Switch with Blue LED, Momentary, Panel Mount 22.3 mm Cutout, SPDT, IP65/IP67, 36V 82-6651.1124

EAO 82-6651.1124 is an illuminated push button switch featuring momentary operation and designed for panel mounting applications with a 22.3 mm cutout size. It includes a blue LED for enhanced visibility and status indication. The switch employs a SPDT contact configuration suitable for AC and DC voltages up to 36 volts, supporting a contact current rating of 600 mA.

Constructed with a silver-colored round actuator, this switch combines durability with excellent tactile feedback. Its vandal-resistant design with impact-resistant features ensures suitability for exposed public installations such as ticketing and vending machines.

The product offers a long operational life of more than one million cycles and is compliant with RoHS environmental standards. Gold-plated silver contacts are optionally available to optimize switching performance for low voltage and current applications.

Operating temperature ranges from -30°C through 70°C, allowing functionality in various industrial and commercial environments. The ingress protection ratings of IP65 and IP67 provide robust defense against dust and water ingress, extending the switch’s reliability in harsh conditions.

Typical applications include industrial machinery controls, building management systems including access control and security, medical devices, elevator controls, food industry environments with corrosion-resistant versions available, and audio/video equipment setups.

Compactly sized at 35.5 mm length, this switch integrates easily into panel mount configurations, providing excellent utility in control panels and electrical systems. Constructed with a silver actuator in a round style for ergonomic use.

Single-pole double-throw (SPDT) contact configuration for versatile switching. Provides vandal-resistant impact protection for exposed environments. Designed for long service life exceeding one million operation cycles. Gold-plated silver contacts are available for optimized low voltage and current performance.

Meets RoHS compliance standards ensuring environmental safety. Operates reliably from -30°C to 70°C ambient temperatures. Ideal for industrial machinery, building management, medical equipment, and public access control systems.

Ingress protection ratings IP65 and IP67 ensure durability against dust and water ingress. Compact length dimension of 35.5 mm suitable for panel installations.

This EAO push button switch is a reliable solution in electronics and electrical applications requiring high durability, precise momentary switching, and clear illuminated status feedback. Browse EnvMart's comprehensive selection of Push Button Switches to find ideal components for industrial automation, building control, or public device interfaces.
