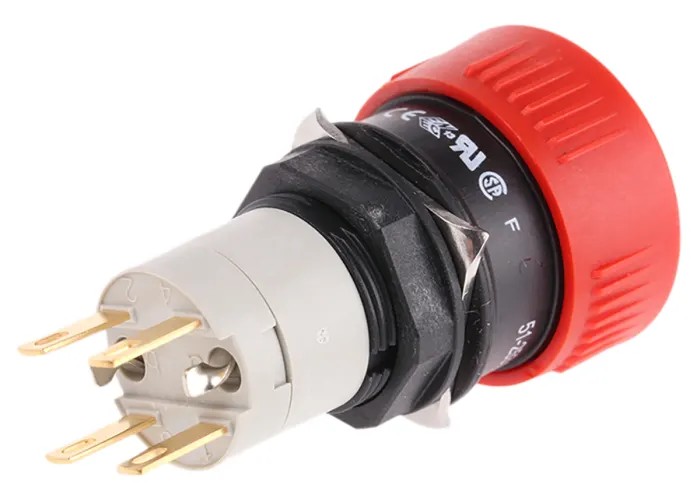

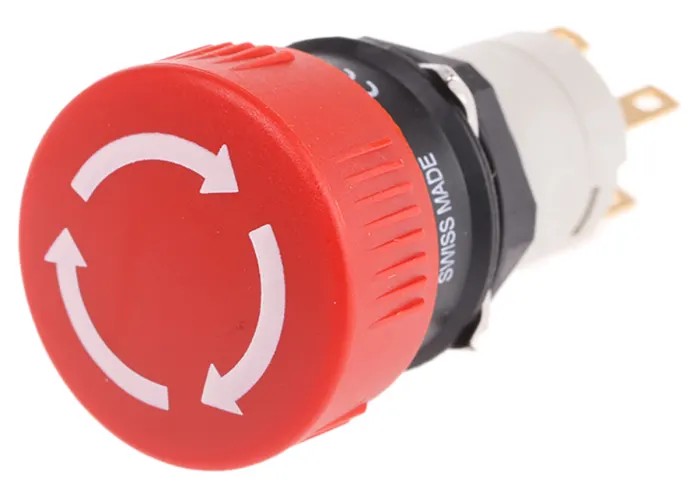

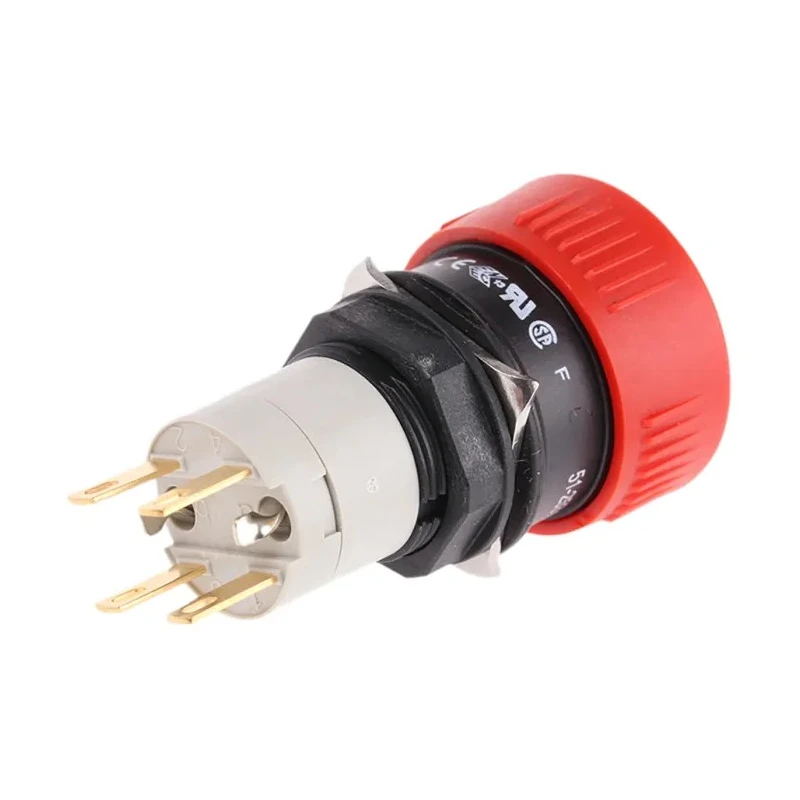

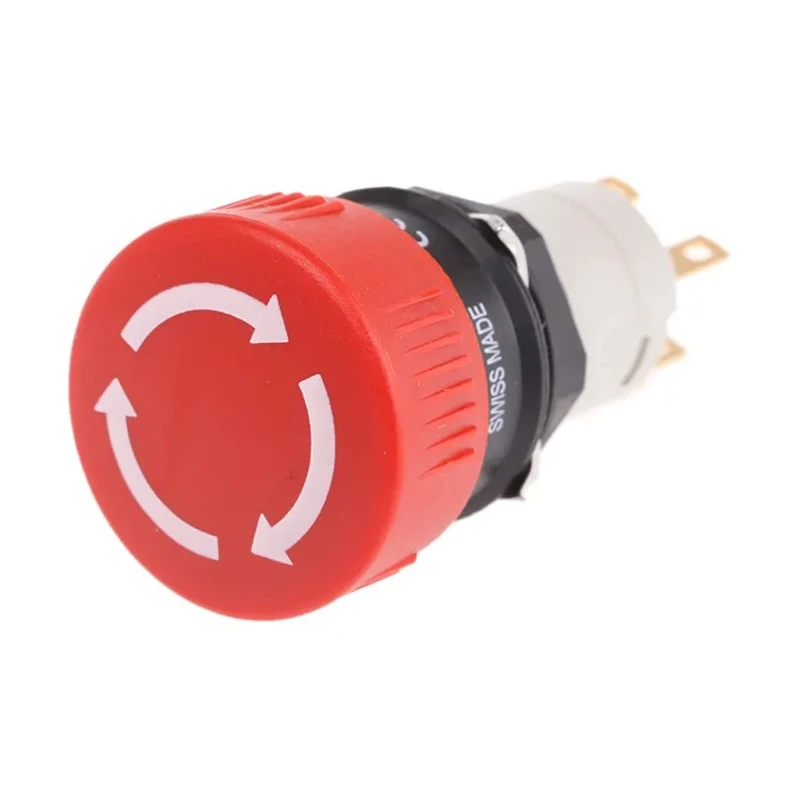

EAO 51-253 Series Maintained Emergency Stop Push Button, Panel Mount, 16 mm Cutout, SPDT, IP65 51-253.022



Category Switches Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Colour	Red
IP Rating	IP65
Mount Type	Panel Mount
Housing Material	Plastic
Series	51-253
Contact Configuration	SPDT
Switch Configuration	Snap Action
Head Style	Mushroom
Head Diameter	24.5mm
Terminal type	Solder Terminal
Contact AC Voltage	250V ac
Contact Current	5A
Cutout Diameter	16mm
Push Button Actuation	Maintained
Push Button Material	Plastic

Key Features

Red mushroom-shaped push button provides clear stop function.
Panel mount design with 16 mm cutout diameter ensures compatibility.
Maintained actuation with twist-to-release mechanism for ease of use.
Snap action switch configuration rated at 5 A and 250 V AC.
Durable plastic housing with IP65 protection against dust and water jets.
Compact back panel depth of 18.8 mm for space-saving installation.
Solder terminal type ensures secure electrical connections.
Robust service life with over 100,000 actuations.

Product Description

EAO 51-253.022 Maintained Emergency Stop Push Button is designed for industrial and commercial use where rapid machine stoppage is critical. Featuring a panel mount form factor with a 16 mm cutout diameter and SPDT contact configuration, this emergency stop button offers reliable control for various applications.

The red mushroom-shaped push button provides a highly visible and ergonomic interface for operators. Its maintained actuation with a twist-to-release mechanism allows the button to stay engaged until manually reset, enhancing operational safety. The housing is constructed from durable plastic and rated IP65, protecting the switch against dust ingress and resistance to low-pressure water jets, safeguarding usage in challenging environments.

The snap action switch is rated for a contact current of 5 A at 250 V AC, suitable for controlling machinery and process equipment with dependable electrical performance. The solder terminal configuration ensures secure and vibration-resistant wiring connections. With a compact back panel depth of just 18.8 mm, the switch fits well in tight panel spaces without compromising functionality.

Red mushroom button provides clear and easy operation. Panel mount with 16 mm cutout for versatile installation. Maintained push button actuation with twist-to-release for safety. Snap action switch rated for 5 A at 250 V AC.

Robust plastic housing with IP65 protection against dust and water jets. Compact back panel depth of 18.8 mm for low profile mounting. Solder terminal type ensures stable electrical connections. Tested for over 100,000 actuations ensuring long service life.

This emergency stop push button from EAO is ideal for applications including machine controls, process control systems, handheld terminals, medical diagnostic equipment, transportation, automotive industry, and supermarket checkouts. Its compact size and rugged construction make it suitable for demanding industrial environments requiring reliable stop functions.

Choose EAO 51-253.022 for established quality and safety compliance in industrial automation and control systems. Explore more products in the Electronics & Electricals category, including a wide range of Switches and industrial control components on EnvMart.
