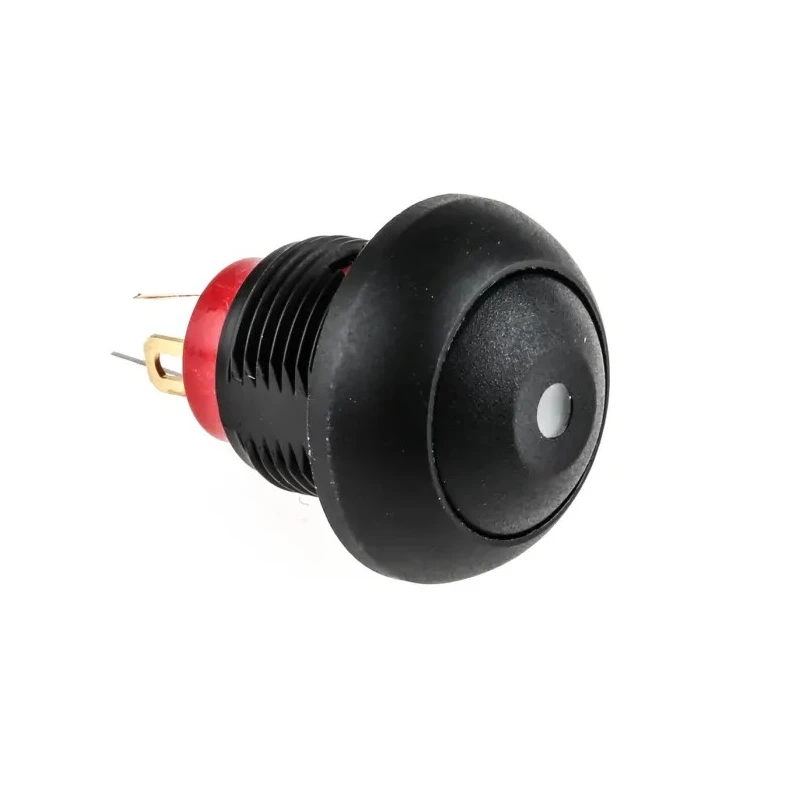

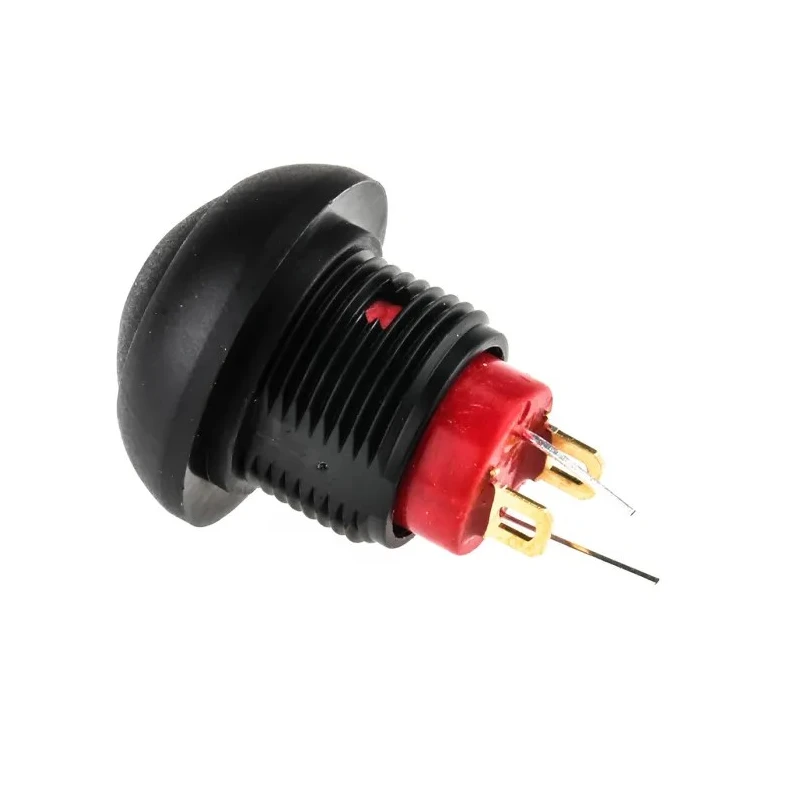

KNITTER-SWITCH Illuminated Miniature Push Button Switch Momentary Panel Mount SPST Red LED 12.9 mm Cutout DPWL 1CGKR

KNITTER-SWITCH DPWL 1CGKR Illuminated Miniature Push Button Switch is a premium momentary panel mount switch featuring a 12.9 mm cutout suitable for precision electrical and automation applications.

This miniature pushbutton switch includes a black actuator with a super bright red LED for illuminated status feedback. It supports Single Pole Single Throw (SPST) on-off switching with solder terminal connections ensuring robust and secure wiring integration.

Engineered for industrial environments, it carries an IP67 rating that guarantees water and dust resistance, making it ideal for use in manufacturing, industrial controls, and automation systems. The switch can operate continuously at temperatures up to 85°C, with a mechanical life expectancy exceeding 1,000,000 cycles, offering high durability.

The contact current is rated at 400 mA AC with a voltage rating of 250V, suitable for a range of control and signaling applications. The thermoplastic casing provides electrical insulation and mechanical protection.

Installation requires a panel cutout size of exactly 12.9 mm to ensure a secure fit. For LED operation, an external resistor (typically 1,200 Ohms, 0.5 W) must be used to limit current to approximately 20 mA for safe illumination.

This switch complies with CSA and UL standards underscoring its safety and quality qualifications. It is manufactured in China and designed to meet the demands of electrical panel builders and OEMs requiring reliable and illuminated tactile switches.

The switch features a black actuator color and red LED illumination for clear status indication. It operates momentarily with a Single Pole Single Throw (SPST) on-off configuration. The panel cutout size is standardized at 12.9 mm ensuring compatibility with common panels.

Designed with IP67 rating, it offers water and dust resistance for harsh environments. Maximum operating temperature tolerance is 85°C, suitable for demanding industrial settings. Contact current rating is 400 mA with AC voltage capability up to 250V.

Terminals are solder type for secure electrical connections. Constructed with a thermoplastic case, ensuring durability and long mechanical life of over 1,000,000 cycles. The LED requires a current limiting resistor for proper operation as per specified typical values.

Certified with CSA and UL standards, assuring reliable industrial quality and safety compliance.

This KNITTER-SWITCH DPWL Series push button switch is ideal for applications in industrial automation, control panels, machinery operation interfaces, and other demanding electrical systems requiring high reliability and clear operational feedback.
