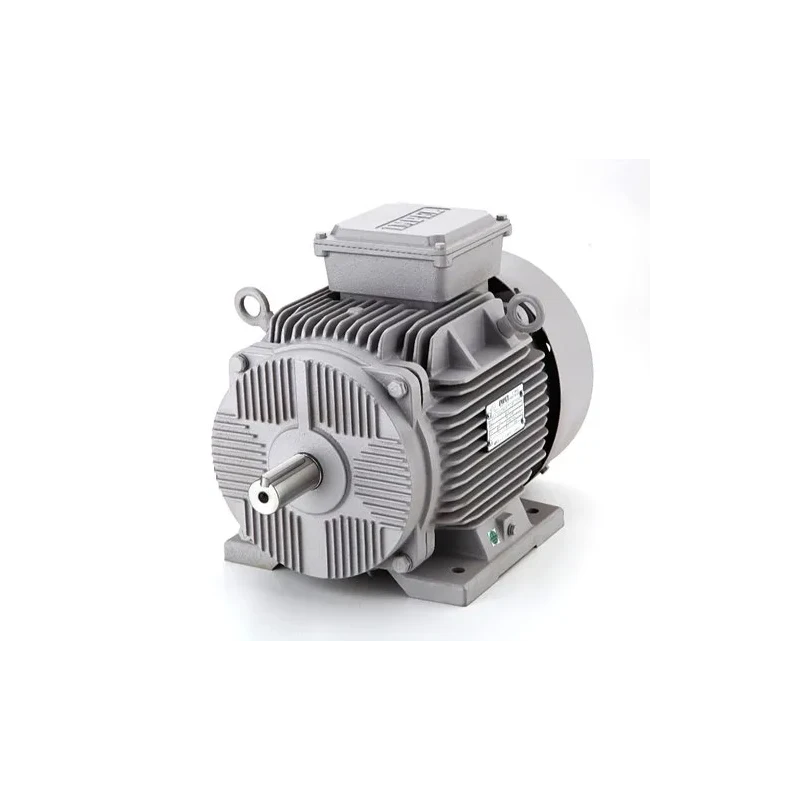

Impel 3 Phase 10HP 2 Pole TEFC Squirrel Cage AC Induction Motor Frame Size 132S
Specifications
| Frequency | 5OHZ+-5% |
|---|---|
| Warranty | 2 years |
| Brand | Impel Motors |
| Phase | 3 Phase |
| Voltage (V) | 415+-10% |
| Body Material | Cast Iron |
| Mounting | Foot Mounting (B3) |
| Protection Type | IP44/IP55 |
| Power Rating (kW) | 7.5 kW |
| Power (HP) | 10 HP |
| Ambient Temperature (ºC) | 50 ºC |
| Rated Speed (RPM) | 2880 RPM |
| Power Factor | 0.86 |
| No. of Poles | 2 |
| Duty Type | S1/Continuous |
| Shaft Dia (mm) | 38 mm |
| Class of insulation | F |
| Frame Size (ISI) | 132S |
| Full Load Ampere At 415V | 13.5 |
| Rated Torque (Kgm) | 2.50 Kgm |
| STG Current % FLC | 700 |
| STG Torque % FLT | 200 |
| POT Torque % | 270 |
| FL Efficiency (%) IE2 | 0.881 |
Key Features
- High Efficiency and Long Life
- High Torque Level
- High Power Factor
Product Description
Impel 3 Phase 10HP 2 Pole TEFC Squirrel Cage AC Induction Motor Frame Size 132S From Impel used for Industrial Purposes. Envmart is a well-known e-commerce platform for a qualitative range of Impel General Purpose Motors For Industrial or domestic Applications. All Impel Motors Are manufactured using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field of Industrial and Manufacturing Units
- Low Temperature Rise
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 10 HP, which is equivalent to 7.5 kW.
The rated speed of this model is 2880 RPM.
It supports foot mounting (B3).
The motor operates at a voltage of 415V ± 10%.
The frequency is specified as 50 Hz ± 5%.
This motor has a protection type rating of IP44/IP55.
The maximum ambient temperature for operation is 50 ºC.
The shaft diameter is 38 mm.
The power factor is rated at 0.86.
The duty type is classified as S1/Continuous.
The insulation class is F.
This motor comes with a warranty period of 2 years.
