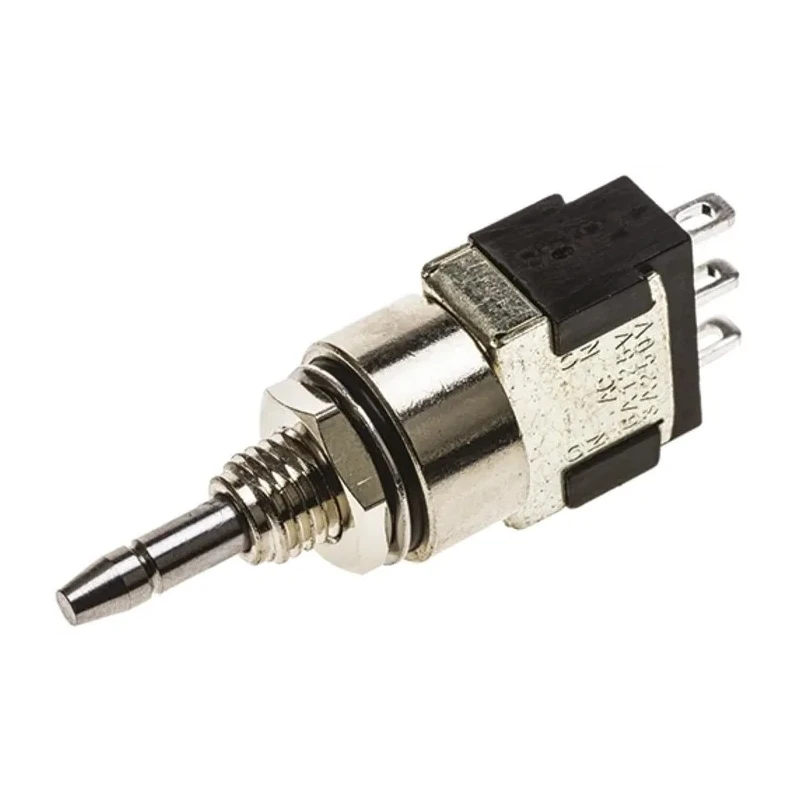

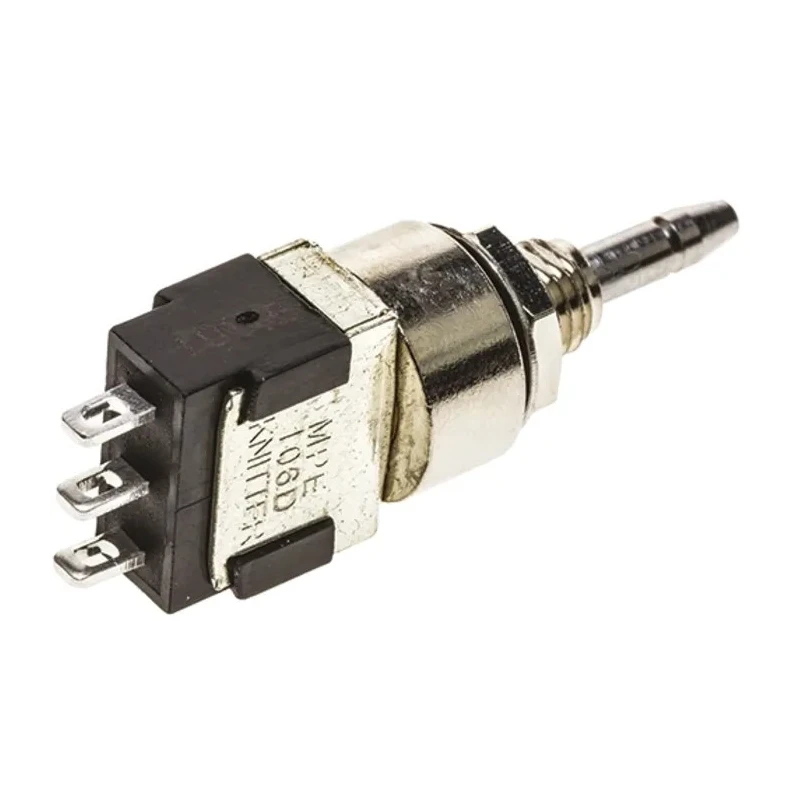

KNITTER-SWITCH MP Series Miniature Push Button Switch, Latching, Panel Mount, 5.6 mm Cutout, SPDT Contact, IP67, 250 MPE106D

KNITTER-SWITCH MPE106D is a high-quality miniature push button switch from the MP Series, designed for panel mounting with a compact 5.6 mm cutout. This latching switch offers a single pole double throw (SPDT) contact configuration, ideal for various electrical and industrial automation applications, where robust switching performance is required.

The switch is waterproof rated to IP67, providing excellent protection against dust and moisture, making it suitable for use in demanding industrial environments, including manufacturing, HVAC controls, and machinery automation. The black-colored plunger actuator ensures ease of operation and durability.

Typical applications include control panels, automation systems, and electrical devices requiring reliable manual switching with alternate on-off functionality. The MPE Series switches are epoxy sealed and flux proof, offering long operational life, low contact resistance under 10mΩ, and insulation resistance exceeding 1000MΩ.

Specifications include support for a maximum AC voltage of 250 V, contact current of 3A, and solder terminal connections for secure integration. The operating temperature range from -45°C to 120°C enables performance under varying temperature extremes.

This model complies with CSA and UL certifications, reflecting adherence to international safety and quality standards. Note that the actuator button is not supplied with this switch and should be ordered separately; a recommended compatible actuator is a 15 mm diameter black button.

The switch features a 5.6 mm panel cutout for compact installation. It is rated IP67 for waterproof protection, suitable for industrial applications. The contact configuration is single pole double throw (SPDT) with silver-plated contacts.

It supports a maximum AC voltage of 250 V and a contact current rating of 3A. Construction includes solder terminals and a black plunger actuator style. Operating temperature ranges from -45°C to 120°C, ensuring durability in extreme conditions.

The switch is epoxy sealed with flux-proof construction for enhanced reliability. It complies with CSA and UL standards for safety and performance. Accessories such as a 15 mm diameter black actuator button are sold separately.

This KNITTER-SWITCH MP Series Push Button Switch is a trusted choice for industrial and electrical panel applications requiring a compact, reliable, and rugged manual switching solution. Explore more high-quality switches and components for your electrical automation needs at EnvMart.
