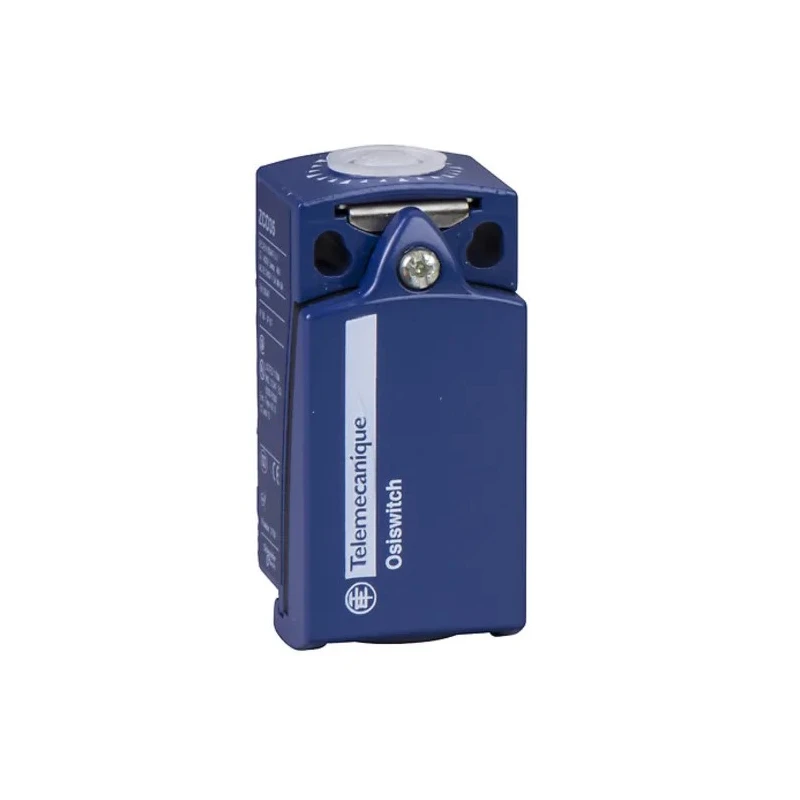

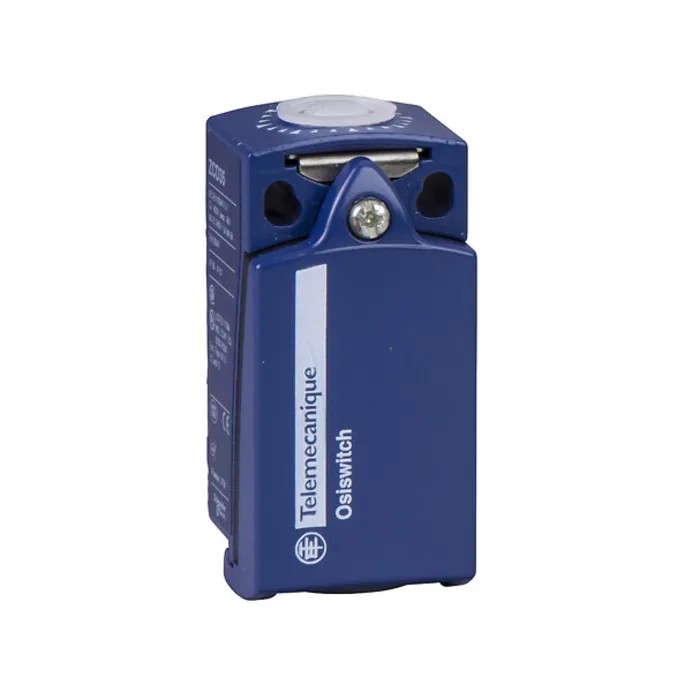

Telemecanique Sensors ZCD Series Roller Lever Limit Switch SPDT, Zinc Alloy Housing, IP66 IP67, 240V AC, 0.75A ZCD39

Telemecanique Sensors ZCD39 Roller Lever Limit Switch SPDT is designed as a compact, electromechanical device for industrial control systems, providing snap-action electrical switching through a reliable roller lever actuator. Constructed with a robust zinc alloy housing, it delivers mechanical durability and protection against industrial dust and moisture, rated to IP66 and IP67 standards. This device is suitable for applications requiring precise position detection, such as conveyor end-of-travel monitoring, machine guard position sensing, automated valve position feedback, safety interlocks on access panels, and packaging machinery position operations.

The roller lever actuator ensures precise mechanical actuation and dependable contact switching with snap-action contacts that minimize contact bounce for reliable signal transmission. The contact arrangement features one normally open and two normally closed outputs, providing versatile interfacing options. The limit switch is rated for switching electrical loads up to 240 V AC and a maximum current of 0.75 A, suitable for diverse control circuits.

Designed to operate reliably within a wide temperature range from −25°C to 70°C, it accommodates various installation environments. The device supports side mounting and is equipped with a 20 mm conduit entry to facilitate standard cable gland installation. With a mechanical endurance rating of 10 million cycles, the ZCD39 is built for long-term industrial operation.

The roller lever actuator offers precise mechanical actuation and dependable switching. Snap-action contacts provide quick state change and reduce contact bounce. Contact configuration of one normally open and two normally closed outputs.

Rated switching voltage of 240 V AC and a current of 0.75 A. Housing made from zinc alloy for enhanced structural integrity. Ingress protection rating of IP66 and IP67 for dust-tight and temporary immersion resistance. Mechanical life rated at 10,000,000 cycles ensures extended durability.

Operates effectively in temperatures ranging from −25 °C to 70 °C. Equipped with 20 mm conduit entry for cable installation. Ideal for conveyor end-of-travel detection, machine guard monitoring, automated valve feedback, and packaging machinery applications.

This limit switch is an essential component for industrial automation, manufacturing, water treatment, HVAC systems, and safety interlock applications. It provides reliable, repeatable operation in demanding industrial environments.
