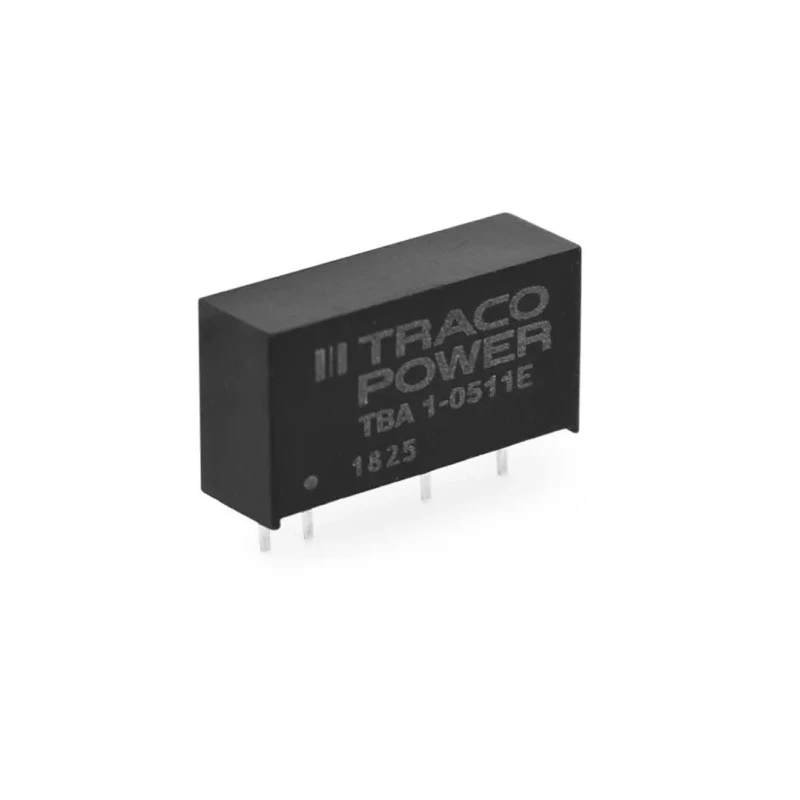

TRACOPOWER DC/DC Converter SIP-7 Package, 5V DC Output, 100mA, 1W Power, 4.5-5.5V Input, 1500V Isolation, -40°C TBA 1-0521E
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TBA 1E DC/DC Converter, 5V dc/ 100 mA |
| Brand | TRACOPOWER |
| Efficiency | 79% |
| Length | 19.5mm |
| Model | TBA 1-0521E |
| Depth | 9.55mm |
| Width | 6mm |
| Mount Type | PCB |
| Series | TBA 1E |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-7 |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 100mA |
| Isolation Voltage | 1.5kV dc |
| Output Voltage 2 | -5V dc |
| I/O isolation | 1500 VDC |
Key Features
- This converter outputs regulated 5V DC voltage at 100mA current capacity.
- It supports input voltage range from 4.5V to 5.5V DC suitable for varied power sources.
- The device features 1500V DC isolation between input and output for safety and noise reduction.
- Designed for PCB mounting with a compact size of 19.5mm length, 6mm width, and 9.55mm depth.
- Operating temperature range from -40°C to +85°C ensures reliable performance in harsh industrial environments.
- High efficiency of 79% reduces thermal dissipation and power loss during operation.
- Continuous short circuit protection is integrated for enhanced durability and safety.
- Mean Time Between Failures (MTBF) is 2,000,000 hours, demonstrating long service life.
Product Description
TRACOPOWER TBA 1-0521E DC/DC Converter is a compact and robust power conversion solution delivering a maximum output power of 1 Watt with dual outputs at 5V DC and -5V DC. Its input voltage range of 4.5V to 5.5V DC enables compatibility with multiple power sources. The SIP-7 package and PCB mount design facilitate easy integration into electronic systems.
This converter offers an isolation voltage of 1500V DC between input and output, providing enhanced safety and reducing electrical noise, suitable for sensitive electronics and industrial equipment. Its operating temperature range from -40°C to +85°C without derating ensures dependable operation in adverse environments.
Efficiency of 79% helps minimize heat generation, making it ideal for compact and space-constrained applications. It features continuous short circuit protection to safeguard against fault conditions and increase reliability. The converter's MTBF of 2,000,000 hours evidences superior product quality and longevity.
Typical industrial use cases include power supply modules in embedded systems, instrumentation devices, communication equipment, and other electronics requiring stable low-power DC/DC conversion with high isolation. The device complies with industry standards and is manufactured in China under TRACOPOWER quality assurance.
This converter outputs regulated 5V DC at 100mA and -5V DC output voltages. Voltage input tolerance ensures operation within 4.5V to 5.5V DC range. Isolation voltage of 1500V DC separates input and output for protection against voltage spikes and noise.
Compact SIP-7 package with dimensions 19.5mm x 6mm x 9.55mm supports PCB mounting. Operating temperature range from -40°C to +85°C suits harsh environments without derating. High efficiency of 79% enhances power savings and thermal management.
Integrated continuous short circuit protection for enhanced safety. MTBF of 2,000,000 hours guarantees extended lifecycle performance. Explore the full range of TRACOPOWER DC/DC Converters and power supply solutions on EnvMart to find the best fit for your industrial and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 4.5V to 5.5V DC.
This converter delivers a maximum output power of 1 Watt.
The dimensions of this model are 19.5mm in length, 6mm in width, and 9.55mm in depth.
It features an isolation voltage of 1500V DC between input and output.
The efficiency of this converter is rated at 79%.
The operating temperature range is from -40°C to +85°C.
This converter has two outputs: 5V DC and -5V DC.
It is designed for PCB mounting.
It includes continuous short circuit protection for enhanced safety.
The MTBF for this converter is 2,000,000 hours.
This model is manufactured in China.
Typical applications include power supply modules in embedded systems, instrumentation devices, and communication equipment.
