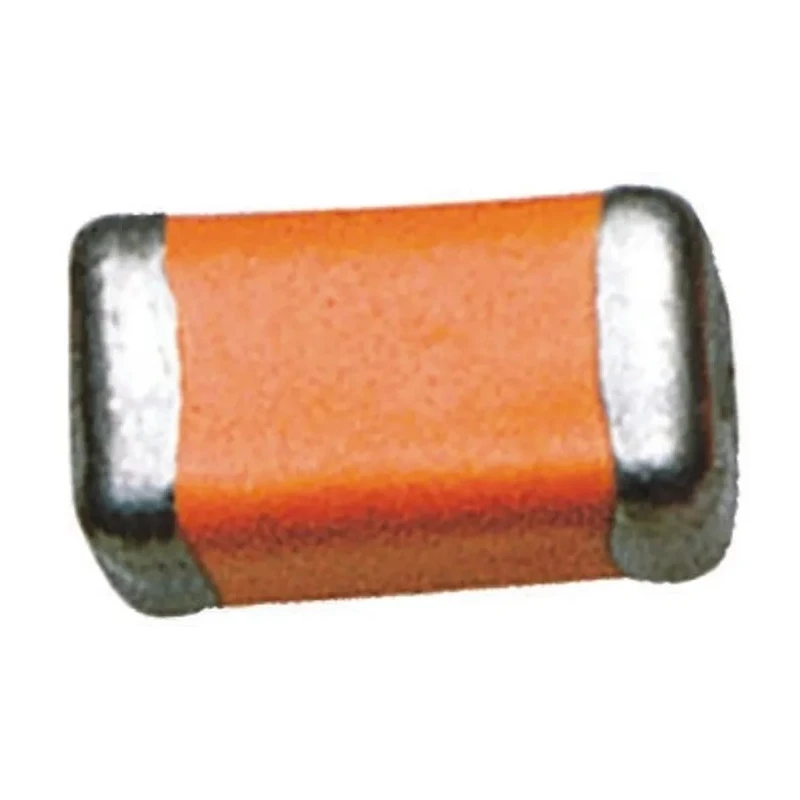

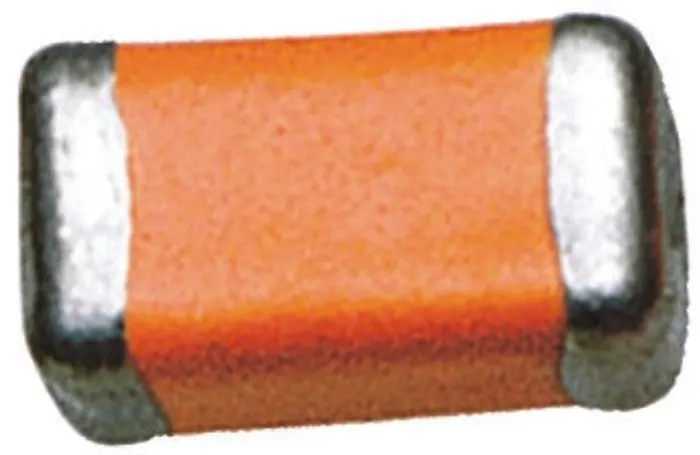

KYOCERA AVX 1.2 pF Multilayer Ceramic Capacitor 25V dc 0.1 pF Tolerance Surface Mount 0402 Package 04023J1R2BBSTR

KYOCERA AVX 04023J1R2BBSTR is a high-quality multilayer ceramic capacitor designed for surface mounting in electronic circuits. Featuring a capacitance of 1.2 pF with an extremely tight tolerance of 0.1 pF, this capacitor is ideal for circuits requiring precise capacitance control. Its 25V DC voltage rating makes it suitable for a wide range of low-voltage electronic applications.

This component utilizes a C0G dielectric material, which offers exceptional stability and very low losses at frequencies above 40 GHz. This characteristic ensures minimal signal distortion and excellent reliability in RF and high-frequency applications. The capacitor is manufactured under strict dimensional controls, ensuring consistent inductance and capacitance from unit to unit.

The 0402 package size (1 mm length × 0.55 mm width × 0.4 mm height) allows for compact PCB layouts, aiding in high-density circuit designs. It operates reliably within a temperature range of -55°C to 125°C, making it suitable for automotive, industrial, and commercial electronics environments. The surface mount termination simplifies automated assembly processes and enhances mechanical robustness.

The capacitor belongs to the Accu-P series, characterized by high purity electrodes that minimize equivalent series resistance (ESR) and improve overall performance. These features make it an excellent choice for signal filtering, timing circuits, and precision analog front ends in industrial, telecommunications, and computing equipment.

Applications for this KYOCERA AVX capacitor include high-frequency RF circuits, precision filter networks, and noise suppression in power supplies and data lines. Its reliability and precision make it an important component in laboratory instrumentation, industrial control systems, and automotive electronics.

Capacitance value of 1.2 pF with a tolerance of 0.1 pF for high precision. Voltage rating of 25 volts DC suitable for low voltage electronic circuits. C0G dielectric ensures stability and low losses for high-frequency applications.

Surface mount type with a small 0402 package size of 1 mm length and 0.55 mm width. Operating temperature range from -55°C to 125°C for reliable performance. Part of the Accu-P series designed for tight capacitance tolerances and low ESR.

Termination type is surface mount compatible for standard PCB assembly processes. Compact dimensions enhance miniaturization in electronic designs.
