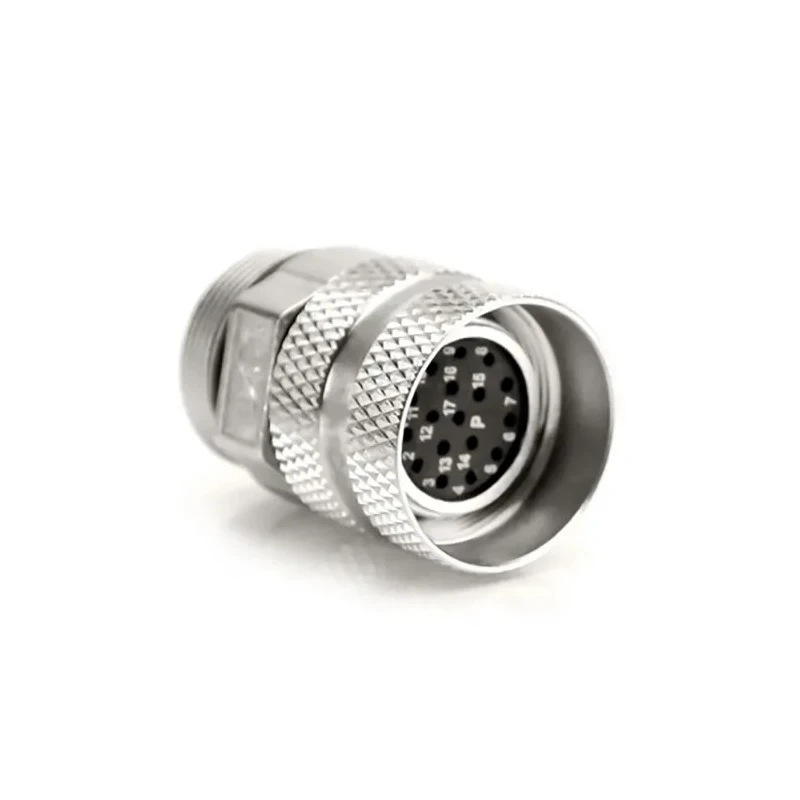

Amphenol Industrial Circular Connector, 17 Contacts, Cable Mount, M23 Plug Male, IP67, MotionGrade Series MA1CAP1700
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125.0V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 9A |
| Model | MA1CAP1700 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Zinc |
| Contact Material | Brass |
| Series | MotionGrade |
| Termination Type | Crimp |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -20°C |
| Pole Format | 17 |
| Contact Plating | Gold |
| Number of Contacts | 17 |
| Contact Gender | Male |
| Shell Size | 25.8 mm |
| Mating Type | Threaded |
| Connector Size | M23 |
| Plug/Socket | Plug |
Key Features
- Supports up to 9A current and 125 V voltage rating.
- Features gold-plated brass contacts for corrosion resistance and reliability.
- MotionGrade series ensures superior EMI/RFI shielding and robust design.
- Threaded mating type with straight connector orientation for secure connections.
- Operates within temperature range -20°C to 130°C for industrial environments.
- Housing made of durable zinc with crimp termination type.
- Offers 360° contact mating surface ensuring stable electrical contact.
- Designed for industrial applications needing IP67 ingress protection.
Product Description
Amphenol Industrial MA1CAP1700 is a high-performance circular connector from the MotionGrade series featuring 17 contacts. Engineered for cable mounting, this M23 sized plug male connector delivers an IP67 ingress protection rating, making it suitable for demanding industrial environments requiring dust-tight and water-resistant connectivity.
This circular connector supports current ratings of up to 9A and a nominal voltage of 125 V, ensuring reliable power transmission in industrial and manufacturing applications. The gold-plated brass contacts provide corrosion resistance and excellent conductivity, while the robust zinc housing ensures mechanical durability and protection against environmental factors.
The threaded mating type and straight orientation allow secure and precise connection, complemented by a 360° contact mating surface for optimal electrical performance. The MotionGrade design offers exceptional EMI/RFI shielding quality that minimizes interference and enhances signal integrity.
The crimp termination type facilitates easy cable assembly, although crimp contacts are supplied separately (see compatible part 696-4461). This connector operates effectively in a temperature range of -20°C to 130°C, making it suitable for various industrial, automation, and machinery applications where high reliability is critical.
Superior EMI/RFI shielding for industrial signal integrity. Integrated contact locking system ensures ease of use and contact retention. RockSolid contact design provides vibration and shock resistance. Durable zinc housing for environmental protection.
Compatible with threaded mating type connectors. Ideal for industrial, manufacturing, automation, and motion control systems.
Amphenol Industrial circular connectors like the MA1CAP1700 are widely used for connecting sensors, actuators, and control devices in harsh industrial conditions. Browse our full range of Industrial Circular Connectors at EnvMart for reliable and certified electronic connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 9A and a nominal voltage of 125V.
The MA1CAP1700 features an IP67 ingress protection rating, making it suitable for dust-tight and water-resistant applications.
The housing is made of durable zinc, and the contacts are gold-plated brass, providing corrosion resistance and reliability.
It operates effectively within a temperature range of -20°C to 130°C, suitable for various industrial environments.
This model has 17 contacts, designed for reliable electrical connection in industrial applications.
The MA1CAP1700 utilizes a crimp termination type, which facilitates easy cable assembly.
It features a threaded mating type, ensuring secure and precise connections.
The MA1CAP1700 has a shell size of 25.8 mm, classified as an M23 connector.
This circular connector is part of the MotionGrade series, known for its superior EMI/RFI shielding.
The connector has a straight orientation, allowing for straightforward installation and connection.
Yes, it is designed for industrial, manufacturing, automation, and motion control systems, making it ideal for harsh conditions.
This model is widely used for connecting sensors, actuators, and control devices in industrial environments.
