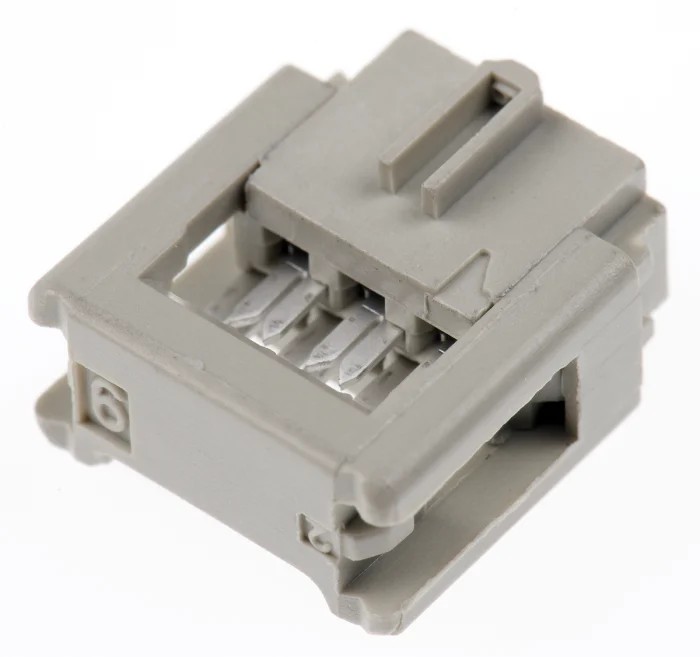

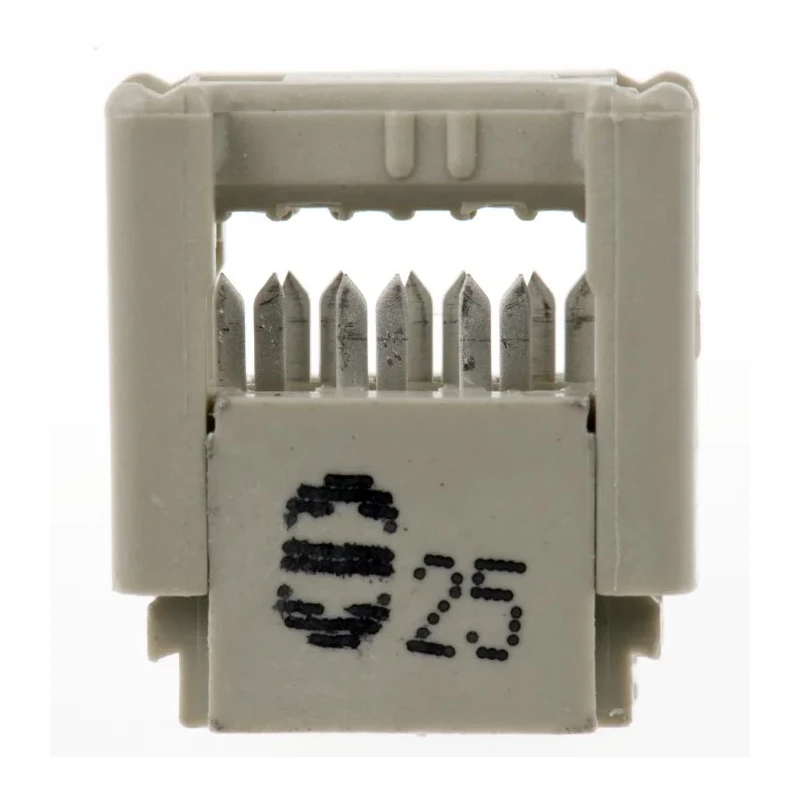

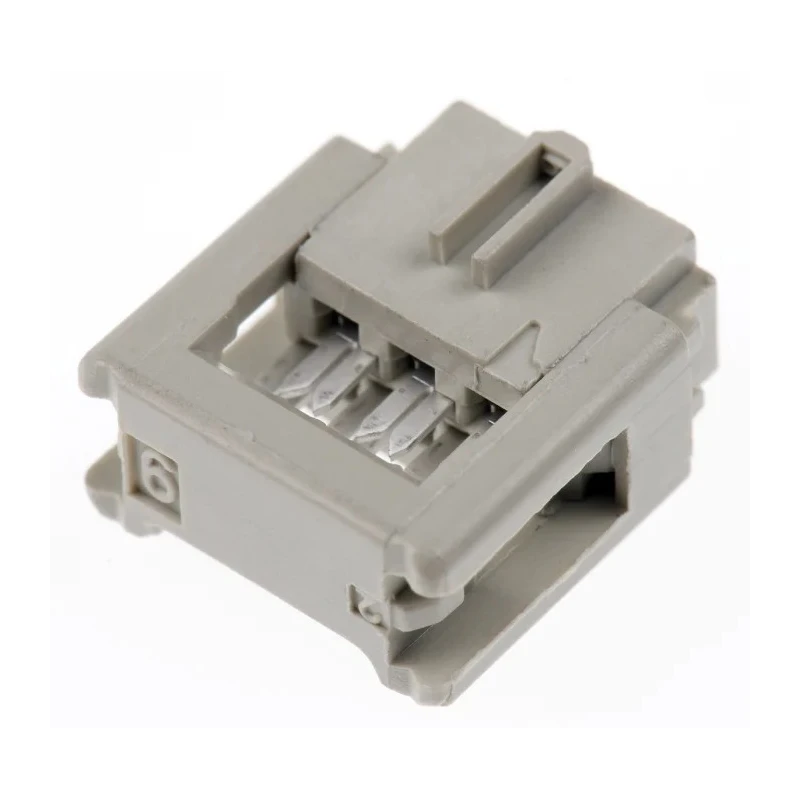

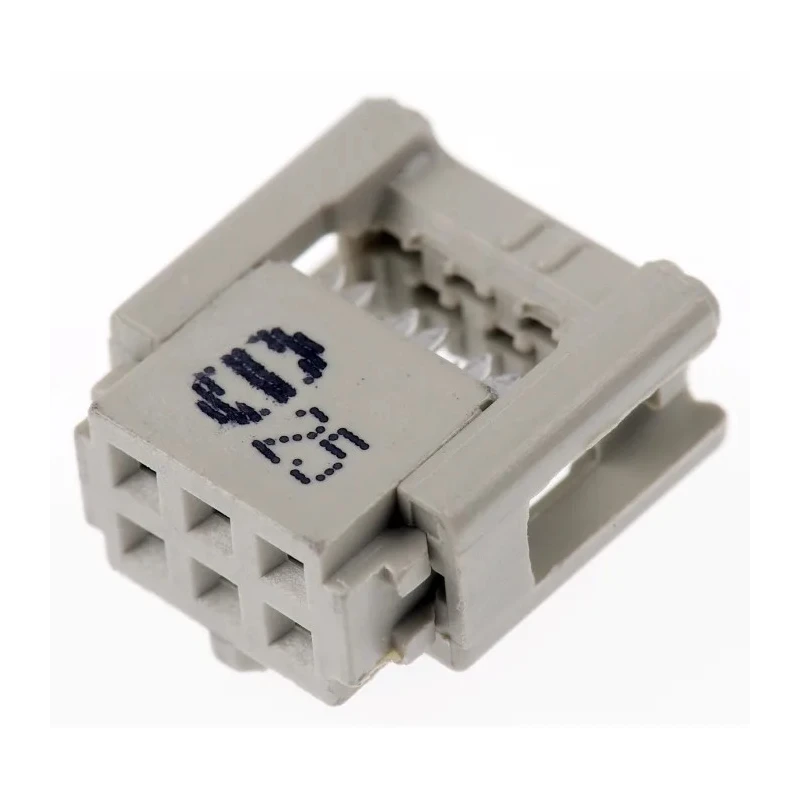

HARTING 6-Way IDC Connector Female for Cable, 2 Row, 320V AC, Gold Contact Plating, SEK 18 09185067803
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 320V ac |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| HARTING 6-Way IDC Connector Female for Cable, 2 RowBrand | HARTING |
Key Features
- Features 6 contacts arranged in 2 rows for cable mounting.
- Rated for 320V AC voltage and 1A current for safe operation.
- Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
- Terminated via Insulation Displacement Contact (IDC) for secure cable connections.
- Shrouded female connector with right angle orientation for compact setups.
- Housing made of durable Polybutylene Terephthalate (PBT) material.
- Operates reliably from -55°C to 125°C temperature range.
- Part of the SEK 18 series with central polarization for correct mating.
Product Description
HARTING 09185067803 is a 6-way female IDC connector designed for cable mounting with dual rows of contacts, suitable for electronic and electrical applications requiring compact and reliable interconnect solutions. It supports a voltage of 320V AC and current of 1A, accommodating moderate electrical loads.
This connector features gold-plated copper alloy contacts which provide excellent conductivity and resistance against corrosion. The shrouded design and right angle orientation contribute to securing the connector in constrained spaces while protecting contacts.
The housing material is Polybutylene Terephthalate, offering mechanical strength and thermal resistance withstanding operating temperatures from -55°C to 125°C. The connector uses Insulation Displacement Contact (IDC) termination type ensuring fast and reliable cable connections.
Part of the SEK 18 series, these connectors include central polarization features that prevent incorrect mating and are available with up to 64 contacts in the series for various configurations.
This product is manufactured in Switzerland maintaining international quality and reliability standards. It finds application in industrial electronics, control systems, communications equipment, and other commercial electrical installations.
Features 6 contacts arranged in 2 rows for cable mounting. Rated for 320V AC voltage and 1A current for safe operation. Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance. Terminated via Insulation Displacement Contact (IDC) for secure cable connections.
Shrouded female connector with right angle orientation for compact setups. Housing made of durable Polybutylene Terephthalate (PBT) material. Operates reliably from -55°C to 125°C temperature range. Part of the SEK 18 series with central polarization for correct mating.
Manufactured in Switzerland with high-quality standards. Explore more IDC Connectors and related electronic components at EnvMart to optimize your industrial or laboratory projects with trusted quality HARTING products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 320V AC voltage, making it suitable for various electrical applications.
It supports a current capacity of 1A, allowing for moderate electrical loads in applications.
The housing is made of Polybutylene Terephthalate (PBT), and the contacts are gold-plated copper alloy, ensuring good conductivity and corrosion resistance.
It operates reliably within a temperature range of -55°C to 125°C, suitable for various environmental conditions.
This connector features 6 contacts arranged in 2 rows, designed for cable mounting.
It utilizes Insulation Displacement Contact (IDC) termination, which ensures secure and reliable cable connections.
This model has a right angle orientation, allowing for compact setups in constrained spaces.
The connector is shrouded, providing additional protection for the contacts and enhancing reliability.
It is part of the SEK 18 series, which includes features for central polarization to prevent incorrect mating.
This product is manufactured in Switzerland, adhering to international quality standards.
It is suitable for use in industrial electronics, control systems, communications equipment, and other commercial electrical installations.
