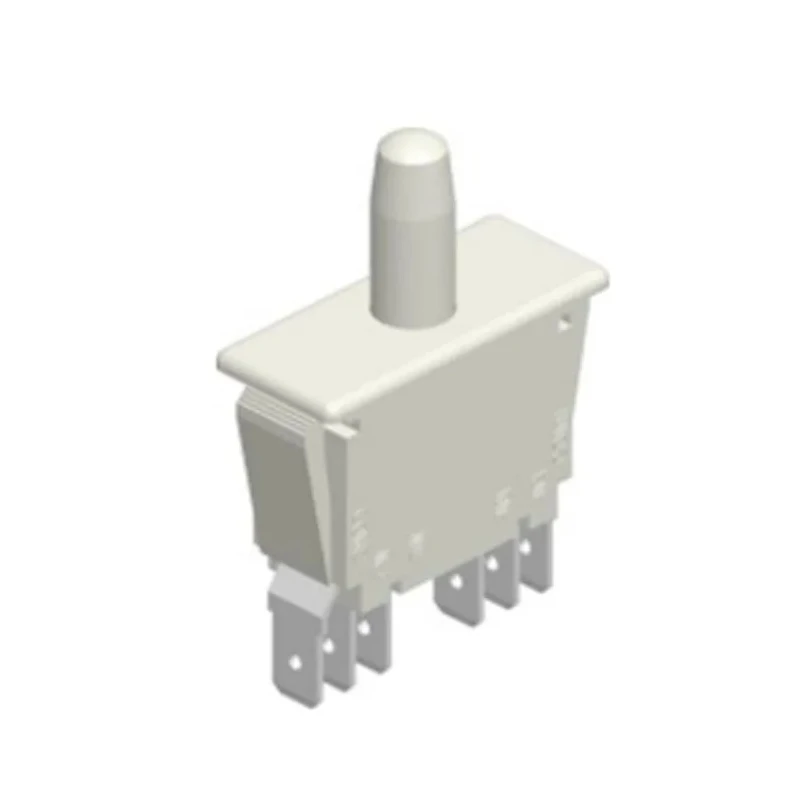

RS Pro HY69 Series DPDT Push Button Switch, On-On Latching Action, Panel Mount, 36 x 13.3 mm Cutout, IP68, 36 V dc 250 V ac

RS Pro HY69 Series DPDT Push Button Switch is engineered for industrial and commercial applications requiring dependable panel-mounted control switches. This push button switch features a durable On-On latching mechanism that toggles electrical circuits with a robust double pole double throw configuration. It is ideal for use in control panels and machinery where reliable switching is essential.

The switch requires a precise panel cutout measuring 36 x 13.3 mm to facilitate seamless mounting. It supports electrical contacts at 36 V dc and 250 V ac voltages, handling a current rating of up to 16A, making it suitable for demanding electrical environments.

The IP68 ingress protection rating certifies that the switch is fully dust-tight and protected against continuous immersion in water, ensuring longevity even in harsh industrial settings. Operating temperature ranges from -35°C to a maximum of 85°C, accommodating varied environmental conditions.

The round actuator style provides ergonomic and reliable manual activation with a maximum operating force of 5N. Terminal connections use 6.3mm solder tabs ensuring secure and efficient wiring assembly.

This RS Pro switch is compliant with EN61058 standards and UL approved, upholding quality and safety requisites needed for industrial automation and electrical installations. Typical applications include industrial machinery control panels, automation systems, and robust electrical switching tasks.

The switch features a double pole double throw (DPDT) configuration for versatile circuit control. It provides a panel cutout size of 36 x 13.3 mm compatible with standard installations. Rated for 36 V dc and 250 V ac contact voltage, supporting up to 16A current for robust performance.

The switch is IP68 rated, ensuring protection against dust and water ingress in harsh environments. Its actuator has a round style with a maximum operating temperature of 85°C and minimum of -35°C. The connection terminals are of solder type with 6.3mm tab fitting for secure electrical connections.

Designed to operate with a maximum force of 5N for ergonomic actuation. Compliant with EN61058 and UL approved standards delivering trustworthy quality. Explore more high-quality Push Button Switches and electrical components in the RS Pro range at EnvMart for industrial automation and electrical projects.
