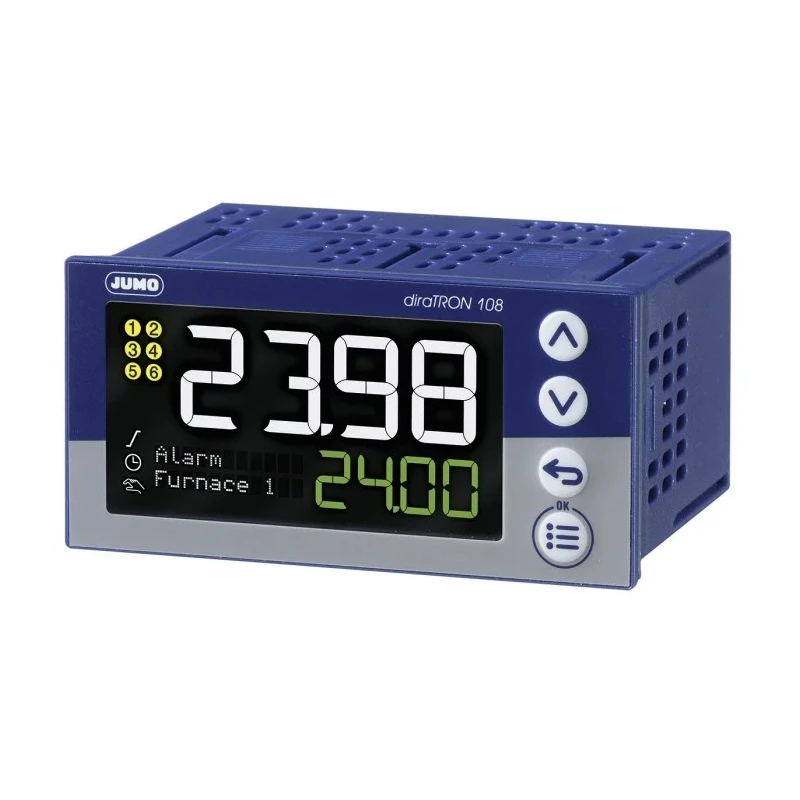

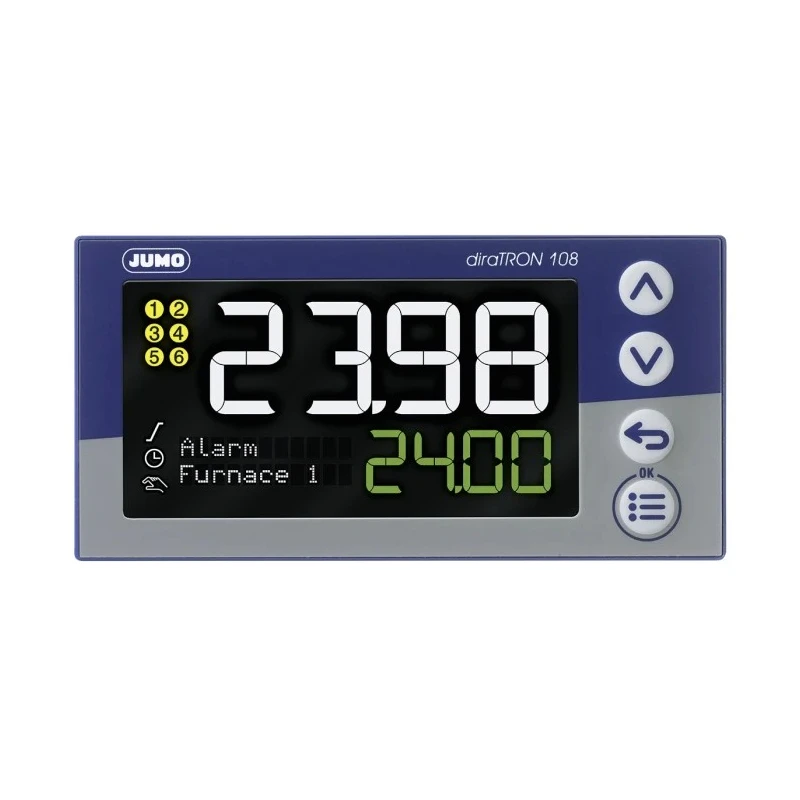

Jumo diraTRON Panel Mount PID Temperature Controller 3 Input, 3 Output 2 Relay, 240V AC 702113/8-0000-23/000

Jumo 702113/8-0000-23/000 is a high-performance diraTRON series panel mount PID Temperature Controller designed for industrial automation applications requiring precise control of temperature and related process variables.

This device features three analogue inputs and three outputs comprising two relay outputs ideal for managing heaters, alarms, or other external devices. It operates on a 240V AC power supply and comes equipped with a segmented display for clear and efficient parameter readouts.

The controller supports sophisticated functions such as autotuning, timer functions, ramp control, and setpoint changeover with four setpoint values, making it versatile for complex process controls involving temperature, pressure, or other variables.

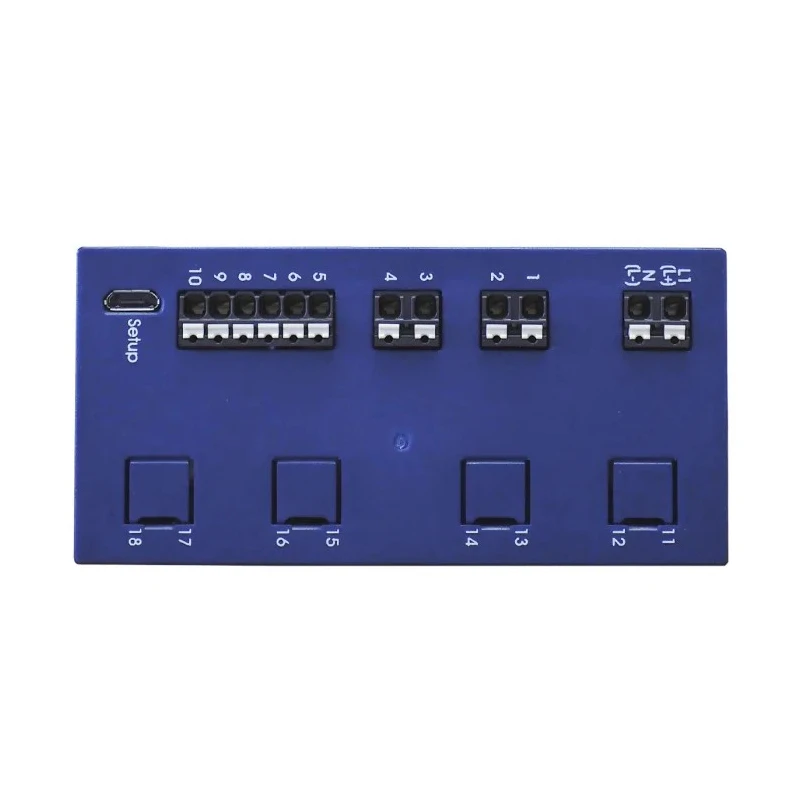

Connectivity is enhanced through an optional RS485 interface with Modbus RTU communications, facilitating integration into modern industrial control networks. The robust build includes spring cage terminals and an IP65/20 ingress protection rating ensuring durability in demanding environments.

Additional capabilities include structured text programming (ST code option) for customized applications and multiple monitoring functions to enhance safety and reliability in industrial processes.

Certified to international safety and quality standards such as EN 61010-1, CAN/CSA-22.2, DIN EN 60529, UL 61010-1, and others, this controller meets the rigorous demands of industrial automation worldwide.

Manufactured in Germany, it assures superior build quality and performance for applications in laboratory, manufacturing, HVAC, process control, and other industries requiring accurate temperature regulation.

The controller supports PID regulation for precise temperature control. Equipped with 3 analogue inputs and 3 outputs including 2 relays to manage processes. Features RS485 digital communication supporting Modbus RTU protocol.

Designed for panel mount installations with spring cage terminal connections. Operates reliably between -10°C to maximum 55°C. Has IP65 and IP20 ratings ensuring protection against dust and water ingress. Includes display with segmented type for clear parameter visualization.

Supports advanced functions like autotuning, timer, ramp, limit value monitoring, and mathematical logic operations. Manufactured in Germany ensuring high quality and standards compliance. Complies with multiple international standards including CAN/CSA, DIN EN, UL, and IEC standards.
