TDK-Lambda Switching Power Supply 1.005 kW 15V DC 67A Universal AC Input RWS1000B-15/S

Free Delivery in India | Lowest Global Shipping Charges

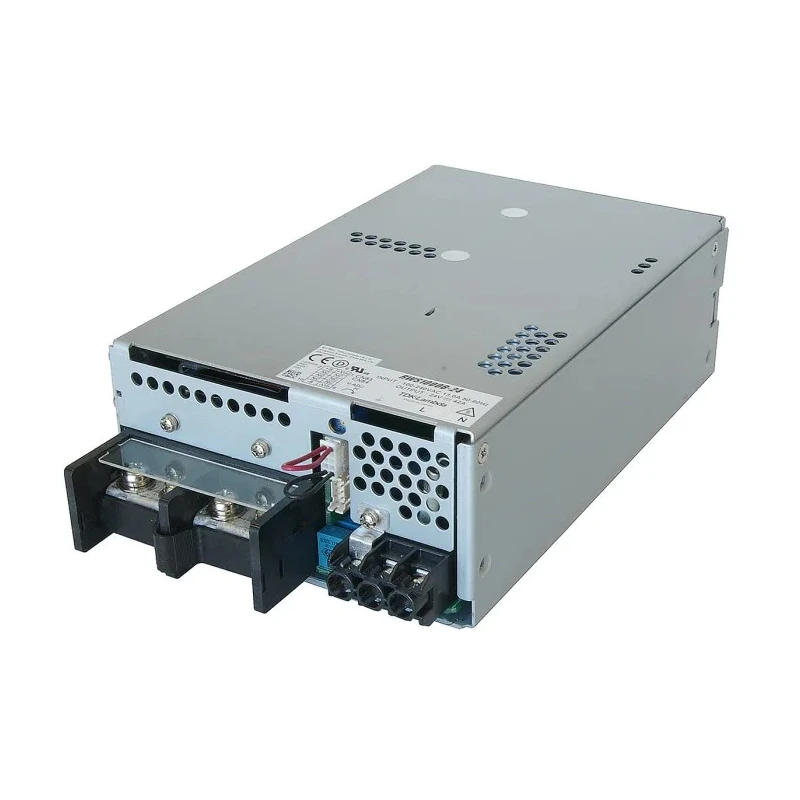

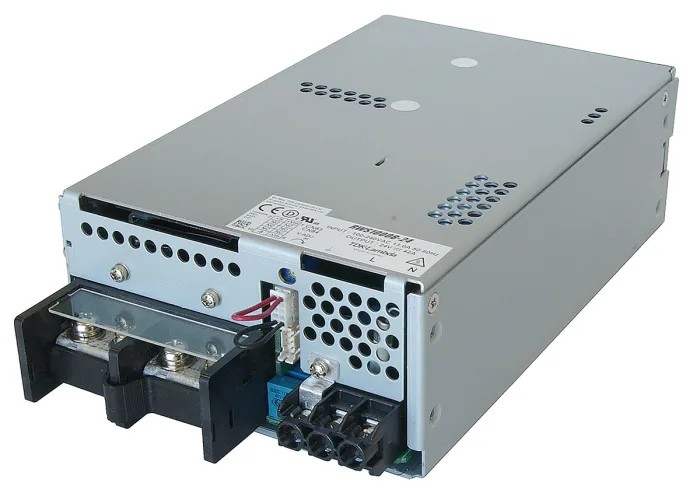

TDK-Lambda Switching Power Supply 1.005 kW 15V DC 67A Universal AC Input RWS1000B-15/S

Name: TDK-Lambda Switching Power Supply 1.005 kW 15V DC 67A Universal AC Input RWS1000B-15/S
Brand: TDK-Lambda
SKU: 101320



Category Switching Power Supplies Brand TDK-Lambda Condition New

Specifications

Country of Origin	Malaysia
Brand	TDK-Lambda
Power	1.005kW
Efficiency	85%
Length	198mm
Model	RWS1000B-15/S
Depth	63mm
Gross Weight	2kg
Width	127mm
Mount Type	Chassis
Series	RWS1000/1500-B
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	340, 265V dc
Maximum Output Voltage	15V dc
SMPS Output Current	67A
Minimum Input Voltage	85V ac

Key Features

Operates with universal AC input voltage from 85V to 265V AC and DC input up to 340V.
Compact design with chassis mount type measuring 198mm length, 127mm width, and 63mm depth.
Built to meet multiple industrial and medical applications requiring reliable power supply units.
Includes multiple global safety approvals and EMI/EMC standards compliance for robust operation.
Equipped with 85% efficiency ensuring energy saving during operation.
Capable of operating in temperatures ranging from -20°C to 60°C.
Comes with a 7-year warranty and a 10-year expected electrolyte capacitor lifetime.
Supports output voltage from 5V to 48V in the RWS-B series.

Product Description

TDK-Lambda RWS1000B-15/S switching power supply offers a reliable 1.005 kW power output with a 15V DC output voltage and 67A current capacity. It supports universal AC input voltages from 85 to 265 V AC and DC input voltages up to 340 V, making it suitable for diverse industrial and medical power supply requirements.

This chassis mount power supply features a compact size with dimensions of 198mm length, 127mm width, and 63mm depth and a weight of approximately 2 kg. Designed to meet rigorous safety and EMI/EMC standards such as EN 61000-4 series, IEC/UL/CSA/EN 62368-1, FCC, CE, and certified for medical applications, it ensures dependable performance in challenging environments.

It operates efficiently at 85% efficiency and can withstand operating temperatures from -20°C to 60°C. The product carries a 7-year warranty backed by a 10-year expected electrolyte capacitor lifetime, providing long-lasting durability.

Common application areas include general industrial use, broadcast systems, communications equipment, test and measurement devices, and LED lighting and signage. The RWS-B series power supplies offer various output voltages ranging from 5V to 48V to suit specific power needs.

Operates with universal AC input voltage from 85V to 265V AC and DC input up to 340V. Compact chassis mount with dimensions 198 x 127 x 63 mm and gross weight of 2 kg. Meets global safety and EMC standards including CE, FCC Class B, IEC/UL/CSA 62368-1.

High efficiency of 85% for energy saving operation. Wide operating temperature range from -20°C to 60°C. 7-year warranty and 10-year electrolyte capacitor lifetime. Suitable for industrial, medical, broadcast, communications, test & measurement, and LED signage applications.

Supports single output of 15V DC at 67A current. Explore more high quality Switching Power Supplies and related accessories at EnvMart, trusted by professionals for industrial and commercial applications.
