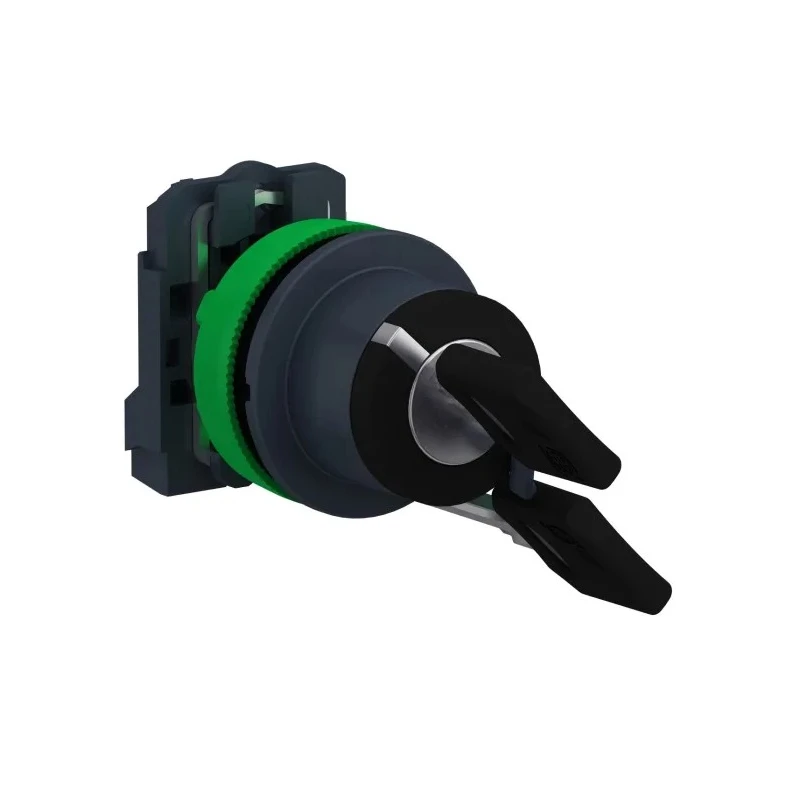

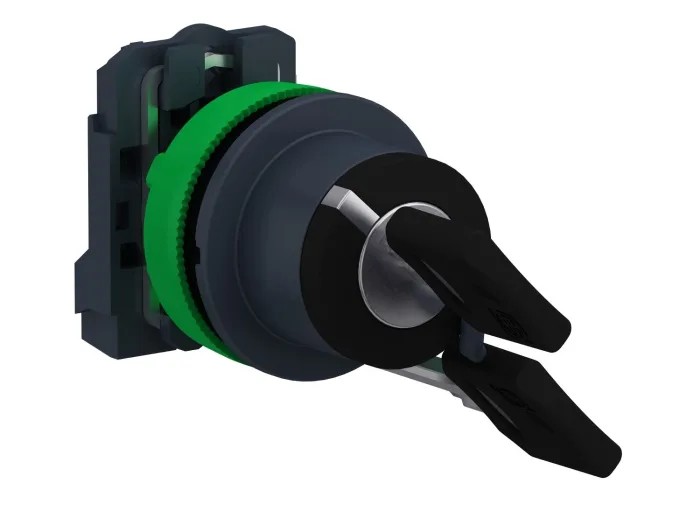

Schneider Electric Key Switch IP69K IP66 IP69 IP67, SPST 2-Way Ronis 455-Key XB5FG41
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Model | XB5FG41 |
| IP Rating | IP69K, IP66, IP69, IP67 |
| Contact Material | Silver Alloy |
| Series | XB5 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Number of Positions | 2 |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switch Operation | Stay Put |
| Contact DC Voltage | 600V dc |
| Mechanical Life | 1000000Cycles |
| Contact AC Voltage | 600V ac |
| Better World Claim | Repairable by the End User |
| Key Type | Ronis, 455 |
| Bezel Shape | Round |
| Key Index Angle | 90° |
| Various types of connection are available | screw clamp, connector, Faston connector, spring terminal, or printed circuit board |
| General purpose offer covering all segments and applications | Industry |
| Ideal in extreme environments | food and beverage, marine, etc. Building and infrastructure |
Key Features
- Operates reliably from -40°C to 70°C temperature range.
- Mechanical life cycles up to 1,000,000 ensures long-lasting performance.
- Silver alloy contacts support up to 600V AC and DC voltages.
- Designed for high vibration resistance with shake-proof terminal screws.
- Flush mount version is stylish, easy to clean, and adaptable for multiple environments.
- Suitable for diverse industrial applications including packaging, material handling, and energy distribution.
- Ideal for extreme environments such as food and beverage sectors and marine installations.
- Flexible modular design enables quick installation and customization with various connection types available.
Product Description
Schneider Electric XB5FG41 is a robust key switch designed to meet demanding industrial and infrastructure needs. It carries protection ratings of IP69K, IP66, IP69, and IP67, providing superior resistance to dust, water jets, and immersion, which makes it ideal for extreme environments such as food processing, marine, and energy distribution.
The key switch features a SPST 2-way contact configuration with a stay-put switch operation and a 90° key index angle. The Ronis 455 key type ensures secure and precise switching actions. Terminals use screw connections, complemented by shake-proof terminal screws to maintain high vibration resistance and reliability over time.
Constructed with silver alloy contacts able to handle 600V AC/DC, this switch is designed for both low and high power electrical applications. Its mechanical life of 1,000,000 cycles assures dependable operation under frequent use. Operating temperature ranges from -40°C to 70°C enable performance in harsh climates and industrial conditions.
The modular design allows various connection options including screw clamp, connector, Faston connector, spring terminal, or printed circuit board for enhanced flexibility in mounting. The product is part of the XB5 series and comes from France, reflecting high manufacturing standards.
Applications cover a broad spectrum including industry, machines, packaging, material handling, pumping, building infrastructure, energy distribution panels, public works, restaurants, commercial buildings, and airports. The flush mount version is both stylish and easy to clean, supporting hygienic environments.
Operates reliably across a broad temperature range from -40°C to 70°C. Offers high chemical robustness to withstand solvents, detergents, and cutting oils. Easy and rapid installation with modular and customizable accessory options.
Durable silver alloy contacts rated for 600V AC/DC voltages. Designed for use in extreme environments such as food and beverage industries and marine applications.
Choose Schneider Electric XB5FG41 for a high-performance Key Switch solution tailored to industrial, commercial, and extreme environment applications. Explore more products in the Switches & Sockets category on EnvMart to find complementary components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably within a temperature range of -40°C to 70°C.
The mechanical life of this key switch is rated at 1,000,000 cycles, ensuring long-lasting performance under frequent use.
It features a SPST (Single Pole Single Throw) 2-way contact configuration, allowing for straightforward on/off operation.
The contacts are rated for both AC and DC voltages up to 600V, making them suitable for various electrical applications.
This model supports various connection types including screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
The key switch has an IP rating of IP69K, IP66, IP69, and IP67, providing excellent protection against dust and water.
It is ideal for extreme environments such as food and beverage sectors, marine applications, and energy distribution.
The key type used is Ronis 455, which ensures secure and precise switching actions.
It features shake-proof terminal screws that enhance its resistance to vibration, ensuring reliable operation over time.
The bezel shape of this key switch is round, contributing to its stylish and easy-to-clean design.
It is suitable for a broad range of applications including industry, machines, packaging, material handling, and energy distribution panels.
This key switch is manufactured in France, reflecting high manufacturing standards.
