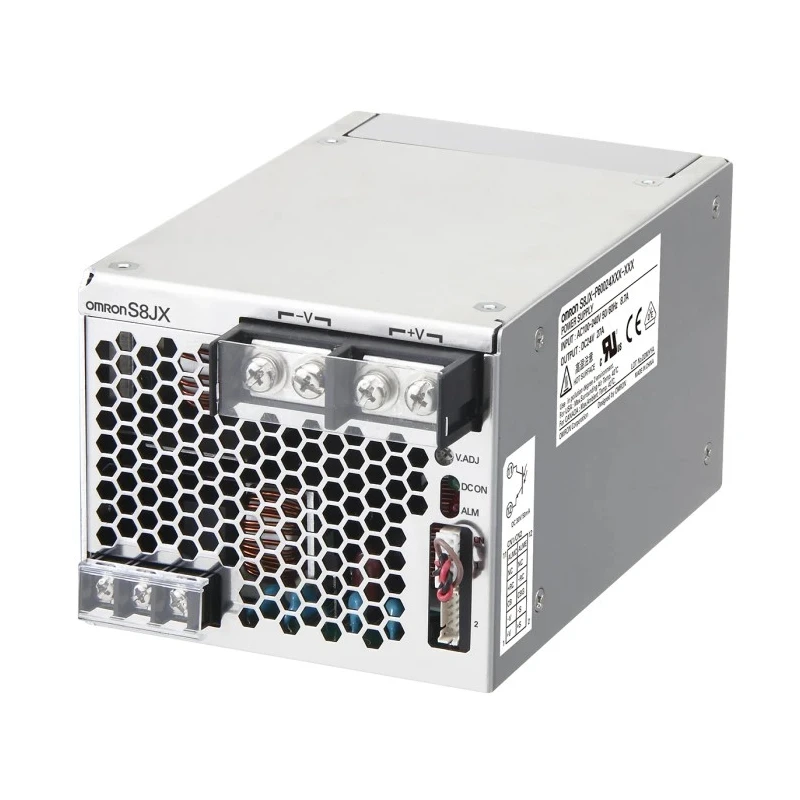

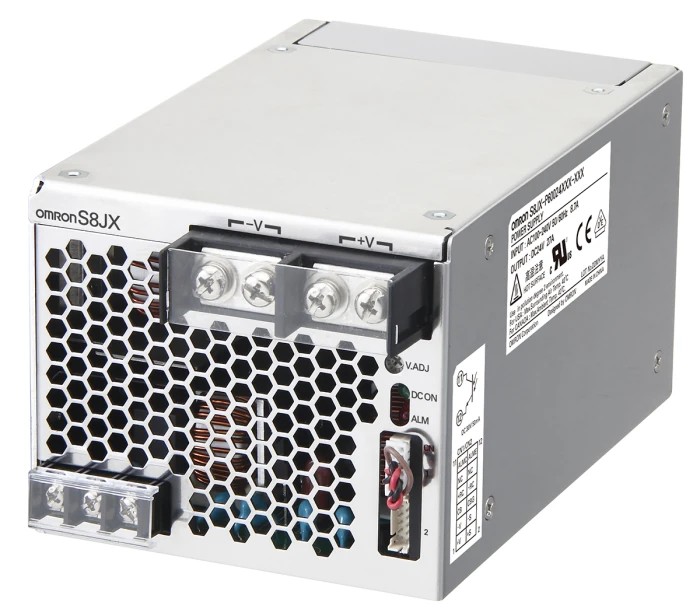

Omron Switching Power Supply DIN Rail Mount 600W 12V DC 53A 100-240V AC Input S8JX-P60012CD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Power | 600W |
| Efficiency | 76% |
| Model | S8JX-P60012CD |
| Depth | 249mm |
| Gross Weight | 1.8kg |
| Width | 116.6mm |
| Mount Type | DIN Rail |
| Series | S8JX-P |
| Output Current | 53A |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 240, 370V ac |
| Standards/Approvals | EN 6104, UL 609501, EN 50178, EN 609501 |
| Maximum Output Voltage | 12V dc |
| Minimum Input Voltage | 100V ac |
| Easy mounting | Front-mounting bracket type and DIN-Rail mounting type are included as standard with the product. Screw-mount at the top. (except 300-/600-W models) |
Key Features
- Provides a stable 12V DC output voltage with a maximum output current of 53A.
- Operates efficiently at 76% efficiency, supporting input voltages from 100V to 240V AC with extended DC input range up to 370V DC.
- Compact DIN Rail mounting type with included front-mounting bracket for easy installation.
- Wide operating temperature range from -20°C to 80°C suitable for harsh environments.
- Built-in fan for cooling and supports remote control and parallel operation functionalities.
- Complies with safety standards including EN 6104, UL 609501, EN 50178, and EN 609501.
- Does not include hazardous area certification, intended for standard industrial environments.
Product Description
Omron S8JX-P60012CD Switching Power Supply is a high-quality DIN Rail mount power supply offering 600W of power with a stable 12V DC output and 53A current suitable for various industrial, automation, and electronic applications.
This power supply supports universal AC input voltage ranging from 100V to 240V AC and an extended DC input voltage range up to 370V DC, allowing flexible power sourcing options. Its efficient design with 76% efficiency and an integrated cooling fan ensures reliable performance under continuous operation within ambient temperatures from -20°C to 80°C.
The unit features a compact design with a depth of 249mm and a width of 116.6mm, making it well suited for DIN Rail mounting with included front-mounting brackets. The product supports advanced functionalities such as remote sensing, remote control, and parallel operation capabilities to enhance system integration and scalability.
It complies with multiple international safety and performance standards including EN 6104, UL 609501, EN 50178, and EN 609501, providing confidence in product safety and operational reliability. While it lacks hazardous area certification, it is designed robustly for standard industrial environments.
The power supply comes factory new and is made in China. It weighs approximately 1.8 kg, facilitating easy installation and maintenance. Provides a stable 12V DC output voltage with a maximum output current of 53A. Operates efficiently at 76% efficiency, supporting input voltages from 100V to 240V AC with extended DC input range up to 370V DC.
Compact DIN Rail mounting type with included front-mounting bracket for easy installation. Wide operating temperature range from -20°C to 80°C suitable for harsh environments. Built-in fan for cooling and supports remote control and parallel operation functionalities.
Complies with safety standards including EN 6104, UL 609501, EN 50178, and EN 609501. Dimensions are 249mm depth by 116.6mm width and weighs approximately 1.8 kg. Does not include hazardous area certification, intended for standard industrial environments.
This Omron switching power supply is ideal for industrial automation, manufacturing, control panels, and electronic manufacturing sectors requiring reliable DC power with DIN Rail modularity. Explore more products in the Switching Power Supplies category at EnvMart to find complementary power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 53A.
It supports an input voltage range from 100V to 240V AC, with an extended DC input range up to 370V DC.
This power supply operates with an efficiency of 76%.
The dimensions are 249mm in depth and 116.6mm in width.
It operates within a temperature range of -20°C to 80°C.
Yes, it includes a front-mounting bracket and is designed for DIN Rail mounting.
It complies with several safety standards including EN 6104, UL 609501, EN 50178, and EN 609501.
The weight of this unit is approximately 1.8 kg.
It supports remote sensing, remote control, and parallel operation capabilities.
This power supply is manufactured in China.
This model has one output.
