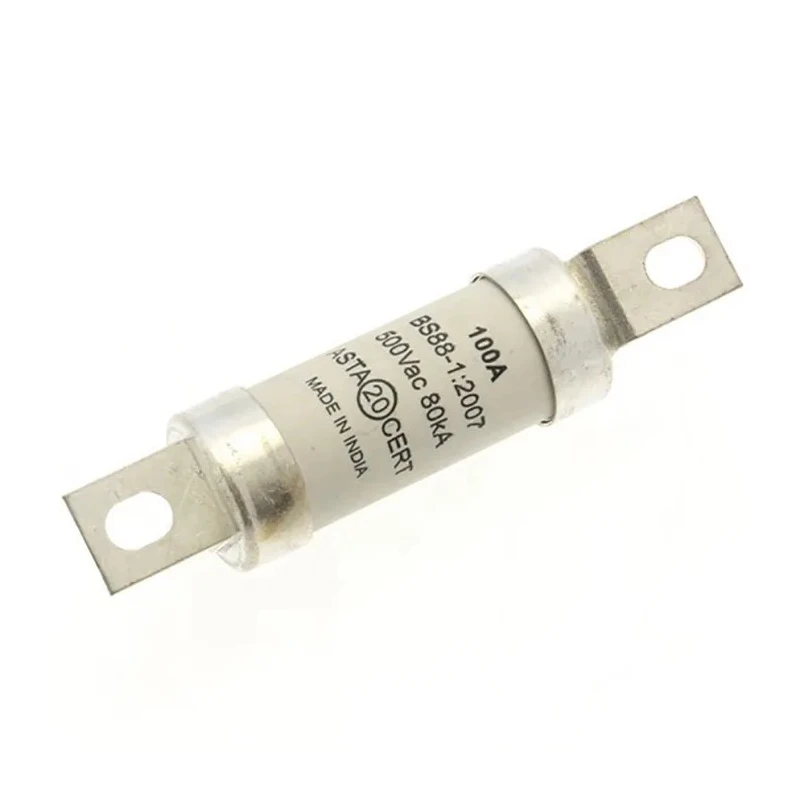

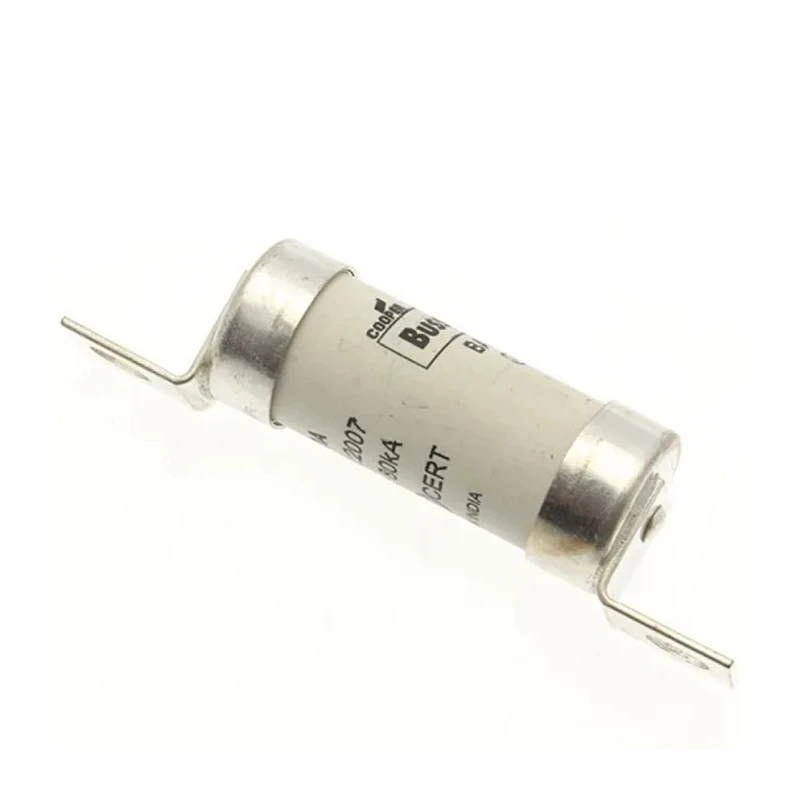

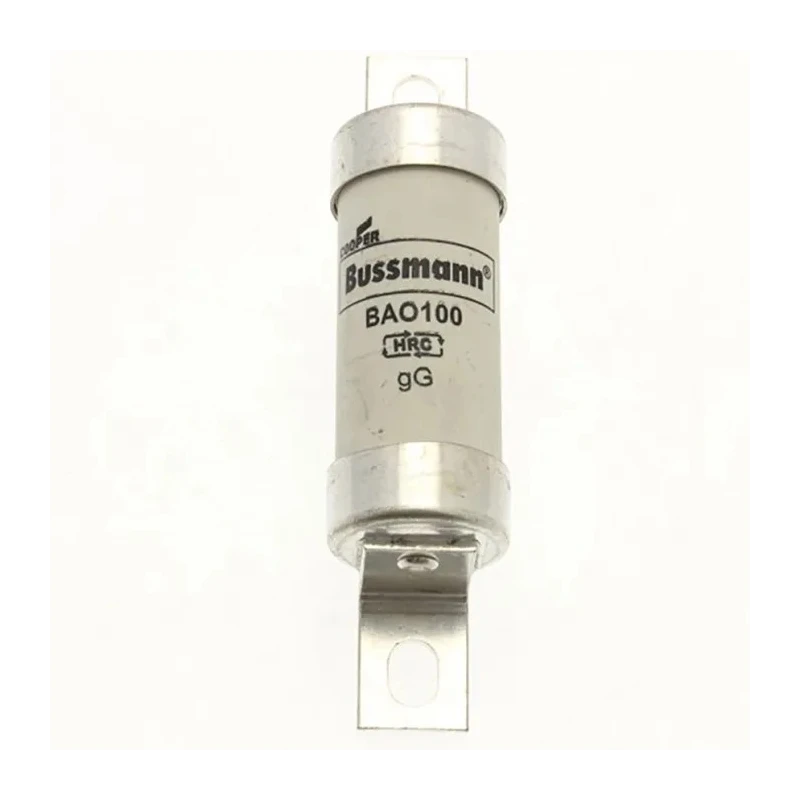

Eaton 100A Bolted Tag Fuse A3 500V AC, High Rupture Capacity, 73 mm Fixing Centres BAO100
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V ac |
| Diameter | 21mm |
| Brand | Eaton |
| Height | 22.3mm |
| Length | 54mm |
| Model | BAO100 |
| Width | 21mm |
| Overall Length | 87mm |
| Current Rating | 100A |
| Series | BAO |
| Standards/Approvals | RoHS, CE, IEC 60269 |
| Fuse Size | A3 |
| Fixing Centres | 73 mm |
| Tag Width | 13mm |
| Tag Orientation | Offset |
Key Features
- Rated for 100 amperes current and 500 volts AC operation.
- Designed with A3 fuse size and 73 mm fixing centres for standard installations.
- Features offset tag orientation and 13 mm tag width for secure mounting.
- Constructed to IEC 60269 standard and complies with RoHS and CE certifications.
- Overall length of 87 mm and diameter of 21 mm ensures compact fuse fitting.
- High rupture capacity provides reliable protection for low voltage fuse links.
Product Description
Eaton BAO100 bolted tag fuse is a high-quality fuse designed for low voltage (LV) electrical circuit protection with a nominal current rating of 100 amperes and rated voltage of 500 volts AC. This A3 size fuse features a high rupture capacity (HRC) suitable for industrial, manufacturing, electrical automation, and commercial applications requiring reliable circuit interruption and safety compliance.
The fuse is built to conform with international standards IEC 60269, RoHS, and CE, assuring environmental compliance and performance consistency. Its 73 mm fixing centres and offset tag orientation allow easy installation and secure mount on fuse bases. The 13 mm tag width and overall length of 87 mm with 21 mm diameter make it compatible with a wide range of electrical panels and switchgear.
This Eaton bolted tag fuse is part of the BAO series, known for durability and precision in overcurrent interruption. It effectively protects circuits against short-circuits and overloads by safely interrupting fault currents, thus minimizing equipment damage and enhancing user safety.
The fuse-link construction ensures gL/gG characteristic performance, making it suitable for general purpose protection of electrical circuits in diverse industrial environments such as manufacturing plants, electrical distribution, HVAC systems, water treatment facilities, and commercial infrastructure.
Made in India, this product embodies Eaton’s legacy and commitment to electrical safety and reliability, offering customers a trusted solution for fuse applications requiring 100A rating at 500V AC.
Rated for 100 amperes current and 500 volts AC operation. Designed with A3 fuse size and 73 mm fixing centres for standard installations. Features offset tag orientation and 13 mm tag width for secure mounting. Constructed to IEC 60269 standard and complies with RoHS and CE certifications.
Overall length of 87 mm and diameter of 21 mm ensures compact fuse fitting. High rupture capacity provides reliable protection for low voltage fuse links. Explore more electrical protection components and Eaton products in the Circuit Breakers and Fuse category on EnvMart for your industrial, commercial, and automation needs.
Explore more products in our Tag Fuses category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton BAO100 bolted tag fuse has a current rating of 100 amperes.
This model is rated for 500 volts AC operation.
The Eaton BAO100 is designed with an A3 fuse size.
It features 73 mm fixing centres for standard installations.
The overall length of the fuse is 87 mm, and its diameter is 21 mm.
The tag width is 13 mm, and it has an offset tag orientation for secure mounting.
This fuse is constructed to comply with IEC 60269 standards and is RoHS and CE certified.
It is suitable for industrial, manufacturing, electrical automation, and commercial applications requiring reliable circuit interruption.
The Eaton BAO100 fuse is made in India.
The height of the Eaton BAO100 fuse is 22.3 mm.
The high rupture capacity provides reliable protection for low voltage fuse links, effectively interrupting fault currents.
This model is part of the BAO series of fuses from Eaton.
