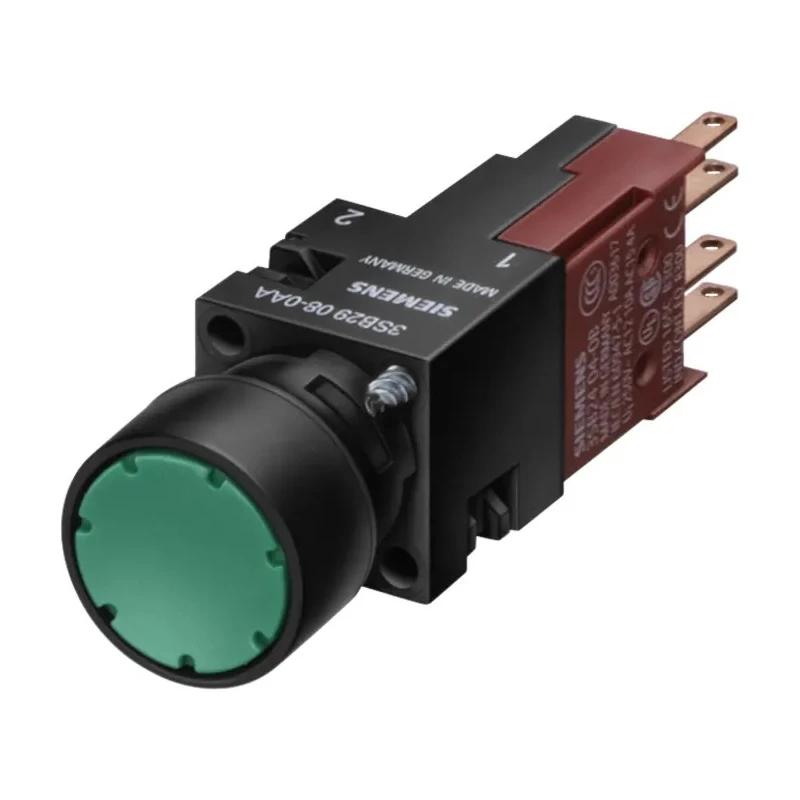

Siemens Illuminated Push Button Switch Momentary Panel Mount 16 mm Cutout 1 NO/1 NC IP65 250V AC/DC
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Siemens |
| Model | IP65 |
| IP Rating | IP65 |
| Mount Type | Panel Mount |
| Series | 3SB2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Quick Connect |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Contact DC Voltage | 250V dc |
| Actuator Style | Round |
| Contact AC Voltage | 250V ac |
Key Features
- Designed with a red illuminated round actuator for clear status indication.
- Operates momentarily with 1 normally open and 1 normally closed contact configuration.
- Constructed for panel mounting with a standard 16 mm cutout size.
- Rated for IP65 ingress protection, ensuring resistance to dust and water jets.
- Supports contact voltages up to 250 V AC and 250 V DC.
- Quick connect terminal type enables fast and reliable wiring.
- Operates within temperature range from -25°C to 70°C for diverse environments.
- Complies with IEC and EN 60947-5-1 and 60947-5-5 standards for industrial use.
Product Description
Siemens 3SB2227-0AC01 Illuminated Push Button Switch is a high-quality electrical component designed for momentary control applications in industrial and automation environments. Featuring a round red illuminated actuator, it offers visual feedback during operation and is designed for panel mount installation with a 16 mm cutout, making it easy to integrate into control panels.
This switch includes a 1 normally open (NO) and 1 normally closed (NC) contact configuration, allowing flexible control circuit design. The switch is rated for both AC and DC voltages up to 250 V, making it suitable for a range of electrical systems. Its IP65 rating ensures robust protection against dust ingress and water jets, ideal for challenging industrial conditions.
With quick connect terminals, wiring is simplified, reducing installation time and improving reliability. The switch can operate safely in temperatures from -25°C to 70°C, supporting use in varied ambient conditions. Compliance with IEC 60947-5-1, EN 60947-5-1, IEC 60947-5-5, and EN 60947-5-5 standards confirms its suitability for professional industrial deployment.
Manufactured in the Czech Republic, this Siemens push button switch exemplifies precision and durability. It is widely used in industrial machinery control, manufacturing automation, electrical panels, and other control and signaling applications where reliable, illuminated push button control is required.
Red illuminated round actuator for clear operational feedback. Momentary switch operation with 1 NO and 1 NC contact block. Panel mount with standard 16 mm cutout size for easy installation. IP65 rated for protection against dust and water jets.
Supports contact voltages up to 250 V AC and DC. Quick connect terminals for streamlined wiring. Operating temperature range from -25°C to 70°C. Complies with IEC and EN 60947-5 series standards. Made in Czech Republic ensuring consistent quality.
This Siemens illuminated Push Button Switch is an excellent choice for electrical and automation system designers requiring a durable, reliable, and visually clear control interface. It fits well in industrial automation, manufacturing lines, HVAC control panels, and other sophisticated control environments.
Explore more Siemens electrical components and switches on EnvMart to complete your industrial automation projects with trusted, high-performance products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a contact configuration of 1 normally open (NO) and 1 normally closed (NC).
The maximum operating temperature for this switch is 70°C.
It has an IP65 rating, providing protection against dust and water jets.
The required panel cutout size for installation is 16 mm.
It supports contact voltages up to 250 V AC and 250 V DC.
This model uses quick connect terminals for simplified wiring.
The minimum operating temperature is -25°C.
The actuator color of this switch is red, providing clear operational feedback.
This switch operates as a momentary switch.
It complies with IEC 60947-5-1 and EN 60947-5-5 standards.
It is manufactured in the Czech Republic.
The actuator style is round.
