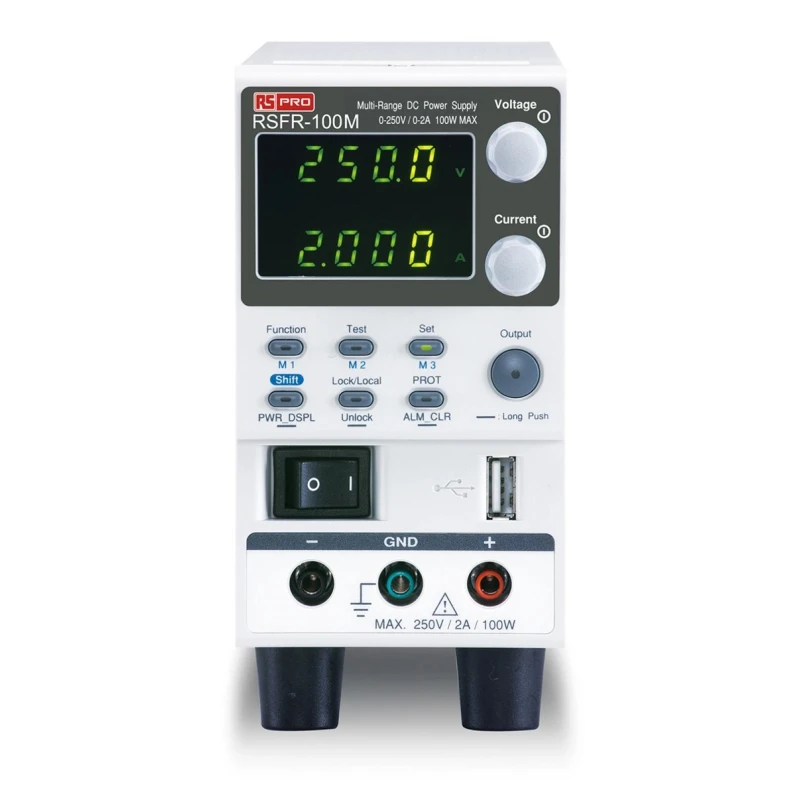

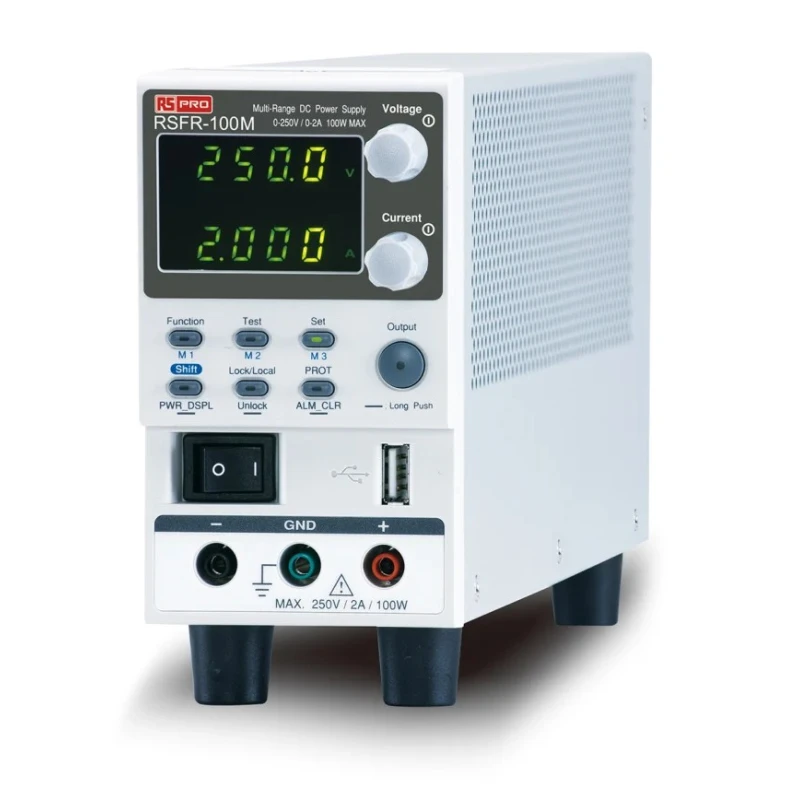

RS PRO Digital Bench Power Supply 5-Output 0 V to 250 V, 100 W, 2 A Max 180-4809

RS PRO 180-4809 is a digital bench power supply designed for professional and industrial applications, delivering a constant power output of 100 W across five outputs with voltages ranging from 0 V to 250 V. This model features a maximum output current of 2 A and operates within a temperature range from 0°C to 40°C, making it suitable for various laboratory, manufacturing, testing, and measurement environments.

The fanless design utilizes natural convection cooling for noiseless operation and prevents contaminant ingress, enhancing the reliability and longevity of the unit. The preset memory function allows users to save and recall frequently used settings quickly, improving efficiency in repeated test procedures.

Key functionalities include adjustable slew rates for voltage and current to meet specific test requirements and a bleeder circuit control for rapid discharge during automated testing cycles. The power supply offers multiple protection features such as overvoltage protection (OVP), overcurrent protection (OCP), AC power failure detection, and over-temperature protection (OTP) for safe and reliable operation.

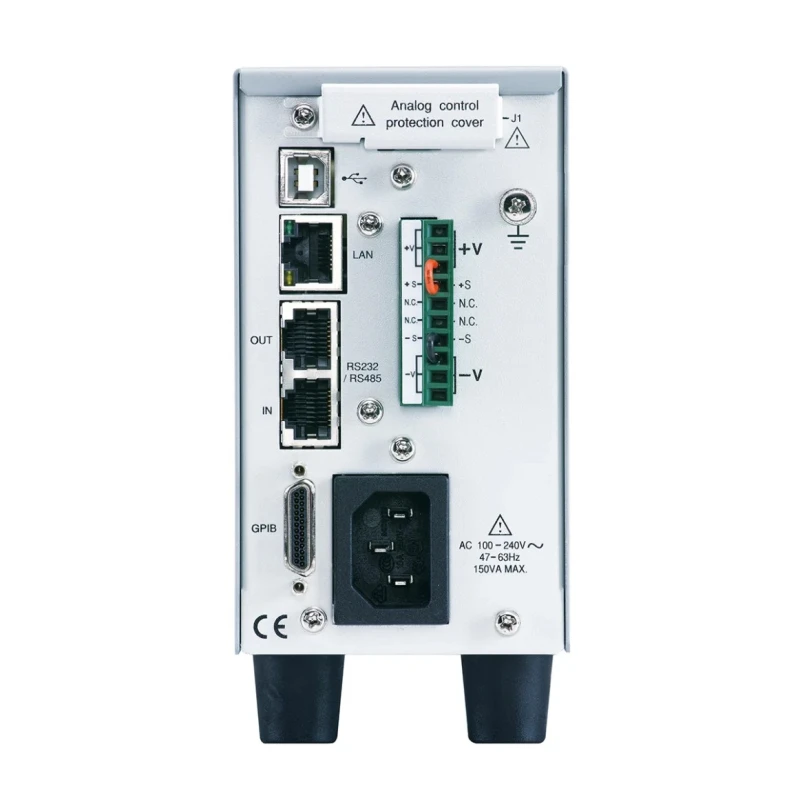

Connectivity is supported through built-in USB and RS-232/485 interfaces, with optional LAN and GPIB interfaces for integration into automated test systems. The unit features front and rear output terminals to facilitate quick lead changes and clean wiring in rack-mounted setups.

Additional advantages include the capability for remote sensing to compensate for voltage drops and a built-in web server that enables remote monitoring and control of output parameters, making it ideal for complex industrial and laboratory test setups.

With compact dimensions of 124 mm height, 70 mm width, and 300 mm depth, and compliance with RoHS standards, the RS PRO 180-4809 Digital Bench Power Supply combines precision, durability, and versatile connectivity options for professional bench power applications.

Set includes only the digital bench power supply unit. This product is made in Taiwan, Province Of China. Explore more industrial measuring and testing instruments by browsing the Bench Power Supply category at EnvMart. Offers precise digital output with a maximum current of 2 A.

Fanless natural convection cooling ensures silent operation and longer lifespan. Features preset memory function for frequently used settings. Includes protection mechanisms such as overvoltage, overcurrent, AC fail, and over temperature protection.

Equipped with USB and RS-232/485 interfaces with optional LAN and GPIB connectivity. Supports front and rear panel output terminals for flexible usage. Adjustable slew rate for voltage and current enhances test precision.

Built-in web server enables remote monitoring and control. Robust construction with RoHS compliance and industrial-grade design.
