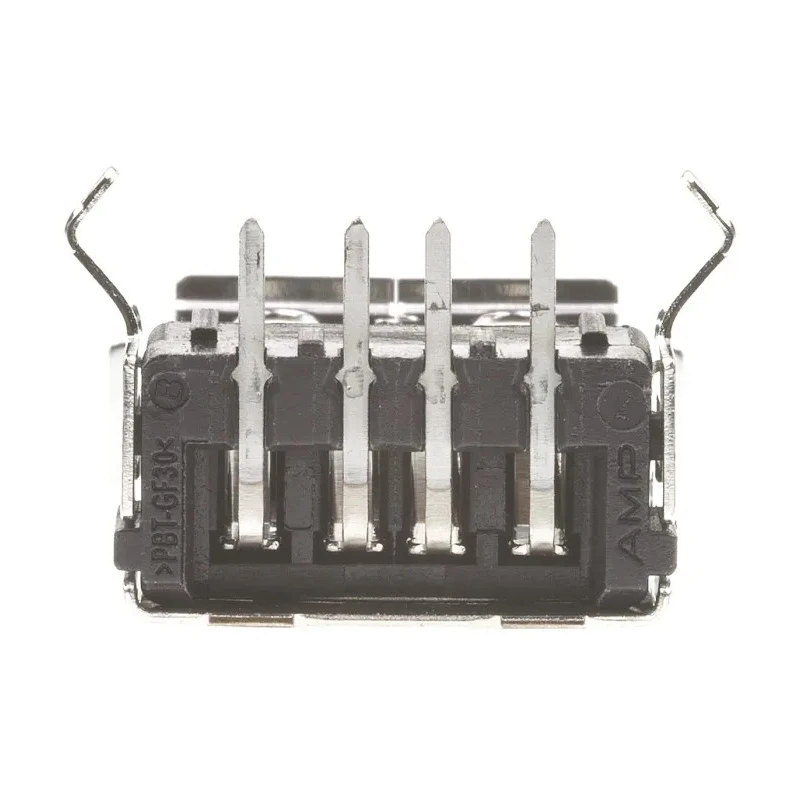

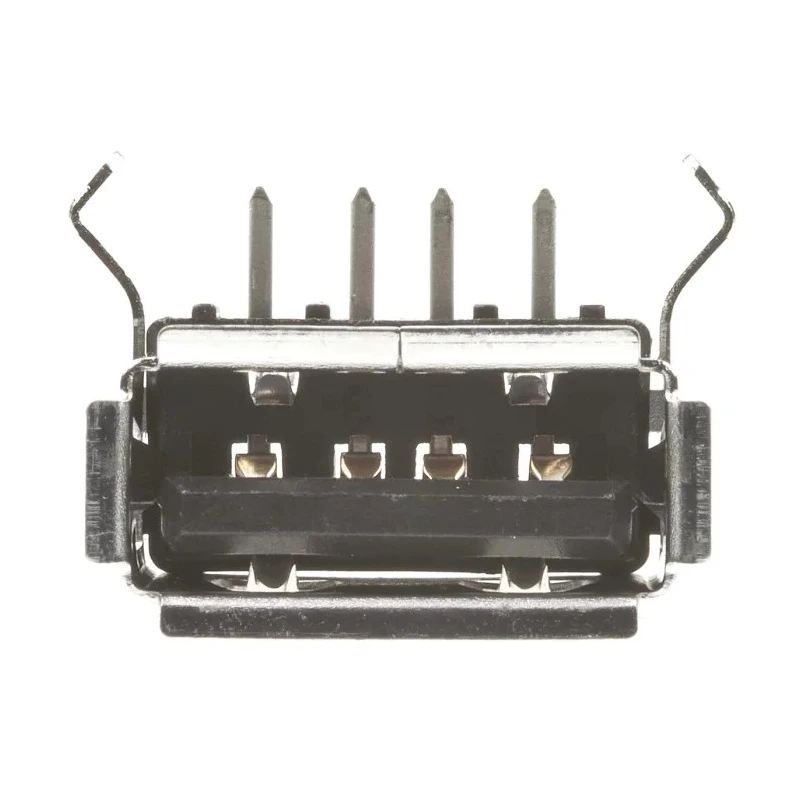

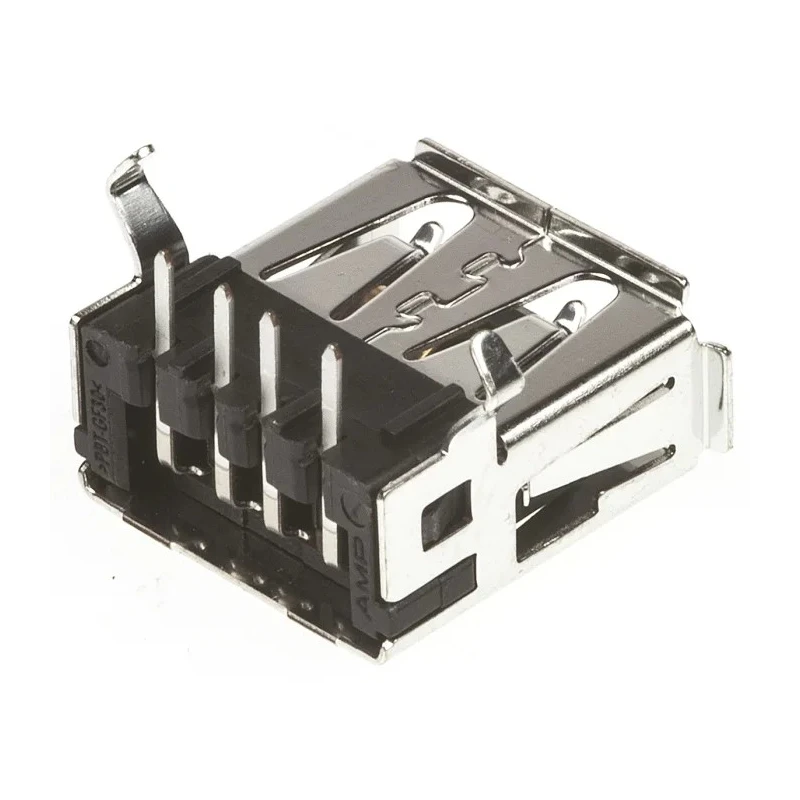

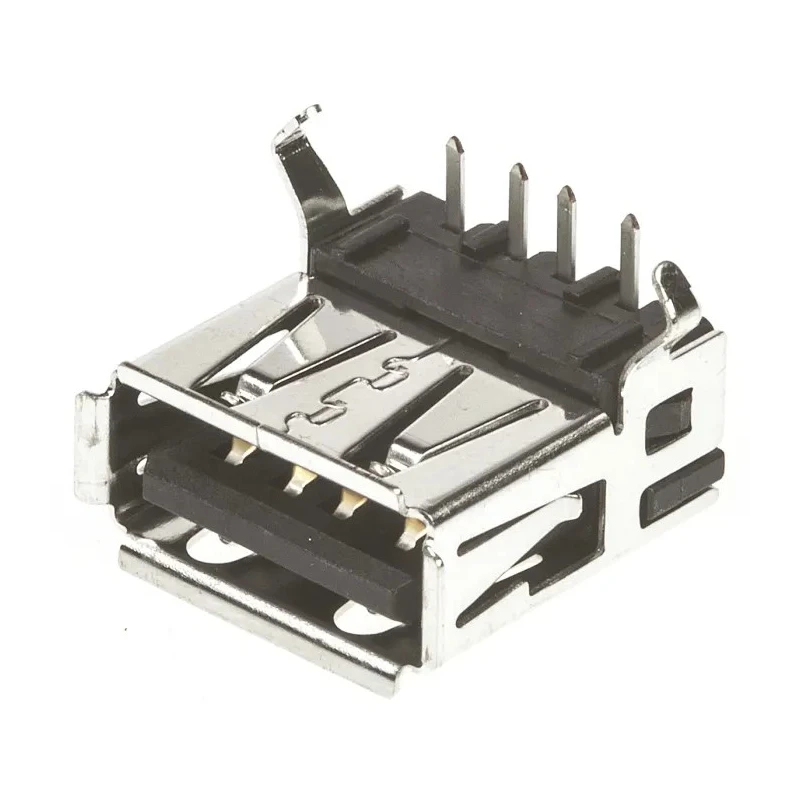

TE Connectivity Right Angle Through Hole Female USB Type A IP68 USB Connector USB 2.0 292303-1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Model | 292303-1 |
| IP Rating | IP68 |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | 2923 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| USB Type | USB Type A |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Complies with USB 2.0 specification for data transfer speeds up to 480 Mbps.
- Right angle orientation facilitates compact PCB design.
- Constructed with copper alloy contacts and glass filled thermoplastic housing.
- Rated for voltage up to 30V and current rating of 1A.
- IP68 rating for high protection against dust and water ingress.
- Operates reliably between -55°C to 85°C temperature range.
- Solder termination type ensures secure PCB mounting.
- Single port design suitable for machine vision, HMI, and industrial printers.
Product Description
TE Connectivity 292303-1 is a robust right angle, through hole female USB Type A connector compliant with USB 2.0 specifications. Designed for industrial and commercial electronic applications, this connector supports data transfer speeds up to 480 Mbps, ensuring reliable connectivity for devices requiring USB interfaces.
The connector features a durable construction with copper alloy contacts and a glass filled thermoplastic housing, providing mechanical strength and reliable electrical performance. It offers a voltage rating of 30V and a current rating of 1A, suitable for low-power USB applications.
Its IP68 ingress protection rating makes it ideal for harsh environments, safeguarding against dust and water penetration. The unit operates reliably within a wide temperature range from -55°C to 85°C, suited for demanding industrial and outdoor installations.
The right angle design optimizes PCB layout and facilitates compact device assemblies while the solder termination ensures a secure mounting to the board. An integrated locking mechanism provides a strong retention force of 40 Newtons, enhancing connection stability even in vibration-prone settings.
Typical applications include machine vision systems, human-machine interfaces (HMI), barcode readers, printers, and mass storage devices, where dependable USB connections are critical. Manufactured under the series 2923, this connector guarantees consistent quality and performance.
Being made in China, the product conforms to international standards but does not carry specific hazardous area or additional certifications. Complies with USB 2.0 specification for high speed data transfer. Right angle orientation for space-efficient PCB assembly.
Copper alloy contacts with glass filled thermoplastic housing. IP68 rated for exceptional dust and water resistance. Operation temperature range from -55°C to 85°C. Solder termination for secure PCB fitting. Integrated locking mechanism providing 40 N retention force.
Single port female USB Type A configuration. Explore more TE Connectivity USB Connectors for various industrial electronic applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports data transfer speeds up to 480 Mbps, complying with USB 2.0 specifications.
The connector is rated for a voltage of 30V and a current rating of 1A, suitable for low-power USB applications.
It has an IP68 rating, providing high protection against dust and water ingress, making it suitable for harsh environments.
This model operates reliably within a temperature range of -55°C to 85°C.
It features a solder termination type, ensuring a secure mounting to the PCB.
It is a single port design, specifically a female USB Type A connector.
The contacts are made of copper alloy, and the housing is constructed from glass filled thermoplastic, providing mechanical strength and reliability.
Typical applications include machine vision systems, human-machine interfaces (HMI), barcode readers, printers, and mass storage devices.
It features a right angle orientation, which facilitates compact PCB design and layout.
This model is part of the TE Connectivity series 2923.
Yes, it includes an integrated locking mechanism that provides a retention force of 40 Newtons, enhancing connection stability.
It is manufactured in China and conforms to international standards.
