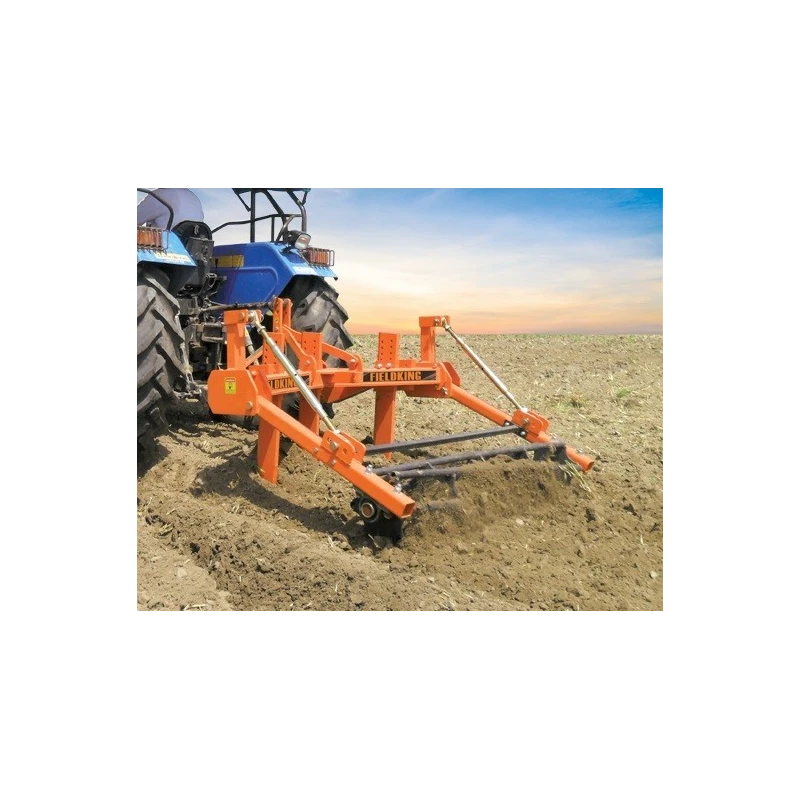

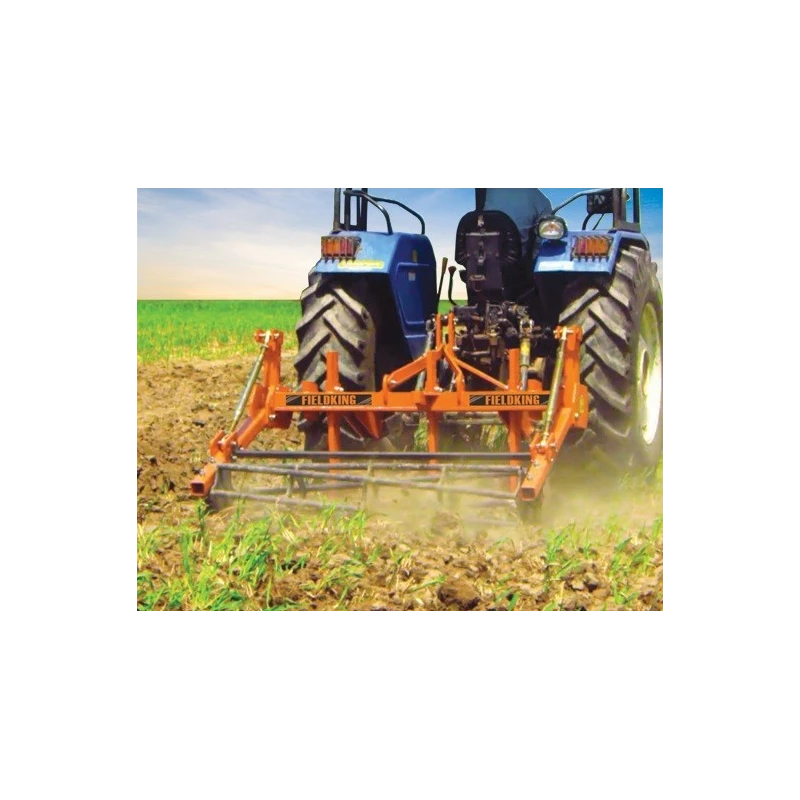

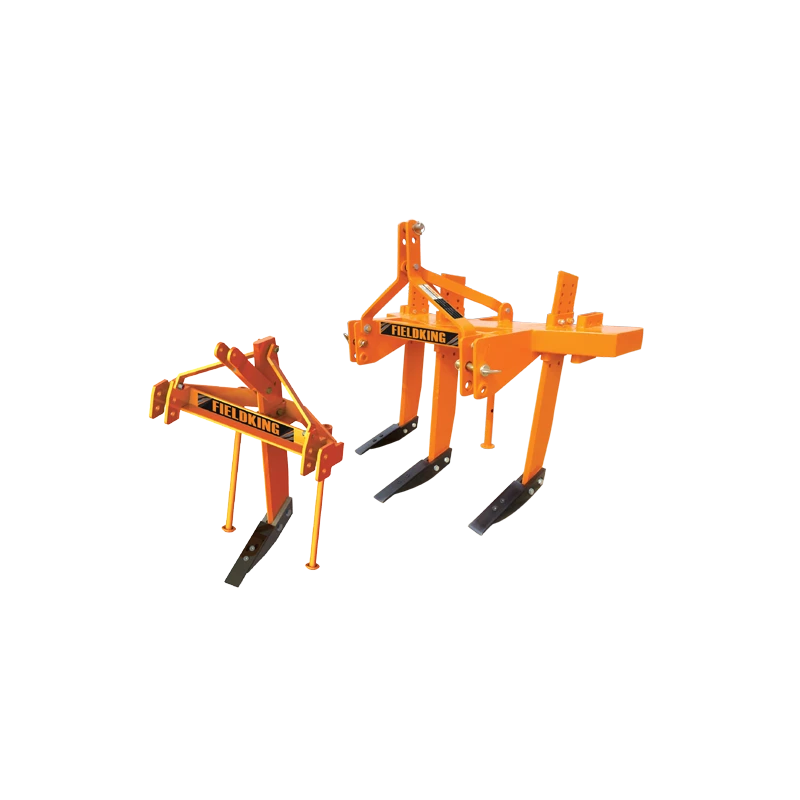

Sub Soiler 3 Tyne FKSS-3
Specifications
| Material | Mild Steel |
|---|---|
| Applications | Agriculture |
| Color | Orange |
| Model | FKSS-3 |
| Tractor Power (HP) | 80-95 |
| Tyne (mm/inch) | 150/6 x 25 mm(T) |
| Length (mm/inch) | 830/33 |
| Width (mm/inch) | 1520/60 |
| Tillage Width (mm/inch) | 1055/42 - 1284/51 |
| Height (mm/inch) | 1060/42 - 1370/54 |
| No. of Tyne | 3 |
| Crumbler (mm/inch) | 33.7/1.3 x 25 mm (T) Round Pipe |
| Crumbler Length (mm/inch) | 1530/60 |
| Tyne To Tyne Distance (mm/inch) | 465/18 - 576/23 |
| Working Depth(Max. mm/inch) | 550/22 |
| Weigth Without Crumbler (KG Approx.) | 280 |
| Weigth With Crumbler (KG Approx.) | 430 |
Key Features
- The sub soiler are deep tillage implements specially designed for breaking up hard pan layers and loosening the subsoil allowing better drainage, root growth and mineral osmosis.
- Optional wide range of roller/ crumbler available, which helps in breaking bigger lumps to smaller clods. Also it helps in depth control and steady run of the sub soiler.
Product Description
Sub Soiler, 3 Tyne, FKSS-3, A subsoiler is an agricultural implement used for deep tillage of the soil. It is designed to break up compacted soil layers and improve soil structure by loosening and aerating the subsoil. The subsoiler is typically used in areas where the soil has become compacted due to heavy machinery or livestock traffic, which can limit root growth and water infiltration.
- Adjustable depth & width of ploughing available for 2, 3 & 5 arm sub-soiler.
- Optional pipe layer attachment available for 1 arm sub soiler.
- Depth can be adjusted by top links.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum working depth of this model is 550 mm (22 inches).
The tillage width ranges from 1055 mm (42 inches) to 1284 mm (51 inches).
It is constructed from mild steel.
This model requires a tractor power of 80 to 95 HP.
The dimensions are as follows: length 830 mm (33 inches), width 1520 mm (60 inches), and height ranges from 1060 mm (42 inches) to 1370 mm (54 inches).
This sub soiler is equipped with 3 tynes.
The distance between tynes ranges from 465 mm (18 inches) to 576 mm (23 inches).
The approximate weight without the crumbler is 280 kg.
An optional pipe layer attachment is available for the 1 arm sub soiler.
The crumbler size is 33.7 mm (1.3 inches) in diameter and 25 mm (T) in thickness.
This sub soiler is designed for agricultural applications, specifically for deep tillage.
Yes, the depth of ploughing can be adjusted using the top links.
